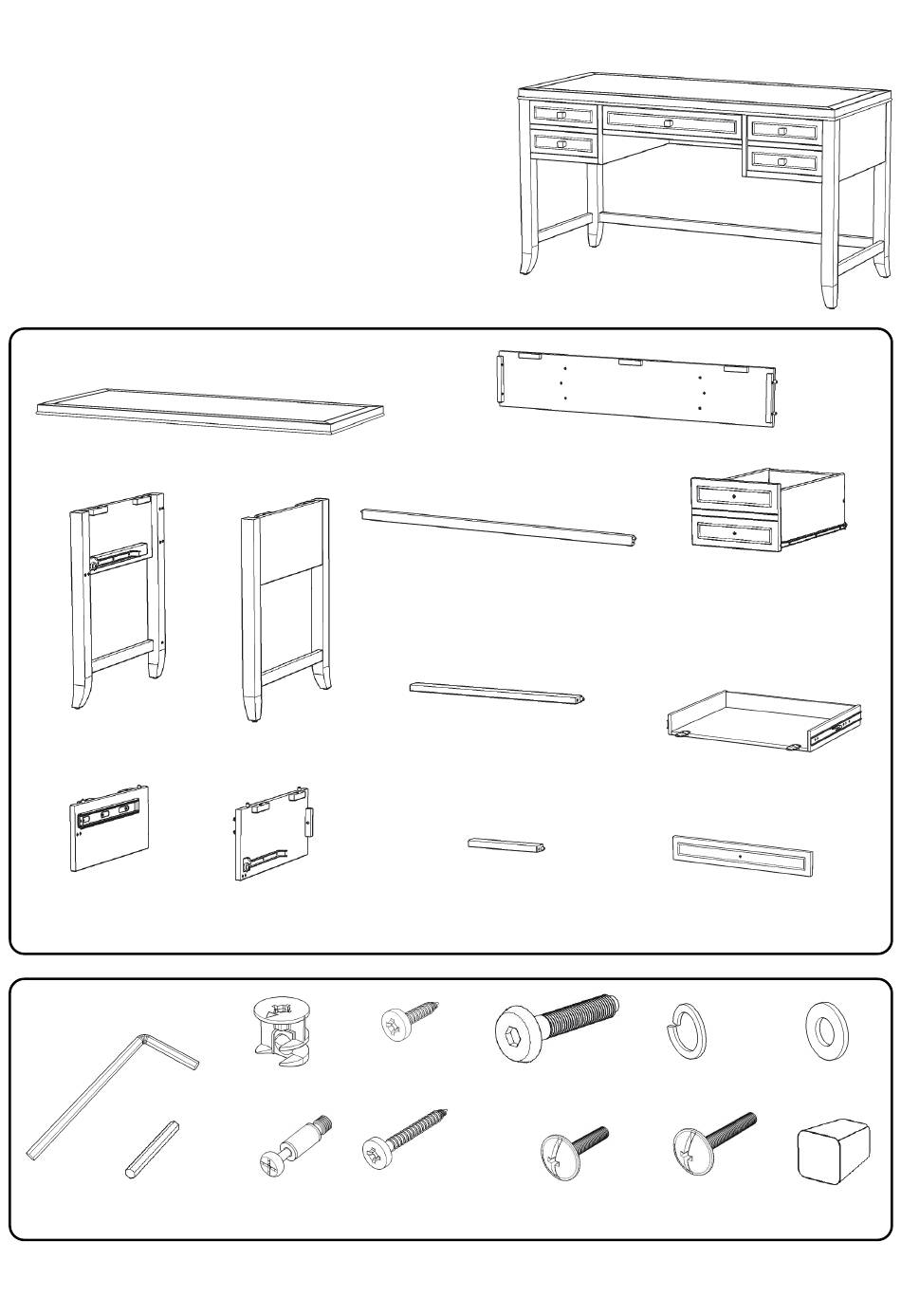

Executive Desk IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List Back Panel 1 pc.
Page 2
Assembly Instructions 2/5 IMPORTANT Use a soft cloth between these parts and the floor. Do not use power tools above 8 volts to assemble. Do not tighten all the bolts until each part is properly assembled. The unit must be level to work properly.
Page 3
Assembly Instructions 3/5 STEP 3 Head Cap Bolt Spring Washer Flat Washer Place Top (A) upside down on a soft cloth. Attach unit to Top (A) with Flat Washers, Spring Washers and Head Cap Bolts. Flat Washer Spring Washer Head Cap Bolt Cam Lock STEP 4 Attach Front Stretchers (I) to unit with Cam Locks.
Page 4
Assembly Instructions 4/5 STEP 5 Flat Washer Wood Screw (long) Spring Washer Attach Back Stretcher (G) to unit Head Cap Bolt with Wood Screw (long). (See Figure 4) Attach Side Frame (B) to unit with Flat Washers, Spring Washers, Head Cap Bolts, Cam Lock and Wood Screw (long).
Page 5
Assembly Instructions 5/5 Drawer (J) STEP 1 Attach Drawer Sides (J3) and (J4) to Drawer Back (J2), then flip the locks. (See Figures 1 and 2) Roller at back Lock Figure 1 Figure 2 STEP 2 Slide Drawer Bottom (J5) into the grooves of Drawer Sides (J3) and (J4) until it meets Drawer Back (J2).
Page 6
CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
