IT82 Series Indoor Monitor User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT82 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox IT82 Series

Summary of Contents for Akuvox IT82 Series

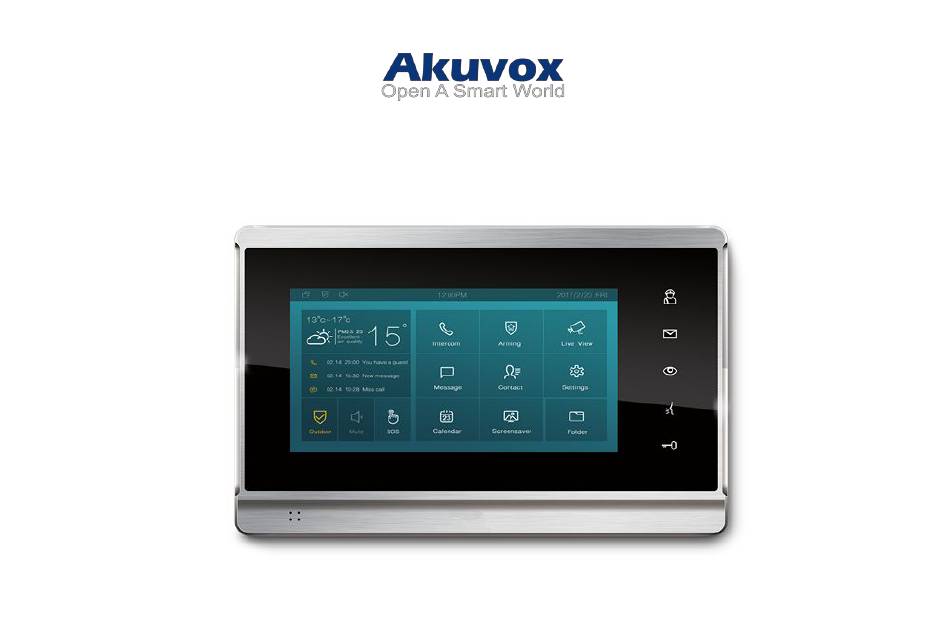

  • Page 1 IT82 Series Indoor Monitor User Manual...
  • Page 2 About this manual Thank you for choosing Akuvox’s IT82 Series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. It provides an overview of the most essential functions and features of the product, whose firmware version is 82.0.2.137.

  • Page 3: Table Of Contents

    Content 1.Product overview..................................1 1.1Product Description............................................1 1.2Power connection............................................2 2.Daily use....................................3 2.1Making a call..............................................3 2.1.1Calling from digital keypad....................................... 3 2.1.2Calling from phonebook........................................3 2.1.3Calling from call log........................................... 4 2.1.4Calling Center............................................. 5 2.2Receiving a call.............................................. 6 2.2.1Receive a incoming call........................................6 2.2.2during the session..........................................6 2.3Contact................................................8 2.3.1Group..............................................
  • Page 4 2.9Assistance..............................................18 3.Settings....................................19 3.1Display settings............................................19 3.2Sound settings..............................................20 3.3Time settings..............................................21 3.4Language..............................................22 3.6Reboot................................................22...

  • Page 5: Product Overview

    1.Product overview 1.1Product Description IT82 is an Android SIP-based with smooth touch-screen Indoor monitor. It can be connected with Akuvox door phone for unlock and monitor. Residents can communicate with visitors via audio and video call, and support remote unlock the door. It is more convenient and safe for residents to check the visitor identity through its video preview function.

  • Page 6: Power Connection

    1.2Connector Introduction 8 PIN connector: For power supply and RS485 terminal. 10 PIN connector: For 8 security connectors. Network Interface(POE): Network Interface(POE) connector which can provide both power and network connection. RJ45 Interface: RJ45 Interface connector which can provide network connection. It can share the network access from Network Interface(POE) port to other equipment or PC connection.

  • Page 7: Daily Use

    2.Daily use 2.1Making a call There are 4 ways to make a call from the indoor monitor to other units, which can be another indoor monitor or an intercom app. 2.1.1Calling from digital keypad ①Tap the icon to enter the call interface. Also you can press the intercom button ②Enter the number to call on the digital keypad, ③Tap the dial key, you can choose audio call or video call...

  • Page 8: 3Calling From Call Log

    ⑤ Search the list by number or alphabet. IT82x supports fuzzy matching query. ⑥Scroll up or down the pre-imported contact list to select contact. ⑦Tap the dial key next to the contact found to dial out. Note: If the contact has multiple numbers, after clicking the dial key, you need to choose the number you want to call.

  • Page 9: 4Calling Center

    ⑤Click to modify the log. Users can create a new contact, send the message or delete to this call log, or add this call log into Black Lists. 2.1.4Calling Center Press manage center button to make a call out, if you want to call management center (SDMC system).

  • Page 10: Receiving A Call

    2.2Receiving a call 2.2.1Receive a incoming call ①There will be a video preview in this window, when you receive a incoming call. ②Press this icon to pick up the incoming call as an video call. ③Press this icon to pick up the incoming call as a audio call.
  • Page 11 ④Press this icon to capture the video. ⑤Press this icon to mute the call. ⑥ Press this icon to switch the call to another call mode(audio or video). ⑦Press this icon to hang up the current call.

  • Page 12: Contact

    2.3Contact 2.3.1Group ①Press the icon to enter the contact interface. ②Press the icon to check the groups IT82 has. ③IT82 has two groups-Default group and Black List. You can press the corresponding group to check the contacts. 2.3.2Add a contact ④Select a group.

  • Page 13: 3Manage Contact

    ⑨Type in the RTSP URL of Door Phone, like rtsp://DoorPhone’s IP/live/ch00_0. ⑩Press this icon to save the contact. ⑪Press this icon to cancel the operations. 2.3.3Manage Contact Enter the contacts interface, ①select a group, ②select a contact. ③Press the icon to modify the selected contact. ④Press this icon to delete the selected contact.

  • Page 14: Status

    2.4Status 2.4.1Basic Status To check IT82x's status by ①②pressing this icon. After entering the status interface, ③you can press the icon to check the check the basic status. You can check Software version , Firmware version, Firmware Model, Hardware version and so on. 2.4.2Network Status ④Press the icon to check the network status.You can check the Access Mode, IP address, subnet mask,...

  • Page 15: 3Account Status

    2.4.3Account Status After entering the status interface, it shows the account status as default. You can check the account number and status here, registered means it works normally. 2.5Live view ① Press the icon to check the live video via RTSP URL from predefined doorphone station or IPC which you set under the path "Settings-More-Live View".

  • Page 16: Message(S)

    2.6Message(s) ① Press the icon to enter the message interface. There will be a notification here if there is any unread message. Or ② press this icon to enter the message interface. 2.6.1Create message ③Press this line to add a new message for existed contacts directly.

  • Page 17: 2Delete Message

    2.6.2Delete message ③Long press this icon to edit messages. ⑨ Tick the needed messages. Or ⑩you can select all messages. ⑪Press this icon to delete messages. ⑫Press the icon to cancel the operations. 2.7Arming ①Press the icon to enter the Arming interface. ②...

  • Page 18: 1Arming Mode

    2.7.1Arming Mode ③Press this icon to enter the arming mode settings interface. ④You can see all of the 8 zones and corresponding sensor types(slide down to check more information) in this interface. ⑤Press this icon to set the defence delay time. It means when you change to the arming mode from other modes, there will be 30 seconds delay time.

  • Page 19: 2Disarm Code

    2.7.2Disarm Code ① Press this icon to enter the disarm code settings interface. You can modify the disarm code here. ②Enter the original disarm code first, it is 0000 as default. ③Enter the new disarm code。 ④Enter the new disarm code again for confirming. ⑤Press save icon to save the modification.

  • Page 20: 3Alarm Log

    2.7.3Alarm Log ①Press this icon to enter the alarm log interface.You can see the alarm log here including location, zone, zone type and alarm time. ②Long press this line to edit alarm logs. Tick the selected alarm log. Or ③Press this icon to select all alarm logs. ④Press this icon to delete alarm logs.

  • Page 21: 4Status

    2.7.4Status ⑥Press the icon to enter the zone status interface. You can check the status of every zone, including location, zone type, trigger mode and status. 2.8Capture ①Press the icon to enter the capture interface. Or ②press this icon to enter folder interface, and then click Capture to enter capture interface.

  • Page 22: Assistance

    2.9Assistance ① Press the icon to call out the emergency number in case of emergency. IT82x will call out for three predefined numbers in a loop, each number will be called for 60s (by default). You can configure under the path "Settings- More-Assistance".

  • Page 23: Settings

    3.Settings ① Press the icon to enter the basic settings interface. 3.1Display settings ②Press this icon to enter display settings interface. ③To adjust the brightness here, it is 145 as default. There are 255 totally, the bigger value means the lighter screen. ④...

  • Page 24: Sound Settings

    ⑧ To select which size of words to display in the IT82x's screen. 3.2Sound settings ①Press this icon to enter the sound settings interface. ②You can set Ring Volume, Ring Tones for incoming call, and set the Talk Volume and Tone Volume(When IT82x dials out a call, it will prompt the ‘du’...

  • Page 25: Time Settings

    3.3Time settings ①By pressing this icon to enter the time settings interface. ② Automatic Data Time(NTP,Network Time Protocol) is enabled as default, then IT82x will get the Date and Time automatically. Also users can disable the Automatic Data Time, and set the Date and Time manually. And users can also setup NTP server.

  • Page 26: Language

    3.4Language ①Press this icon to enter language setting interface. ②To select a suitable language. 3.6Reboot ③Press the icon to reboot IT82x, click Confirm when you see the prompt. The phone will reboot.
