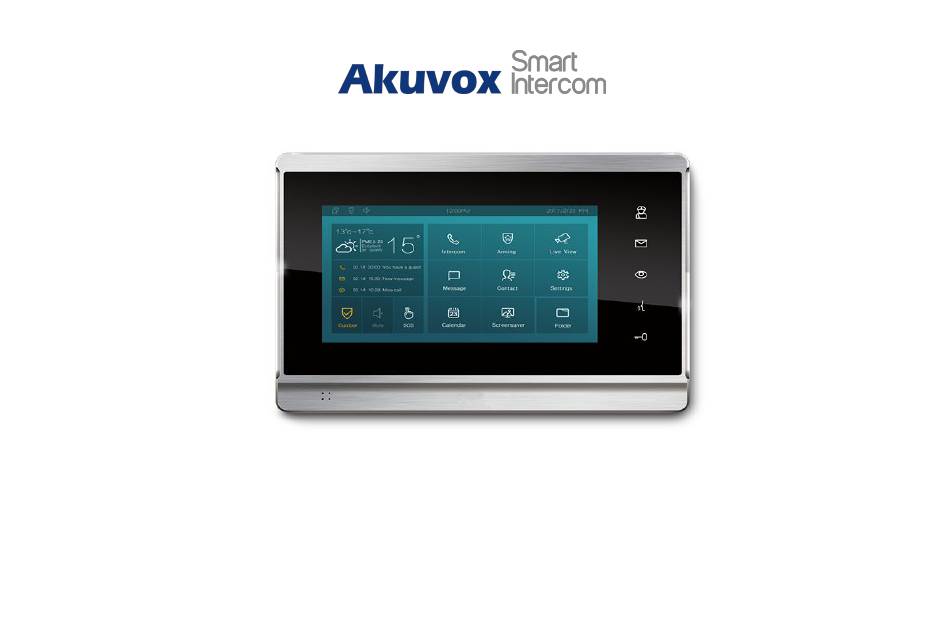

- Page 1 IT82 Series Indoor Monitor User Manual...
- Page 2 About This Manual Thank you for choosing Akuvox’s IT82 Series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. This manual provides an introduction of all functions and features of the product. It is suitable for 82.31.2.4xx version.
-
Page 3: Table Of Contents
Content 1. Product Overview....................................... 1 1.1. Product Description....................................1 1.2. Connector Introduction....................................2 2. Daily Use..........................................3 2.1. Starting......................................... 3 2.2. Making a call........................................5 2.2.1. Calling from Call List..................................5 2.2.2.Calling from All Call................................... 5 2.2.2. Calling from Missed Call..................................6 2.2.3. Call from Device....................................7 2.2.4. - Page 4 2.4. Monitor........................................10 2.4.1. Checking the Monitor..................................11 2.5. Message........................................12 2.5.1. Text Message....................................12 2.5.2. Creating a Message..................................13 2.5.3. Deleting a Message..................................14 2.6. Arming........................................15 2.6.1. Arming Mode....................................15 2.6.2. Disarm Code....................................16 2.6.3. Alarm Log......................................17 2.6.4. Status....................................... 17...
-
Page 5: Product Overview

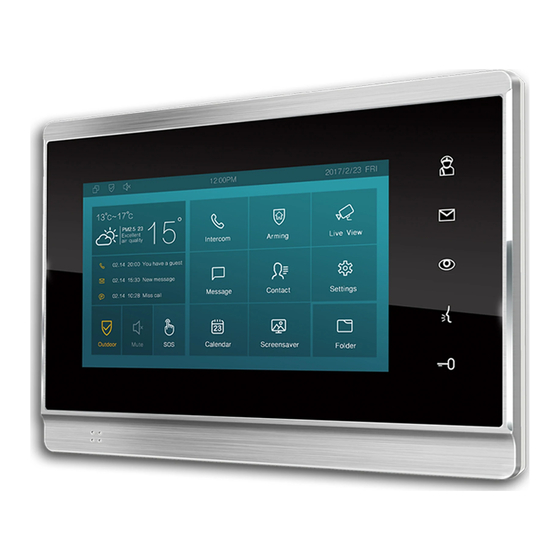

1. Product Overview 1.1. Product Description IT82X is an Android SIP-based with smooth touch-screen Indoor monitor. It can be connected with Akuvox door phone for unlock and monitor. Residents can communicate with visitors via audio and video call, and support remote unlock the door. It is more convenient and safe for residents to check the visitor identity through its video preview Figure 1.1 Product description... -
Page 6: Connector Introduction
IT82X User manual 1.2. Connector Introduction Ethernet(POE): Network Interface(POE) connector which can provide both power and network connection. RJ45(PON): Share the network access from Ethernet port, and Figure 1.2-1 IT82X interface for PC and other equipment connection. 12V/GND: External power supply terminal if POE is not available. RS485+/-: RS485 terminals. -
Page 7: Daily Use
Tap Skip if users are adopting SDMC mode. Discovery mode is default. Discovery mode: It is a plug and play configuration mode. Akuvox devices will configure themselves automatically when users power on the devices and connect them to network. It is a super time-saving mode and it will greatly bring users convenience by reducing manual operations. - Page 8 Cloud mode: Akuvox Cloud is an all in one management system. All configurations in the device will be issued automatically from the Cloud. if you decide to use Akuvox cloud, please contact the administrator, he will help to do some settings in the Cloud before using.
-
Page 9: Making A Call
IT82X User manual 2.2. Making a call There are 4 ways to make a call from the indoor monitor to other units, which can be another indoor monitor or an intercom app. 2.2.1. Calling from Call List In the home page, choose a number from Call List to make a call. ... -
Page 10: Calling From Missed Call
IT82X User manual Tap All Call icon ① to call other indoor monitors which are set in the same multicast group. 2.2.2. Calling from Missed Call The Missed Call will indicate how many calls that users have missed (1 missed call for an example). Missed call could be treated as a brief call log. -
Page 11: Call From Device
IT82X User manual 2.2.3. Call from Device It will display the devices connected with IT82 Monitor on the Contact interface. On the device, go to More - Contact - Device. Select a device ① which users want to call. ... -
Page 12: Calling From Keypad
IT82X User manual 2.2.5. Calling from Keypad On the device, go to More - Call to get access to keypad. Click account icon ① above the keypad to switch accounts to make a call. Input the SIP account/ IP address to the keypad ② to call the corresponding devices or soft phone. -
Page 13: Receiving A Call
IT82X User manual 2.3. Receiving a Call 2.3.1. Receive an Incoming Call IT82X monitor supports to preview the visitor/caller when it receives an incoming call from door phone. Tap Answer to pick up the incoming call. Tap Cancel to reject the incoming call. Press “+” or “-” of the Figure 2.3.1 Incoming call volume on the right side to adjust the ring tone volume. -
Page 14: Monitor
IT82X User manual 2.4. Monitor Monitor feature enables users to view the real-time video from IP cameras or door phones anytime. Click Monitor in the home page. Figure 2.4-1 Monitor... -
Page 15: Checking The Monitor
IT82X User manual 2.4.1. Checking the Monitor Choose the outdoor devices from the list .The real-time video from the door phone or IP camera will show in the screen . Press Unlock to open the door which is connected with door phone. -
Page 16: Message
IT82X User manual 2.5. Message It will indicate how many messages are unread on Message ① . (An unread message for an example). Or directly enter the message interface to do edition. 2.5.1. Text Message Tap Message ① on the main interface to view the unread Figure 2.5 -1 Message message. -
Page 17: Creating A Message
IT82X User manual 2.5.2. Creating a Message Press New key ① to create a new message. Enter the destination number manually ② or choose the contact from the contact list ③ or select the device quickly from the below list ④ . ... -
Page 18: Deleting A Message
IT82X User manual 2.5.3. Deleting a Message Long press the message ① to select it. Click Select All ② to select all message in the message lists. Click Delete ③ to delete the messages have been selected. ... -
Page 19: Arming
IT82X User manual 2.6. Arming Tap Arming to enter the arming interface. Arming feature is not displayed by default. Users can ask administrator to able it. IT82X monitor supports 4 modes, including “Home mode,” “Night mode,” “Away mode” and “Disarmed mode.” 2.6.1. -
Page 20: Disarm Code
IT82X User manual The Status in the corresponding zone means whether the zone is available or not. Press Save in the top right corner to save the modification. 2.6.2. Disarm Code Go to Arming - Disarm Code to enter the disarm code settings interface. -
Page 21: Alarm Log
IT82X User manual 2.6.3. Alarm Log Go to Arming - Alarm Log to enter the alarm log interface. Users can check the alarm log, including “location,” “zone,” “zone type” and “alarm time.” Hold an alarm log ①, and it will show up delete prompt. ... - Page 22 IT82X User manual Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
- Page 23 IT82X User manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
- Page 24 IT82X User manual Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
