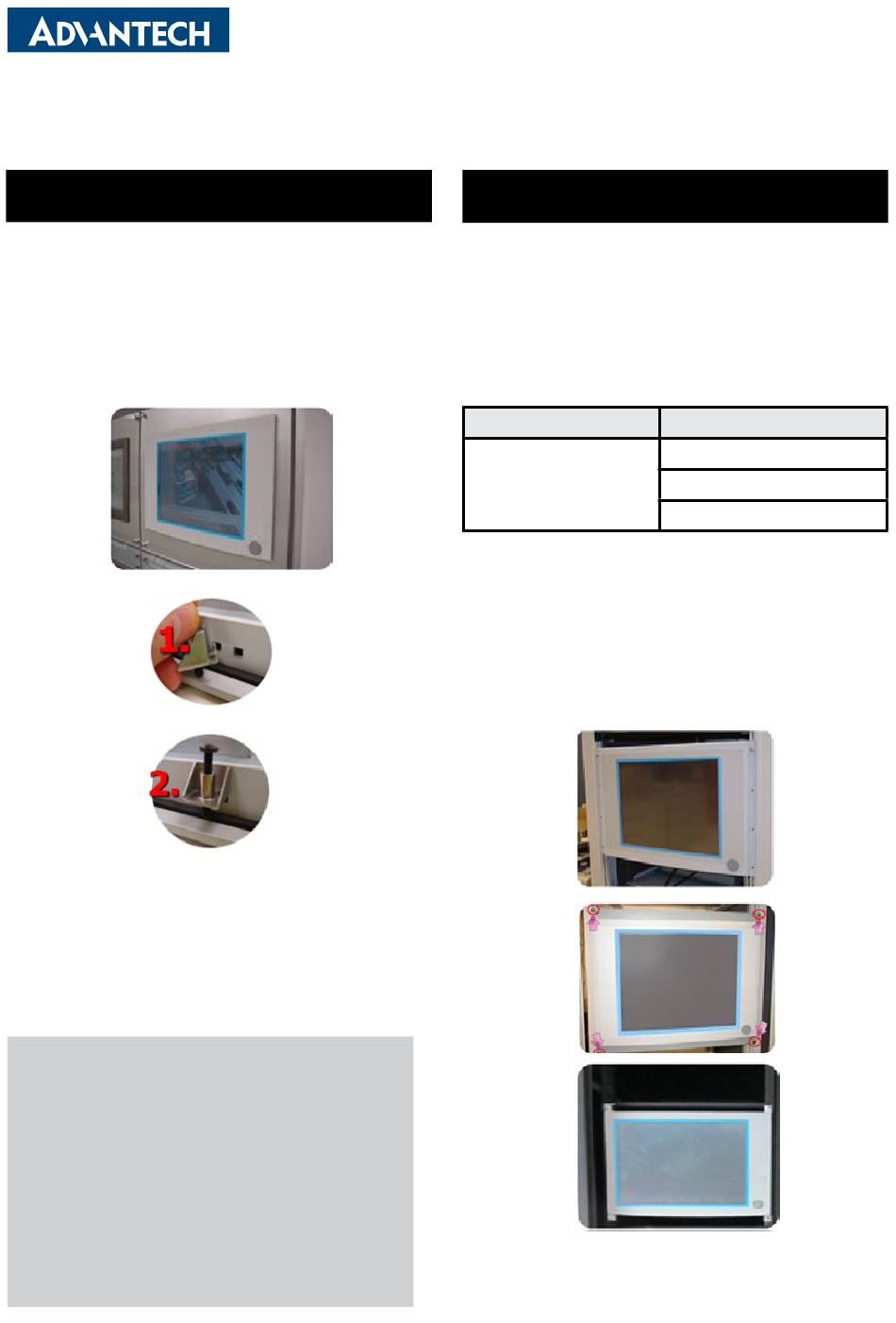

Advantech IPPC-6152 Series Mounting Installation Manual

IPPC-6152/6172/6192 Series
Mounting Installation Guide
Panel Mounting Setup Guide
Follow these instructions to use the panel bracket:
1. Take the four mounting brackets out of the accessory
box.
2. Attach the four mounting brackets by inserting the
screws into the keyhole slots on the cover of the monitor.
3. Use the screws to secure the brackets to the cover.
Tighten the screws to secure the monitor to the back
panel.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the IPPC-6152&6172&6192 Series..
Part No. 2003615230
Printed in China
Rack Mounting Setup Guide
The customized rack mounting package of IPPC-6000 series
is designed to help users install the computer on the mount-
ing bracket perfectly.
The rack mounting package should contain each of the
following:
• Rack mount;
• Packet of screws.
Order Information
Description
IPPC-6000 Rack mount
Kit
Follow the procedures below to attach the rack mounting
bracket:
1. Attach one rack mount to the bracket with 2 screws.
2. Carefully place the computer on the rack mount.
3. Put the other rack mount over the computer. Fasten the
4. Tighten the screws to avoid damage caused by acciden-
IPPC-6152
IPPC-6172
IPPC-6192
Note
1st Edition,
July 2013
IPPC-6152&6172&6192 Series Rack Mount Installation Guide
rack mount to the bracket with 2 screws.
tal dropping or shock.
The IPPC-6172's brackets are installed at the top
and bottom, which is different from The IPPC-
6152 and IPPC-6192 whose brackets are installed
on the left and right sides.
Ordering Part Number
IPPC-6152A-RMKE
IPPC-6172A-RMKE
IPPC-6192A-RMKE
