Description:
TABLE WITH WOOD LEGS
Table with Wood Legs (EMTF)
E
F
C
B

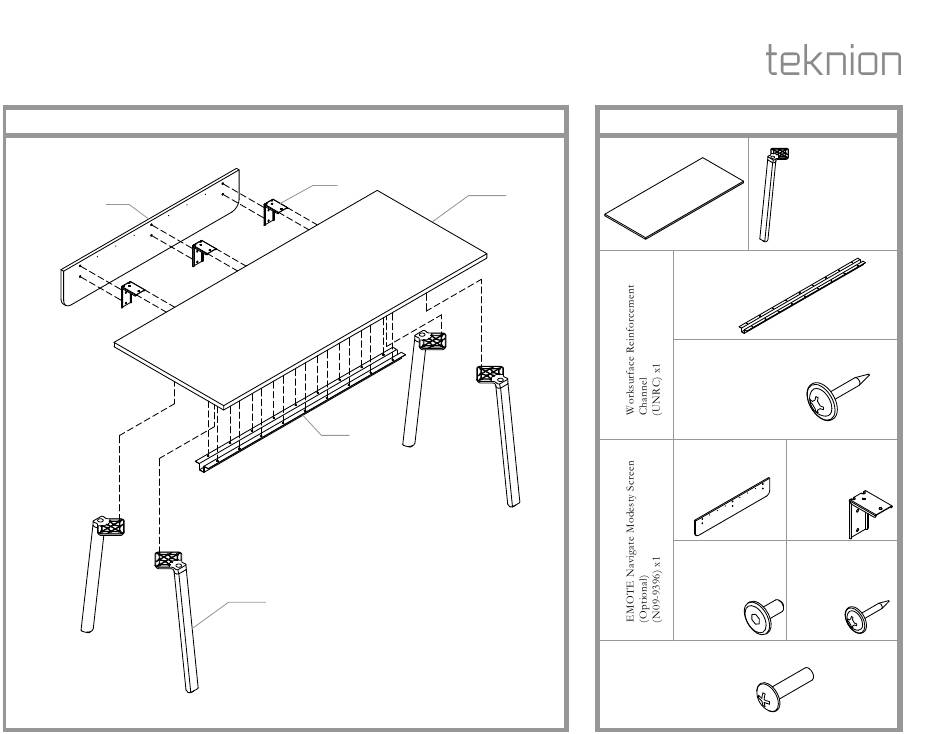

Part and Product Identification
A - EMTF Top
(EMTFE) x1
A
C - Reinforcement Channel
D - #10 x 0.875'' LG. Screw,
E - EMOTE Modesty
G - Murakoshi Screw,
I - Machine Screw, 1/4-20x1'',
Truss, Quadrex, Black
(E01-0588) x40
Date:
Sept 2019
Page No:
TEM_101
Rev. No: 0
B - Leg Assembly, MR
(N02-4598) x4
(A15-6956) x1
Quad. Pan Washer
(E07-0077) x
16 for 48'' 18 for 54''
20 for 60'' 22 for 66''
24 for 72''
F - Modesty Bracket
Screen
(A16-3113) x
(C07-5707) x1
2 for 48'' & 54''
3 for 60'', 66'' & 72''
H - #10 x 0.875'' LG.
1/4-20 x 15mm
Screw, Quad. Pan
(JCBB), Zinc
Washer
(E01-0635) x2
(E07-0077) x2
per Bracket
per Bracket
1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion Emote
Summary of Contents for Teknion Emote
- Page 1 D - #10 x 0.875'' LG. Screw, Quad. Pan Washer (E07-0077) x 16 for 48'' 18 for 54'' 20 for 60'' 22 for 66'' 24 for 72'' E - EMOTE Modesty F - Modesty Bracket Screen (A16-3113) x (C07-5707) x1 2 for 48'' & 54'' 3 for 60'', 66'' &...
- Page 2 Installation Guides Section: TABLES Date: Sept 2019 Page No: 2 of 4 Description: TABLE WITH WOOD LEGS TEM_101 ATTACH REINFORCEMENT TO WORKSURFACE STEP 1: Lay the Worksurface on a flat ground. Attach the Reinforcement to the Worksurface using Screws provided.
- Page 3 Installation Guides Section: TABLES Date: Sept 2019 Page No: 3 of 4 Description: TABLE WITH WOOD LEGS TEM_101 ATTACH BRACKET TO MODESTY (OPTIONAL) INSTALL MODESTY (OPTIONAL) STEP 2: Install the Bracket onto the Modesty Screen using Screws provided. STEP 3: Install the Modesty onto the Worksurface using Screws provided.
- Page 4 Installation Guides Section: TABLES Date: Sept 2019 Page No: 4 of 4 Description: TABLE WITH WOOD LEGS TEM_101 ATTACH LEGS STEP 4: Install the Legs onto the Worksurface using Screws provided.
