Wiring
Wiring to Chore-Tronics Control and Weighmatic Scale
The three digital input terminals must be connected to the Chore-Tronics
in improper operation of the feeding system.
EXTERNAL WIRING TERMINAL 1
1
L1 Supply
2
L2 Supply
3
Upper Switch Out
4
Upper Switch Return
5
Lower Switch Return
Scale Wiring
6
Push Button Return
7
L1 Common
8
To Control (Feeder Fill Relay)
9
From Control (Feeder Fill Relay)
10
To Weigh Fill Relay
11
From Weigh Fill Relay
®
2 Controls using twisted pair wire (part no. 42208). Failure to do so could result
EXTERNAL WIRING TERMINAL 2
1
To Control Feeder Line Relay
2
From Control Feeder Line Relay
3
4
5
6
7
Upper Switch
8
Upper Switch
C-Tronics
D1 Wiring
9
Lower Switch
10
Lower Switch
11
Push Button
12
Push Button
FEED
CLOCK
RELAY
GROUND

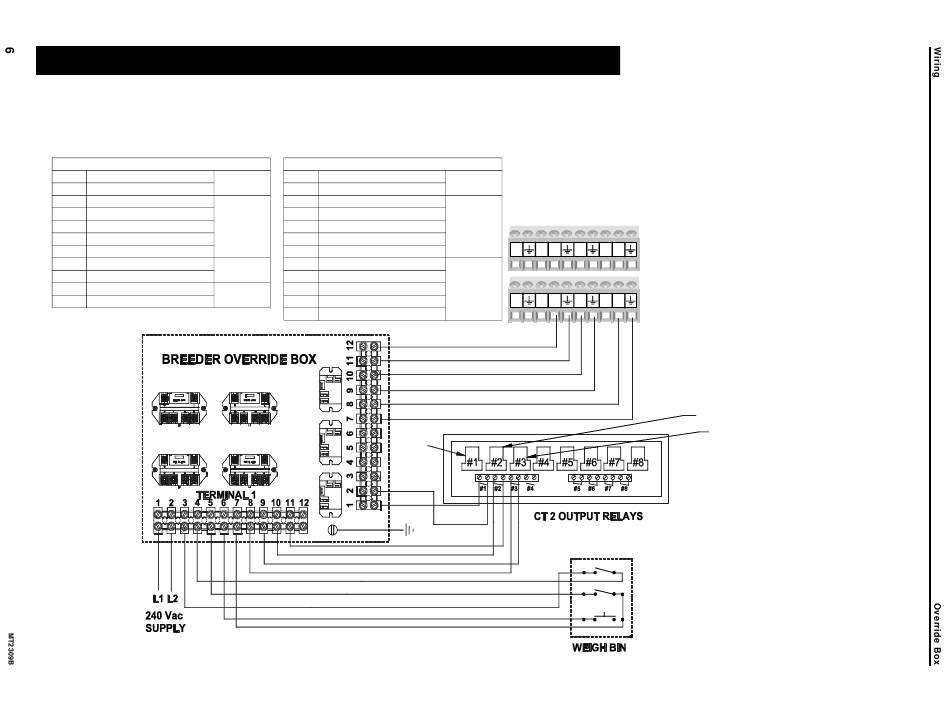

Figure 6. Wiring to Chore-Tronics Control
CT 2 DIGITAL IN
DI5
12V DI6
DI7
12V
DI8
12V DI2
DI1
DI3
12V
DI4
M. SCALE FILL RELAY (WEIGH FILL)
FILL CLOCK RELAY (FEEDER FILL)
