Impulse IT8002 Assembly Instructions Manual

Lat pull
Hide thumbs

Advertisement

Quick Links

Download this manual
I
T8002
Lat Pull
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the IT8002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Impulse IT8002

Summary of Contents for Impulse IT8002

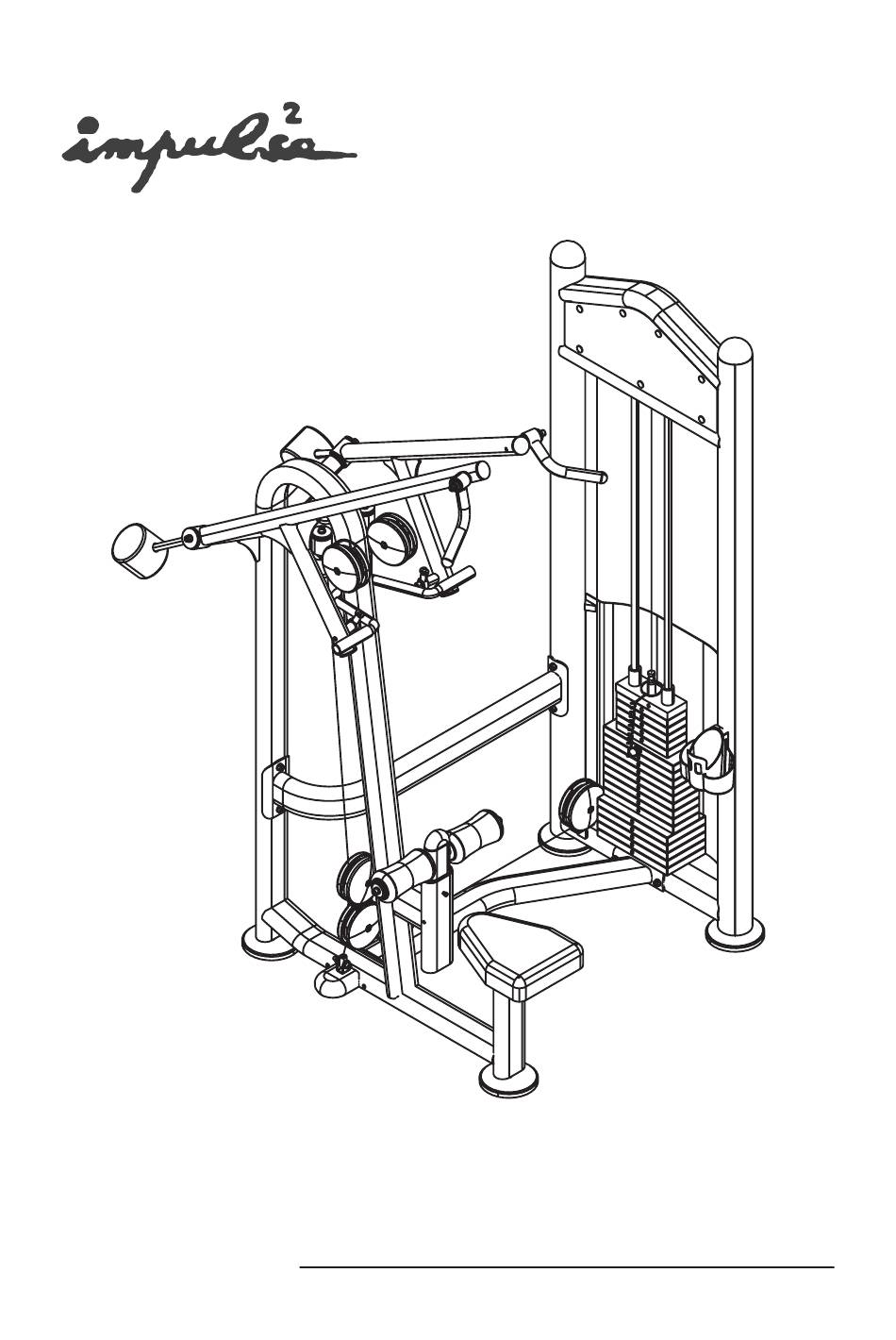

  • Page 1 T8002 Lat Pull Assembly Instructions...

  • Page 2: Table Of Contents

    Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Lat Pull These instructions are written to ensure your safety and to protect the unit.

  • Page 4: Exploded View Diagram

    T8002 Lat Pull Exploded View Diagram...

  • Page 5: Hardware List

    Hardware List 1 10 14 0 Millimeters Inches...
  • Page 6 Hardware List 1 10 14 0 Millimeters Inches...

  • Page 7: Parts List

    Parts List Item No. Description QTY Item No. Description Main Upright Plug 50.8 Φ Side Upright Washer 50× 10.5×8 Φ Φ Left Lat Arm Button Right Lat Arm Cable Base Cross Frame Lat Cable Upper Cross Split Pin Handle Bar Allen bolt M12×40 Left Swivel Pulley Block Allen bolt M10×120...

  • Page 8: Assembly Instructions

    Assembly instructions Assembly of the Lat Pull takes professional installers about 2 hours. If this is the first time you have assembled this type of equipm ent, plan to spend more time. It is strongly recom men ded to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.
  • Page 9 Step1 Install The Adj.Foot Plates Align the Adj. Foot Plates(#29) to the Main Upright(#1) and the Side Upright(#2),then secure them by hands.
  • Page 10 Step2 Assemble The Frame 1)Attach the Base Cross Frame(#5) and the Upper Cross (#6)to the Main Upright(#1)using: four Allen Bolts(#53) M10×115 four Nylon Locknuts(#67) M10 eight Washers(#66) Φ 11× 20×2 Φ 2)Attach the Side Upright(#2) to the Upper Cross(#6) and the Base Cross Frame(#5) using: two Allen Bolts(#52) M10×120 two Allen Bolts(#55) M10×70 eight Washers(#66)
  • Page 11 Step3 Assemble The Weight Plates 1)Insert both the Guide Rods(#15) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#30) down onto each the Guide Rod(#15). 3)Carefully begin sliding the Weight Plate one by one in sequence:#34,#33,#32,#31 4)Align both top ends of the Guide Rods(#15) to the Main Upright(#1) and secure them using: two Allen Bolts(#54) M10×75 two Washers(#66)
  • Page 12 Step4 Assemble The Lat Arms 1)Secure the Handle Bar(#7)to the Left Lat Arm(#3)using one Allen Bolt(#59) M10×25 one Spring Washer(#69) Φ one Washer(#66) Φ 11× 20×2 Φ one Washer Cap(#78) 2)Secure the Left Lat Arm (#3) to the Side Upright (#2) using one Allen Bolt(#59) M10×25 one Spring Washer(#69)
  • Page 13 Step5 Assemble The Roller Pad Frame 1)Attach the Seat Pad(#27) to the Side Upright(#2) using: two Shoulder Bolts( 58) M10×30 two Washers(#66) Φ 11× 20×2 Φ 2)Insert the Big Plastic Washer(#76) onto the Roller Pad Frame(#10),next insert the Roller(#28) onto the Roller Pad Frame(#10) and secure it using: one Shoulder Bolt(#59) M10×25 one Washer(#66)
  • Page 14 Step6 Route The Weight Cable 1)Put the clip tied on the weight pin leash onto the Top Plate(#31) as shown below, next connect the Weight Cable(#48) to the Top Plate(#31). 2)Route the Weight Cable (#48) up and over the two Pu- lleies A (#24), next,secure them to the Main Upright (#1) using two Allen Bolts(#56) M10×45...
  • Page 15 Clip Top plate For Step6...
  • Page 16 Step7 Route The Lat Cable 1)Connect the Lat Cable(#49) to the Right Lat Arm(#4) using one Allen Bolt(#51) M12×40 one Spring Washer(#68) Φ 2)Route the Lat Cable (#49) up and over the Pulley A (#24), then secure them to the Right Swivel Pulley Bl- ock(#9) located on the Side Upright(#2) using one Shoulder Bolt(#61) M10×60 one Nylon Locknut(#67) M10...
