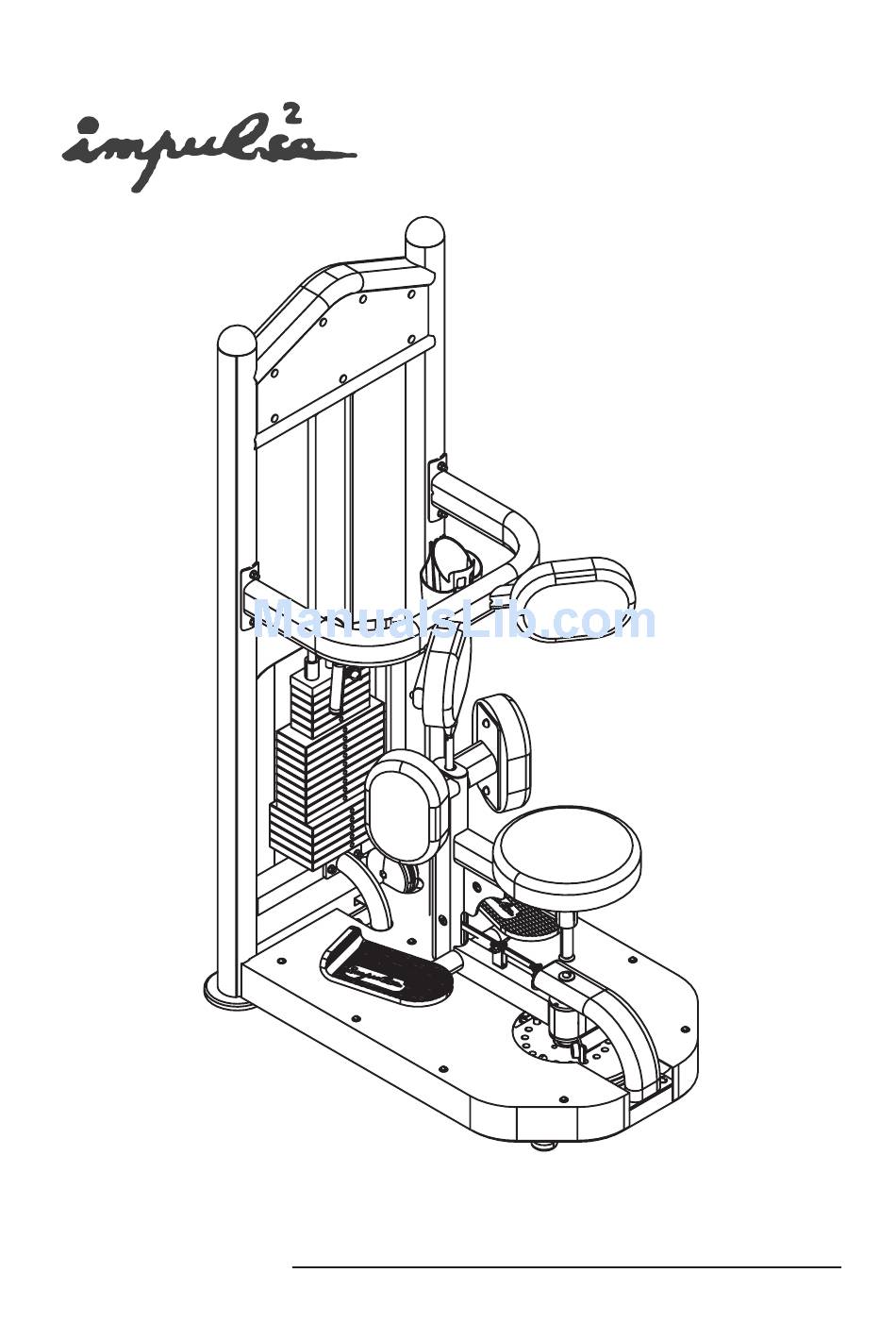

- Page 1 T8018 Torso Rotation Assembly Instructions...
-
Page 2: Table Of Contents
Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Torso Rotation These instruc- tions are written to ensure your safety and to protect the unit. -
Page 4: Exploded View Diagram
T8018 Torso Rotation Exploded View Diagram... -
Page 5: Hardware List
Hardware List 1 10 14 0 Millimeters Inches... - Page 6 Hardware List 1 10 14 0 Millimeters Inches...
-
Page 7: Parts List
Parts List Item No. Description QTY Item No. Description Main Upright Chamfer Bolt M8×25 Swivel Frame Chamfer Bolt M6×20 Angle Support Chamfer Bolt M5×10 Handle Frame Shoulder Bolt M5×20 Base Shoulder Bolt M5×10 Seat Pad Support Allen Bolt M10×75 Low Pole Nylon Locknut M10 Base Cover Nut M10... -
Page 8: Assembly Instructions
Assembly instructions Assembly of the Torso Rotation takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom mended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. - Page 9 Step1 Install The Sub-support Components 1)Align the Adj. Foot Plates(#11) to the Main Upright (#1), then secure them by hands. 2)Attach the two Round Rubber Pads(#73) to the Base (#5) using: two Allen Bolts(#41) M10×80 two Nylon Locknuts(#57) M10 four Washers(#63) Φ...
- Page 10 Step2 Assemble The Frame 1)Attach the Handle Frame(#4) to the Main Upright(#1) using: four Shoulder Bolts(#38) M10×115 four Nylon Locknuts(#57) M10 eight Washers(#63) Φ 11× 23×2 Φ 2)Attach the Base(#5) to the Main Upright(#1) using: two Allen Bolts(#40) M10×85 six Allen Bolts(#39) M10×95 fourteen Washers(#63) Φ...
- Page 11 Step3 Assemble The Cam Align the Cam (#18) and the Swivel Frame(#2) to the base(#5) and secure them using: one Long Spacer(#22) Φ 30.5× 37×35 Φ one Spacer(#23) Φ 30.5× 37×19 Φ...
- Page 12 Step4 Assemble The Weight plates 1)Insert both the Guide Rods(#16) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#74) down onto each the Guide Rod(#16). 3)Carefully begin sliding the Weight Plate one by one in sequence:#27,#26,#25,#24. 4)Align both top ends of the Guide Rods(#16) to the Main Upright(#1) and secure them using: two Allen Bolts(#56) M10×75 two Washers(#63)
- Page 13 Step5 Route The Cable 1)Put the clip tied on the weight pin leash onto the Top Plate(#24) as shown,next connect the Cable(#77) to the Top Plate(#24). 2)Route the Cable(#77) up and over the two Pulleies A (#23).then secure them to the Main Upright(#1) using: two Allen Bolts(#44) M10×45 four Washers(#63) Φ...
- Page 14 Clip Jam Nut Top plate For Step 5...
- Page 15 Step6 Assemble The Base Cover And The Angle Support 1)Secure the Angle Support(#3) to the Base(#5) using two Allen Bolts(#43) M10×60 two Nuts(#58) M10 four Washers(#63) Φ 11× 23×2 Φ one Allen Bolt(#47) M10×25 one Washer(#64) Φ 10× 38×2 Φ one Spring Washer(#65) Φ...
- Page 16 Step7 Assemble The Decal Plates 1)Attach the two Decal Plates(#83,#32) to the Main Up right(#1) using: fourteen Buttons(#35) 2)Attach the Weight Shroud (#21)to the Main Upright (#1) using: four Bolt Covers(#37) Φ 21×5.7 four Plastic Washers(#36) Φ 13×3 four Chamfer Bolts(#36) Φ...
- Page 17 Step8 Assemble the Pads 1)Attach two Small Pads (#9) to the Handle Frame(#4) using: four Washers(#63) Φ 11× 23×2 Φ four Allen Bolts(#45) M10×50 2)Attach two Small Pads(#9) to the Swivel Frame(#2) using: four Washers(#63) Φ 11× 23×2 Φ four Allen Bolts(#46) M10×30 3)Attach the Seat Pad(#10) to the Seat Pad Support(#6) using: two Washers(#63)
