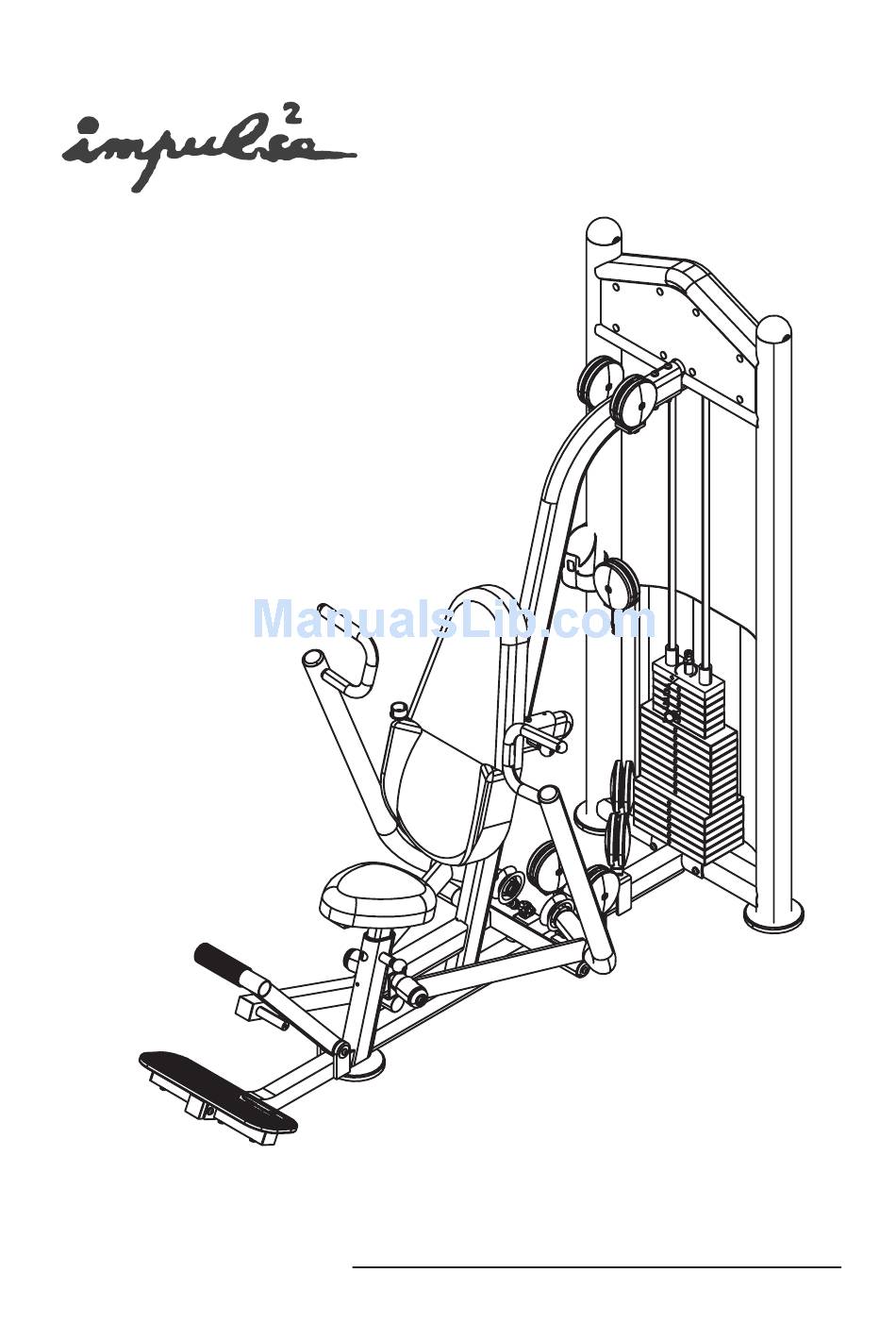

- Page 1 IT8001 Chest Press Assembly Instructions...
-
Page 2: Table Of Contents
Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ 3 Parts List----------------------------------------------------- ---------- 4 Assembly instructions------------------------------------------ -- 5... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Chest Press These instructions are written to ensure your safety and to protect the unit. -
Page 4: Exploded View Diagram
T8001 Chest Press Exploded View Diagram... -
Page 5: Hardware List
Hardware List 1 10 14 0 Millimeters Inches... - Page 6 Hardware List 1 10 14 0 Millimeters Inches...
-
Page 7: Parts List
Parts List Item No. Description Item No. Description Main Upright Chest Press Cable Main Support Bearing Left Press Arm Pop Pin Right Press Arm Small Shaft Assistant Frame1 Bronze Bushing ID12 Foot Plate Support Bronze Bushing Id25 Seat Pad Support Allen Bolt M12×40 Back Pad Support Allen Bolt M10×115... -
Page 8: Assembly Instructions
Assembly instructions Assembly of the Chest Press takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom men ded to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. - Page 9 Step1 Install The Adj.Foot Plates Align the Adj.Foot Plates (#42) to the Main Upright(#1) and the Main Support(#2) then secure them by hands.
- Page 10 Step2 Assemble The Frame 1)Secure the Upper Support (#81) to the Main Support (#2), using two Allen Bolts(#54) M10×115 four Washers(#67) Φ 11× 20×2 Φ two Locknuts(#71) M10 2)Attach the Main Support (#2) and the Upper Support (#81) to the Main Upright(#1) using four Allen Bolts(#54) M10×115 eight Washers(#67) Φ...
-
Page 11: Foot Plate Support 1
Step3 Assemble The Foot Plate 1)Attach the Foot Plate Support(#6) to the Main Support (#2) using two Allen Bolts(#55) M10×75 four Washers(#67) Φ 11× 20×2 Φ two Locknuts(#71) M10 2)Attach the Pedal (#19) to the Support (#6)using eight Allen Bolts(#61) M8×60 eight Washers(#68) Φ... - Page 12 Step4 Assemble The Assistant Frame1 Attach the Assistant Frame1(#5) to the Main Support (#2) using one Allen Bolts(#59) M10×25 one Spring Washers(#69) Φ 9× 16×1.5 Φ one Small Collar(#18) one Collar(#17) one Big Washer(#12)
-
Page 13: Assistant Frame2 1
Step5 Assemble The Assistant Frame2 Align the Assistant Frame2(#9) to the Main Support(#2) and secure it into place using two Allen Bolts(#60) M10×15 two Washers(#65) Φ 38× 11×2.5 Φ two Spring Washers(#69) Φ one Small Shaft(#50) -
Page 14: Big Washer(
Step6 Assemble The Lef t Press Arm Attach the Left Press Arm(#3) to the Main Support(#2) sing one Allen Bolt(#59) M10×25 two Small Collars(#18) one Spring Washer(#69) Φ one Big Washer(#12) - Page 15 Step7 Assemble The Right Press Arm This assembly is the same as step 6.
- Page 16 Step8 Assemble The Weight Plates 1)Insert the two Guide Rods(#24) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#32) down onto each Guide Rod(#24). 3)Carefully begin sliding the Weight Plates one by one in sequence:#36,#35,#34,#33 4)Align both top ends of the Guide Rods(#24) to the Main Upright(#1) and secure them using two Allen Bolts(55) M10×75 two Washers(#67)
- Page 17 Step9 Route The Weight Cable 1)Put the Clip tied on the weight pin leash onto the Top Plate (#33) as shown below,next connect the Weight Cable(#46) to the Top Plate(#33). 2)Route the Weight Cable (#46) up and over the two Pu- lleies (#28), next, secure them to the Main Upright (#1) using two Allen Bolts(#58) M10×45...
- Page 18 Clip Top plate Step 9...
- Page 19 Step10 Route The Chest Press Cable 1)Connect the end of Chest Press Cable (#47)to the Gi- mbal (#43), next secure the Gimbal (#43) to the Main Support(#2) using: one Allen Bolt (#53) M12×40 two Washers (#66) Φ 13× 24×1.5 Φ one Nylon Locknut(#70) M12 2)Route the Chest Press Cable(#4 ) over the Wide Pul- ley(#14),and insert the Spacer(#77) and the "L"...
- Page 20 Step10 Route The Chest Press Cable 8)Route the Chest Press Cable(#47) over the Wide Pul- ey(#14),and insert the Spacer (#77) and the "L" Plate (#82) onto the Wide Pulley (#14),then secure them to the Right Press Arm(#4) by tightening the Wide Pulley (#14).
- Page 21 Step 10...
- Page 22 Step11 Assemble The Decal Plates 1)Attach the two Decal Plates(#22,#23) to the Main Up right(#1) using fifteen Butttons(#37) 2)Attach the Weight Shroud (#26) to the Main Upright (#1) using four Bolt Covers(#39) four Plastic Washers(#38) four Chamfer Bolts(#63) The Front Decal Plate(#22) with the exercise instr uctions printed on it should be attached in the front Note of the Main Upright(#1).
-
Page 23: Seat Pad(
Step12 Assemble The Pads 1)Attach the Seat Pad(#20) to the Seat Pad Support(#7) using two Washers(#67) Φ 11× 20×2 Φ two Allen Bolts(#57) M10×50 2)Slide the Seat Pad Support(#7) into the Main Support (#2), secure it into place with the pop pin and the Scr ew(#56).
