Summary of Contents for Ganz VALUE Series

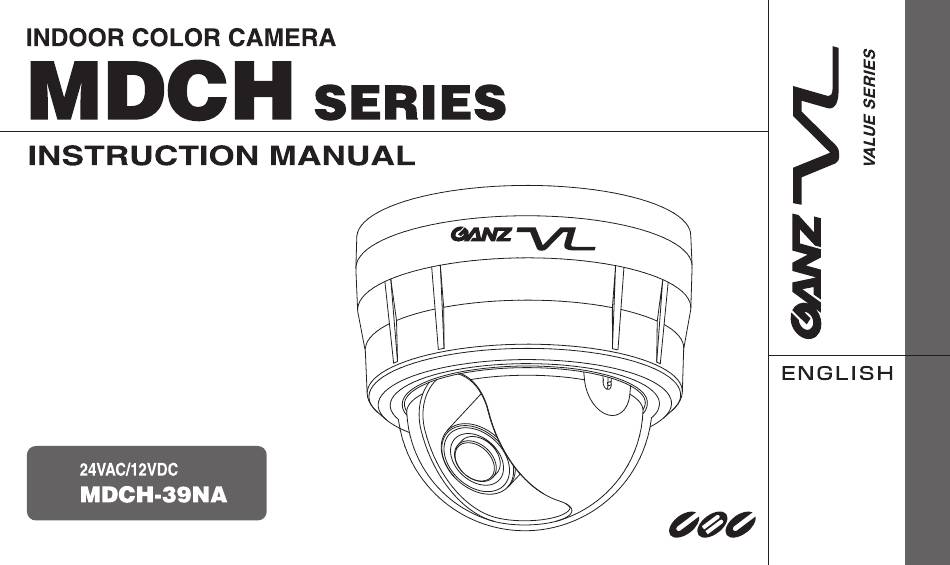

- Page 2 Thank you for your purchase of this product. Before operating the product, please read this instruction manual carefully to ensure proper use of the This symbol indicates that there is a possibility of injury or damage to product. Please store this instruction manual in a safe place for future equipment.

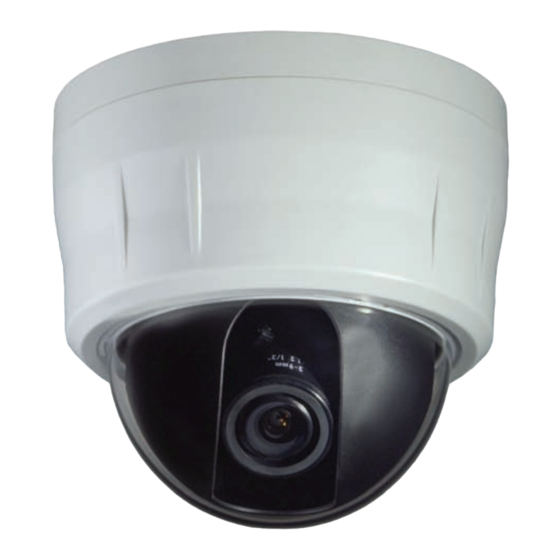

- Page 3 PARTS DESCRIPTION Outside Inside Lens DC Iris Adjustment Volume Focus Adjustment Lever View Angle Adjustment Lever Mode Setting Switch Video output connector for service monitor cable BNC Coaxial Video Cable and Power Lead Accessories Camera Base Camera Body Cover Inner Dome cover Dome Cover Additional Power Connector Plastic Anchors...
- Page 4 INSTALLATION AND ADJUSTMENT Attaching the Unit Step 1: Adhere the guide pattern Step 5: Remove the Inner to the installing surface. Dome Cover and screw the Camera Base with Step 2: Drill three small holes on Camera onto the ceiling the surface.
- Page 5 Adjusting the DIP Switche Mode Step 7: AGC- Automatic Gain Control (suggest ON) TP4*31mm screws and 1/4” * 13/8” plastic anchor are recommended for this BLC- Back Light Compensation (suggest OFF) purpose. INT- Internal Sync. D/N- Day and Night Switch (suggest ON) * Turn on the Day/Night mode;...
- Page 6 SPECIFICATIONS Model name MDCH-39NA TV system NTSC Scanning system 2:1 Interlace Image sensor 1/3 Type Interline transfer CCD Effective elements 768(H) x 494(V) Scanning frequency 15.734kHz (H) / 59.94Hz(V) Video output 1.0V p-p / 75Ω Horizontal resolution More than 540TVL Min.
- Page 7 LENS SPECIFICATION Max. aperture ratio 1: 1.2 Focal length 3.0mm ~ 9.0mm Iris (DC auto iris) F1.2 ~ F360C Angle of view (Wide to Tele) 115.4° ~ 39.8° 90.3° ~ 31.9° 66.4° ~ 23.9° * The specifi cations and/or appearance of the product may change without a prior notice. EG-7...
- Page 8 148-1.1...
