PRODUCT FEATURES
1. Selection of 420 and 540TV resolution
2. Integrated 3.6mm fixed lens
3. Easy installation
4. Compact and light weight
SAFETY PRECAUTIONS
1.
The installation should be made by
qualified service engineers and
should conform to all local codes.
2.
To prevent fire or electric shock, do
not expose the camera to rain or
moisture.
3.
To prevent fire or electric shock, UL
listed wiring should be used for the
DC 12V input.
4.
Use only DC 12V regulated power
supply marked class
5.
Never attempt to disassemble or
modify the camera.

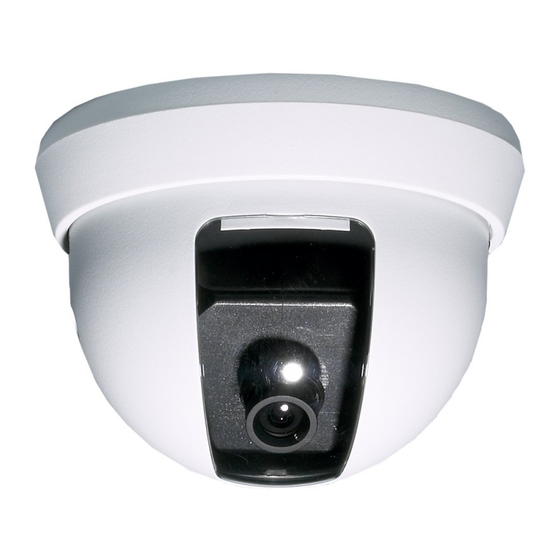

INDOOR COLOR CAMERA
MODEL: MDC-3.6N / MDCH-3.6N
6.
Be sure to connect each lead to the
appropriate terminal. Wrong
connection may cause damage to the
camera.
7.
Do not attempt to aim the camera at
the sun or other extremely bright
objects.
8.
Do not allow the camera to be
subject to unstable location, strong
shocks and vibration, and strong
electromagnetic field.
9.
If any abnormality occurs,
immediately turn off the power and
consult your dealer.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ganz VL Series
Summary of Contents for Ganz VL Series
-
Page 1: Easy Installation
INDOOR COLOR CAMERA MODEL: MDC-3.6N / MDCH-3.6N PRODUCT FEATURES 1. Selection of 420 and 540TV resolution 2. Integrated 3.6mm fixed lens 3. Easy installation 4. Compact and light weight SAFETY PRECAUTIONS The installation should be made by Be sure to connect each lead to the qualified service engineers and appropriate terminal. -
Page 2: Parts Description
PARTS DESCRIPTION After un-packing, check if the following items are contained inside. MDC(H)-3.6N unit with Power and BNC Cable…1 User Manual… 1 Screw…4 Plastic Anchors…4 Mating power connector…1 Figure 1 INSTALLATION Note: The camera may be ① fixed not only on the wall, but also on the ceiling. - Page 3 SPECIFICATIONS Model Name MDC-3.6N MDCH-3.6N TV System NTSC Scanning system 2 : 1 Interlace Image Sensor 1/3-Type Interline transfer CCD Effective Elements 510(H) x 492(V) 752(H) x 582(V) Scanning Frequency 15.734kHz(H) x 59.94Hz(V) Video output 1.0Vp-p /75Ω Horizontal resolution More than 420 TVL More than 540 TVL Minimum Illuminance 1.6 Lux/F2.0...
