Summary of Contents for Ganz ZC-D5000 NXA series
-

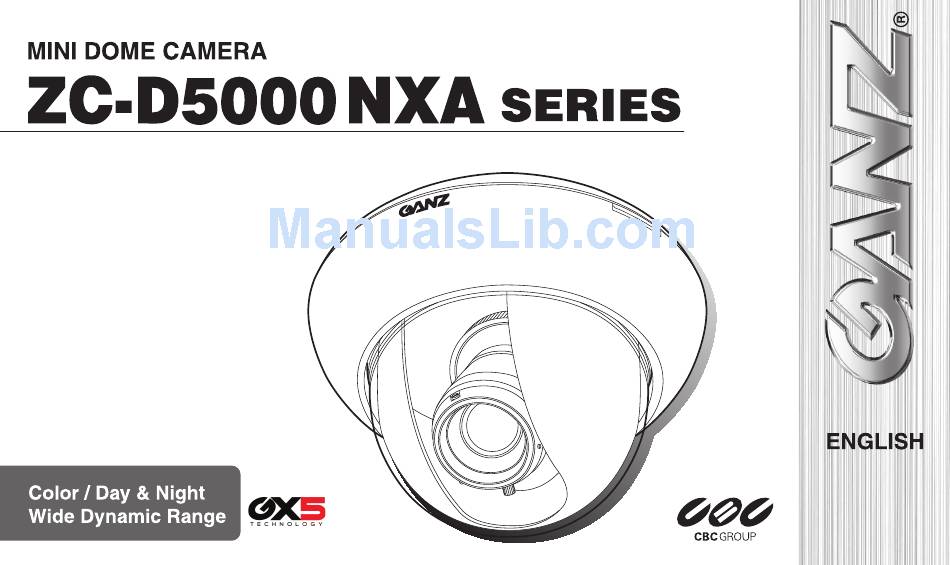

Page 1: Instruction Manual
INSTRUCTION MANUAL WITH... -
Page 2: Table Of Contents
Thank you for your purchase of this product. • The OSD settings can be dynamically switched using the Profile Switching func- tion. With these functions, two preset profiles can be switched with each other Before operating this product, please read this instruction manual carefully. when a Mode Selection terminal has been controlled or Day/Night switching has ... -
Page 3: Safety Precautions
(2) Do not place the camera in the following locations. SAFETY PRECAUTIONS 1 Locations subject to extremely high or low temperatures. (Operating temperature range: -10°C to +50°C {14°F to 122°F}) The installation should be made by a qualified service person and should conform (Storage temperature range: -20°C to +60°C {-4°F to 140°F}) to all local codes. -
Page 4: Part Names
Camera body interior PART NAMES 1 Lens 4 Menu Operation Switch Exterior Inner cover Body cover Surface mount cover 5 Video output connector for service monitor 2 Focus/ View angle 7 Termination adjustment lever resistance switch (with communication function) 8 B/W Fix terminal/Mode Selection terminal 3 Power input... -
Page 5: Installation And Adjustment
Attaching to the surface of the ceiling or wall INSTALLATION AND ADJUSTMENT This section explains how to install the unit where cables are running through the Attaching the unit interior of the ceiling or wall. When running cables on the exterior surface of the ceiling or wall, please drill holes in the ceiling or wall as directed in step 1, then You can use the following three methods to attach the unit. - Page 6 Embedding in the ceiling or wall Running cables on the exterior surface of the ceiling or wall Be sure to use the adapter ring when embedding the unit in the ceiling or wall. To run cables on the exterior surface of the ceiling or wall, use the following procedure to attach the camera body.
-
Page 7: Connecting The Cables
Attaching to a 4S junction box Connecting the cables Be sure to use the adapter ring to attach the camera body when embedding it in Connect the power cable. the 4S junction box. Attaching the adapter ring While using 12 V DC, connect the positive (+) side to “+12 V DC.”... - Page 8 B/W Fix terminal/Mode Selection terminal RS485 communication terminal (with communication function) This terminal can be used as a B/W Fix terminal and also as a Mode Selection The RS485 communication function enables remote operation of the OSD function. terminal that enables the dynamic switching of OSD settings.
-
Page 9: Adjusting The Camera Direction
2 When you have finished adjusting the direction of the lens, tighten the locking screw Attaching the service monitor with a screwdriver. Use the service monitor cable to check and adjust camera direction, focus, and angle on a service monitor. The service monitor is not supplied Locking screw in the cell. -
Page 10: Model Description
Easy focus adjustment Installation and adjustment complete Please make sure to adjust focus in a bright light environment. 1 Attach the body cover. With the OSD screen not displayed, activate the focus adjustment screen by pressing and holding down the Menu Operation Switch in the UP direction (Jump function). -
Page 11: Specifications
SPECIFICATIONS Digital Day/Night model True Day/Night model WDR Digital Day/Night model WDR True Day/Night model Model No. ZC-D5212NXA ZC-DN5212NXA ZC-DW5212NXA ZC-DWN5212NXA Focal length 2.8 mm - 12 mm Max. aperture ratio 1 : 1.3 Iris F1.3- F360C (DC auto iris) TV system NTSC Scanning system... - Page 12 Digital Day/Night model True Day/Night model WDR Digital Day/Night model WDR True Day/Night model Model No. ZC-D5212NXA ZC-DN5212NXA ZC-DW5212NXA ZC-DWN5212NXA Privacy Mask ON (16 spots max., 10 colors, mosaic) / OFF Motion detection Detects all areas. 6 (horizontal) × 4 (vertical), 24 pixels in total (minimum block), sensitivity (1–10) Stabilizer ON / OFF Monitor output mode...
