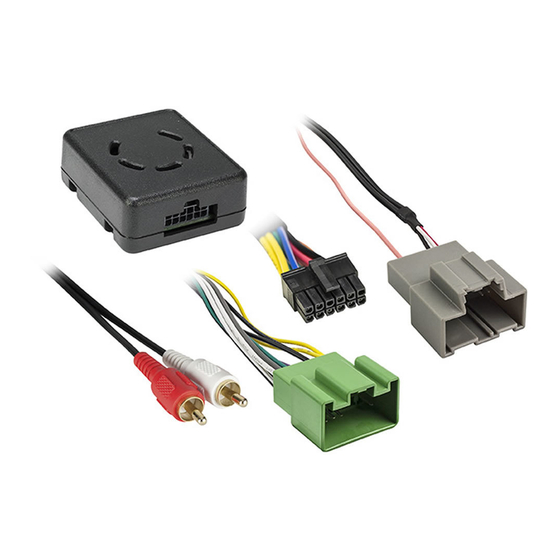

INTERFACE COMPONENTS
• LC-GMRC-LAN-09 interface • LC-GMRC-LAN-09 harness

APPLICATIONS

Chevrolet
Colorado (1)
2015-Up
Silverado 2500/3500 (3) 2015-2019
Equinox (1)
Silverado LD (1)
2018
Malibu (2)
2016-2018
Suburban
Silverado 1500 (3)
2014-2018
Tahoe
• (1) With RPO code I05 or I06 • (2) With radio code IP1 • (3) With radio code IO3, IO5, or IO6
The RPO code is located in the Service Parts Identification sticker
AxxessInterfaces.com
GM Data Interface
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• Provides accessory power (10-amp)
• Retains R.A.P. (retained
accessory power)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Used in non-amplified models, or
when bypassing a factory amp
GMC
Canyon (1)
2015-2018
Sierra 1500 (3)
2019
2014-2018
Sierra 2500/3500 (3) 2015-2019
2015-Up
2015-Up
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
LC-GMRC-LAN-09
2014-Up
• Designed for models without
OnStar
• Retains all warning chimes
• High level speaker input
• Retains balance and fade
• Provides illumination output
• Micro-B USB updatable
Sierra Limited (1)
2019
Yukon / Yukon XL
2015-Up

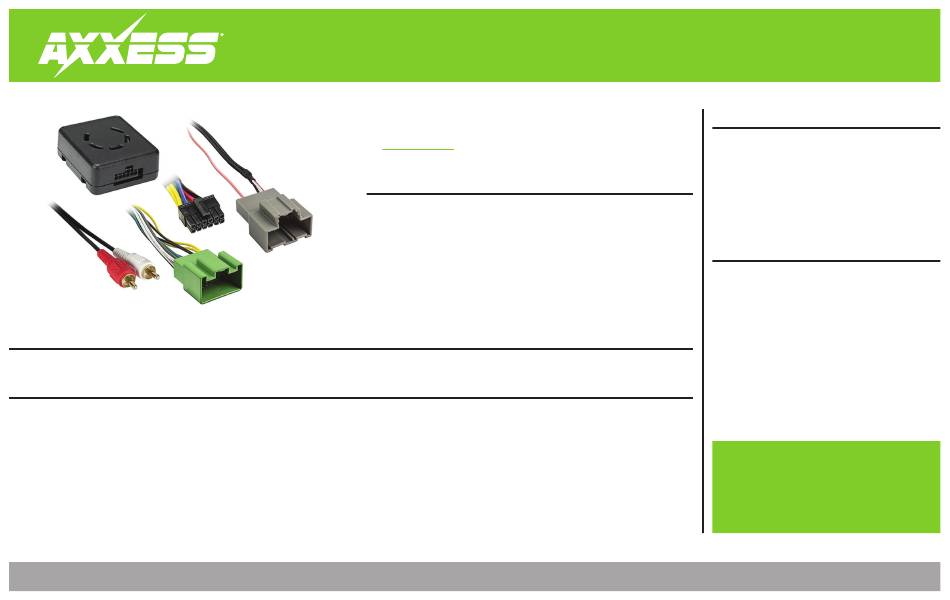

I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 5/27/20 INSTLC-GMRC-LAN-09
