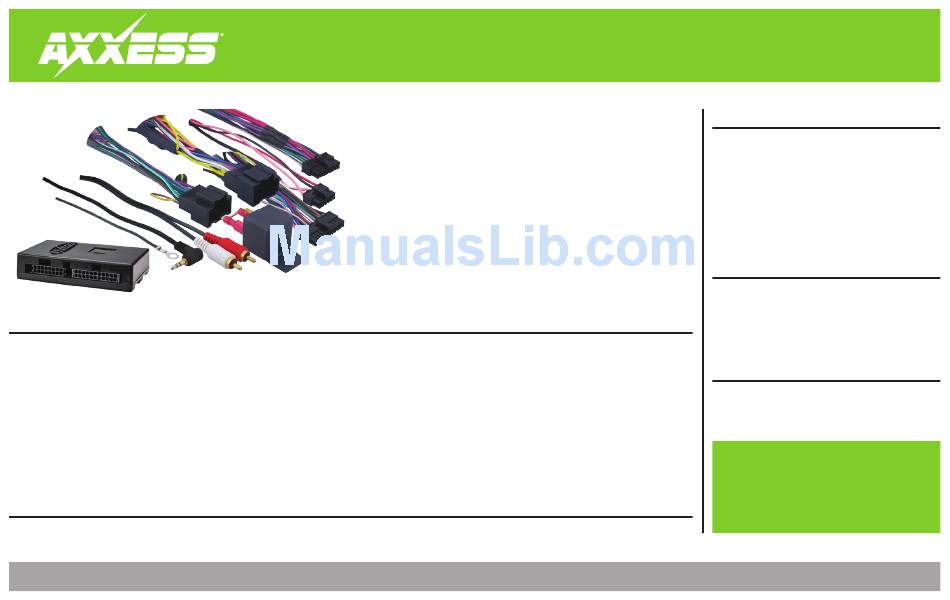

Axxess GMOS-LAN-012 Installation Instructions Manual

Axxess GMOS-LAN-012 Installation Instructions Manual

Gm lan-29 data interface 2006-up*

Advertisement

INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Maintains the retained accessory power (R.A.P.) feature
• Can be used in non-amplified, or analog/digital amplified models
• Retains warning chimes
• Provides NAV outputs (parking brake, reverse, mute, speed sense)
• Pre-wired ASWC-1 harness (ASWC-1 sold separately)
† Excluding digital amplified models
See inside front cover
AxxessInterfaces.com
GM LAN-29 Data Interface
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
• Retains OnStar/OE Bluetooth
• Adjustable volume for chimes and OnStar
• Retains balance and fade†
• Retains the factory backup camera, satellite radio, and AUX-IN
• Satellite radio information will be displayed through the driver
information center (D.I.C.)
• Micro "B" USB updatable
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
GMOS-LAN-012
I N S TA L L AT I O N I N S T R U C T I O N S
2006-up*
TABLE OF CONTENTS
Connections To Be Made ................................... 3-4
Installing The Gmos-Lan-012 ................................5
Programming The Gmos-Lan-012 ........................5
Adjusting The Gmos-Lan-012 ...............................5
Extra Features ........................................................6
Troubleshooting .....................................................7

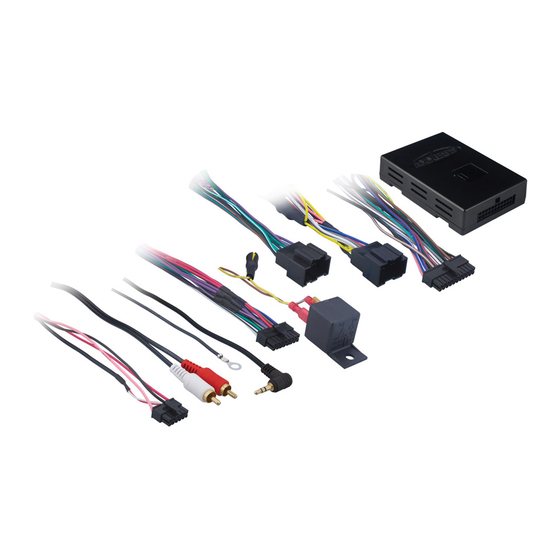

INTERFACE COMPONENTS
• GMOS-LAN-012 interface • GMOS-LAN-012 harness
• 16-pin harness with stripped leads
• 4-pin to 4-pin resistor pad harness
• Back-up camera harness • Antenna adapter
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
CAUTION!
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
All accessories, switches, climate
REV. 7/6/18 INSTGMOS-LAN-012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMOS-LAN-012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axxess GMOS-LAN-012

  • Page 1 Programming the GMOS-LAN-012 ......5 Adjusting the GMOS-LAN-012 .......5 Extra features ............6 Troubleshooting .............7 INTERFACE COMPONENTS • GMOS-LAN-012 interface • GMOS-LAN-012 harness • 16-pin harness with stripped leads INTERFACE FEATURES • 4-pin to 4-pin resistor pad harness • Provides accessory power (12-volt 10-amp) •...
  • Page 2 APPLICATIONS BUICK CHEVROLET SATURN Enclave 2008-2017 Avalanche* † 2007-2013 Acadia 2007-2016 Outlook 2007-2010 Lucerne 2006-2011 Captiva Sport 2012-2014 Acadia Limited 2017 2008-2010 Cadillac Equinox 2007-2009 Savana** 2008-up SUZUKI DTS‡ 2006-2011 Express** 2008-up Sierra 2500/3500* † 2014 XL-7 2007-2009 Escalade‡ 2007-2011 Impala Limited 2014 Sierra (new body)* †...
  • Page 3 Note: If installing either an ASWC-1 or AX-LCD (both sold separately), connect the (2) Red • Connect the Blue/Pink wire to the speed sense wire (V.S.S.), if applicable. wires from the GMOS-LAN-012 harness as well. • Connect the Green/Purple wire to the reverse wire, if applicable.
  • Page 4 • Connect the RCA jacks to the audio AUX-IN (if so equipped). Note: The relay attached to the GMOS-LAN-012 harness is only for audible turn signal clicks. Note: This will only be required if you care to retain the factory AUX-IN, or satellite radio.
  • Page 5 • With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the audio • If an ASWC-1 (sold separately) will be used, do not connect it until the GMOS-LAN-012 is level; counterclockwise to lower the audio level. programmed and fully functional.
  • Page 6 • Listed below are the functions of the steering wheel control buttons while accessing the advanced features: • If the vehicle comes equipped with AUX-IN, rear seat entertainment, or satellite radio, the GMOS-LAN-012 can retain these features. • SEEK UP – Scrolls menu up. Notes when retaining the AUX-IN: •...
  • Page 7 The button is accessible outside the Axxess interface, no need to open the Axxess interface. 2. Press and hold the reset button for (2) seconds, then let go to reset the Axxess interface. 3. Refer to “Programming the GMOS-LAN-012” from this point.
  • Page 8 GMOS-LAN-012 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
