Axxess XSVI-6523-NAV Installation Instructions Manual

Axxess XSVI-6523-NAV Installation Instructions Manual

Chrysler data interface 2013-up

Advertisement

Quick Links

Chrysler Data Interface 2013-up
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Can be used in both amplified and non-amplified models
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Pre-wired ASWC-1 harness (ASWC-1 sold separately)
• Retains the factory backup camera (if displayed through the OE radio)
• Retains the 3.5mm AUX-IN jack
• Retains balance and fade
• Micro "B" USB updatable
CHRYSLER
200 LX
2015-up
DODGE
Dart (small screen option)
2013-up
Axxess Integrate
Installation instructions for part XSVI-6523-NAV
XSVI-6523-NAV
INTERFACE FEATURES
APPLICATIONS
FIAT
500L
2014-up
500X
2016-up
JEEP
Cherokee Sport
2014-up
Renegade
2015-up
RAM
1500/2500/3500
(small screen option) 2013-up
Chassis Cab 3500/4500/5500
(small screen option) 2013-up
Promaster
2014-up
Promaster City
2015-up
TABLE OF CONTENTS
Connections to be made ................................................... 2
Installing the XSVI-6525-NAV .......................................... 3
Initializing the XSVI-6525-NAV ........................................ 3

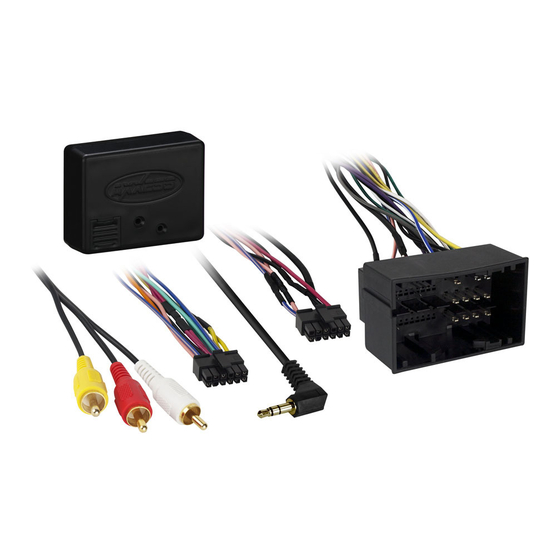

INTERFACE COMPONENTS
• XSVI-6523-NAV interface • XSVI-6523-NAV harness
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.

Advertisement

loading
Need help?

Need help?

Do you have a question about the XSVI-6523-NAV and is the answer not in the manual?

Questions and answers

Summary of Contents for Axxess XSVI-6523-NAV

  • Page 1 • Provides accessory power (12-volt 10-amp) INTERFACE COMPONENTS • Retains R.A.P. (retained accessory power) • XSVI-6523-NAV interface • XSVI-6523-NAV harness • Can be used in both amplified and non-amplified models • Provides NAV outputs (parking brake, reverse, and speed sense) TOOLS REQUIRED •...
  • Page 2 XSVI-6523-NAV Connections to be made From the XSVI-6523-NAV harness to the aftermarket radio: The following (3) wires are only for multimedia/navigation radios that require these wires. • Connect the Black wire to the ground wire. • Connect the Blue/Pink wire to the VSS/speed sense wire.
  • Page 3 Attention! If the interface loses power for any reason, the following steps will need to be performed again. Also, if installing an ASWC-1 connect it after you initialize and test the • Connect the XSVI-6523-NAV harness into the interface, and then to the harness in interface/radio, with the key in the off position.
