Axxess AX-CAM6V Installation Manual

AX-CAM6V

12-volt to 6-volt Step-Down Converter

FEATURES

• Converts 12-volts DC to 6-volts DC to provide proper voltage
for a 6-volt factory backup camera.

INTERFACE COMPONENTS

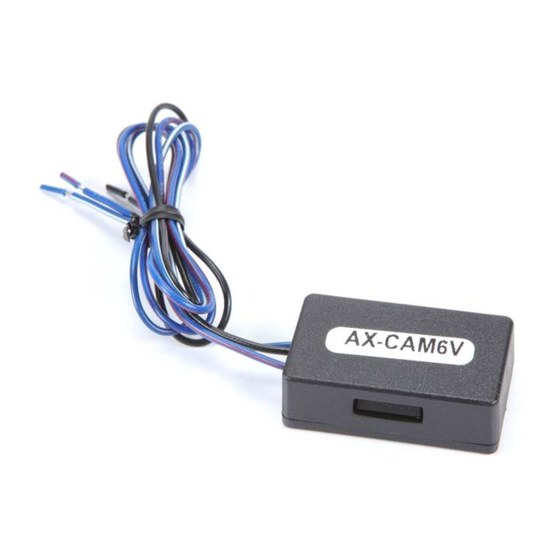

• AX-CAM6V converter/harness with stripped leads

TOOLS REQUIRED

• Cutting tool • Tape • Crimping tool
• Connectors (i.e. butt-connectors, bell caps, etc.)
Axxess Integrate
Installation Instructions for AX-CAM6V
CAUTION!
Metra recommends disconnecting the negative battery terminal before beginning any installa -
tion, unless the vehicle manufacturer recommends against so. Please check with your local Dealership for
more information. All accessories, switches, climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the factory
radio with the key in the on position, or the vehicle running. It would be best to remove the key from the
ignition and then wait a few seconds before removing the factory radio.

CONNECTIONS TO BE MADE

• Connect the Black wire to ground.
• Connect the Blue/White wire to the 12-volt reverse wire.
• Connect the Blue/Red wire to the factory camera power wire.
