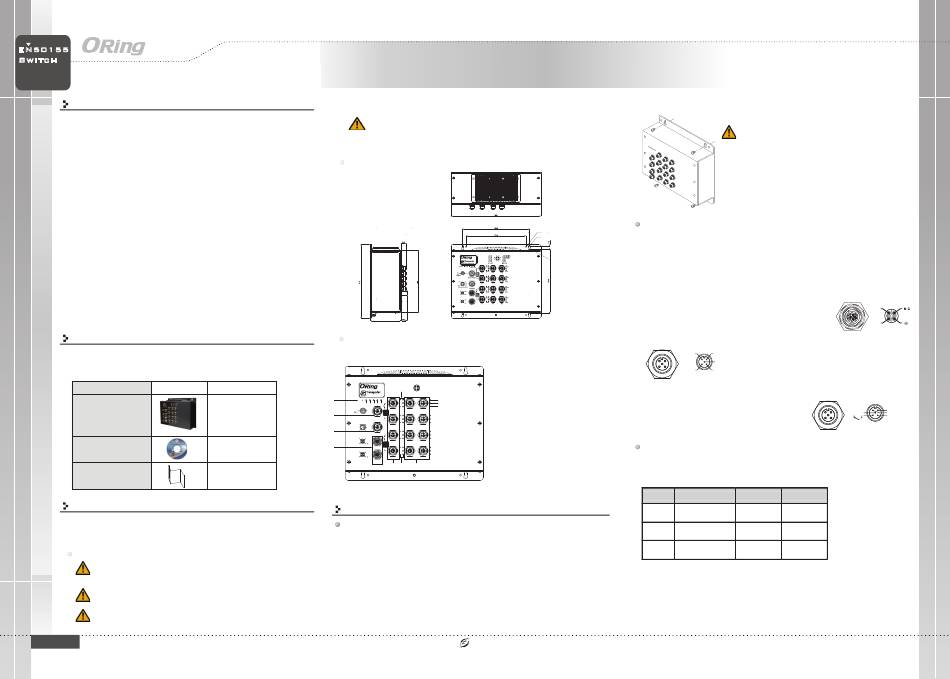

ORiNG TGPS-9084GT-M12X-BP2-24V Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation
Introduction
T M
ORing's Transporter series managed PoE Ethernet switches are
designed for industrial applications, such as rolling stock, vehicle, and
r a i l w a y a p p l i c a t i o n s . T G P S - 9 0 8 4 G T- M 1 2 X - B P 2 - 2 4 V
Redundant Ring Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and
4x10/100/1000Base-T(X) ports which is specifically designed for the
toughest and fully compliant with EN50155 requirement. The switch support
Ethernet Redundancy protocol, O-Ring
units of connection), O-Chain, MRP *NOTE
802.1s/w/D) can protect your mission-critical applications from network
interruptions or temporary malfunctions with its fast recovery technology.
TGPS-9084GT-M12X-BP2-24V also support Power over Ethernet, a system
to transmit electrical power up to 30 watts, along with data, to remote
devices over standard twisted-pair cable in an Ethernet network. Each
TGPS-9084GT-M12X-BP2-24V switch has 8x10/100/1000Base-T(X) P.S.E.
(Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for
instance) that will provide power in a PoE connection. TGPS-9084GT-
M12X-BP2-24V includes 2 sets of bypass ports that protect the network
from failures and Network maintenance by ensuring network integrity during
power loss. And support wide operating temperature from -40 C to 75 C.
TGPS-9084GT-M12X-BP2-24V can also be managed centralized and
convenient by Open-Vision, Except the Web-based interface, Telnet and
console (CLI) configuration. Therefore, the switch is one of the most
reliable choices for EN50155 highly-managed Ethernet application.
*NOTE: This function is available by request only.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
TGPS-9084GT-M12X-BP2-24V
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the
package contents available and a PC with Microsoft Internet Explorer 6.0 or
later, for using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe
operation of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Q I G
TGPS-9084GT-M12X-BP2-24V
TGPS-9084GT-M12X-BP2-24V
G
uide
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
i s m a n a g e d
should be used when addressing this concern.

Dimension

(recovery time < 30ms over 250
and MSTP/RSTP/STP (IEEE
o o

Panel Layouts

Number
TGPS-9084GT-M12X-BP2-24V
1 Reset
PWR1 PWR2 R.M. Ring Fault
2 3 4 5 6
Relay
N.C.
1
3A@24VDC
16
Relay Output
RXD TXD
N.C.
15 RSVD GND
RS-232, 115200bps, 8, N, 1
Console
V1+ N.C
V1-
7
1 Power1
V2+ N.C
V2-
Power2
1

Installation

Wall-mount

The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screws to the wall with a screwdriver.
Step 3: Slide the
1907-200-K9084X2241-FX011
Unit =mm (Tolerance ±0.5mm)
Ø4.0
Ø5.0
Ø8.0
24
Reset
PWR1 PWR2 R.M.
V1+
V1-
Power1
V2+
V2-
Power2
89.6

Front View

1. Reset button
2. Power1 status LED
3. Power2 status LED
1 BI_DA+ 4 5 1 BI_DA+ / PoE Vout+ 4. R.M. status LED
2 BI_DA- 2 BI_DA- / PoE Vout+
3 BI_DB+ 3 6 3 BI_DB+ / PoE Vout-
4 BI_DB- 4 BI_DB- / PoE Vout-
10 5 BI_DD+ 2 7 5 BI_DD+
6 BI_DD- 6 BI_DD-
5. Ring status LED
7 BI_DC- 1 8 7 BI_DC-
8 BI_DC+ 8 BI_DC+
G1~G4 G5~G12
6. Fault LED
12
LNK/ACT LNK/ACT
13
7. Power connector
PoE PoE
14
Speed Speed
G4 G8 P12
Power Power 8. Non-PoE Gigabit Ethernet ports (with
Failure Failure
Bypass Bypass
LNK/ACT LNK/ACT bypass for -BP2 model)
PoE PoE
Speed Speed 9. PoE-enabled Gigabit Ethernet ports
G3 G7 G11
10. Link/ACT LED for non-PoE Gigabit ports
LNK/ACT LNK/ACT
PoE PoE
11. Speed LED for non-PoE Gigabit ports
Speed Speed
G2 G6 G10
Power
Failure 12. Link/ACT LED for PoE-enabled Gigabit
Bypass
LNK/ACT LNK/ACT
ports
PoE PoE
Speed Speed
13. PoE indicator for PoE-enabled Gigabit
G1 G5 G9
8 11 9 ports
14. Speed LED for PoE-enabled Gigabit ports
15. Console port
16. Relay output port
d evice upright against the wall
evice downwards and tighten the four screws for added stability.
d
PRINTED ON RECYCLED PAPER
EN50155 12-port managed
Gigabit PoE Ethernet switch
Instead of screwing the screws in all the way, it is advised
to leave a space of about 2mm to allow room for sliding the
switch between the wall and the screws.

Wiring

For pin assignments of power, console and relay output ports, please refer to the following tables.

Grounding

Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.

Power port pinouts

The device supports two sets of power supplies and uses the M12 S-
coded 4-pin male connector on the front panel for power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.

Console port pinouts

RXD TXD
N.C.
RSVD GND
RS-232, 115200bps, 8, N, 1

Relay output port pinouts

The switch uses the M12 A-coded 5-pin female connector
on the front panel for relay output. Use a cable with an M12
A-coded 5-pin male connector to connect the relay. The
relay contacts will detect user-configured events and form
an close circuit when an event is triggered.

Network Connection

The switch has eight 10/100/1000Base-T(X) PoE and four 10/100/1000Base-T(X) non-PoE
Ethernet ports in the form of M12 connector. Depending on the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to network devices (PCs, servers, switches, routers, or hubs). Please
refer to the following table for cable specifications.
Cable Type Max. Length Connector
8-pin female M12
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
X-coding connector
8-pin female M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
X-coding connector
8-pin female M12
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
X-coding connector
Quick Installation Guide
Version 1.1
V1+
V1-
Relay N.C.
3A@24VDC
