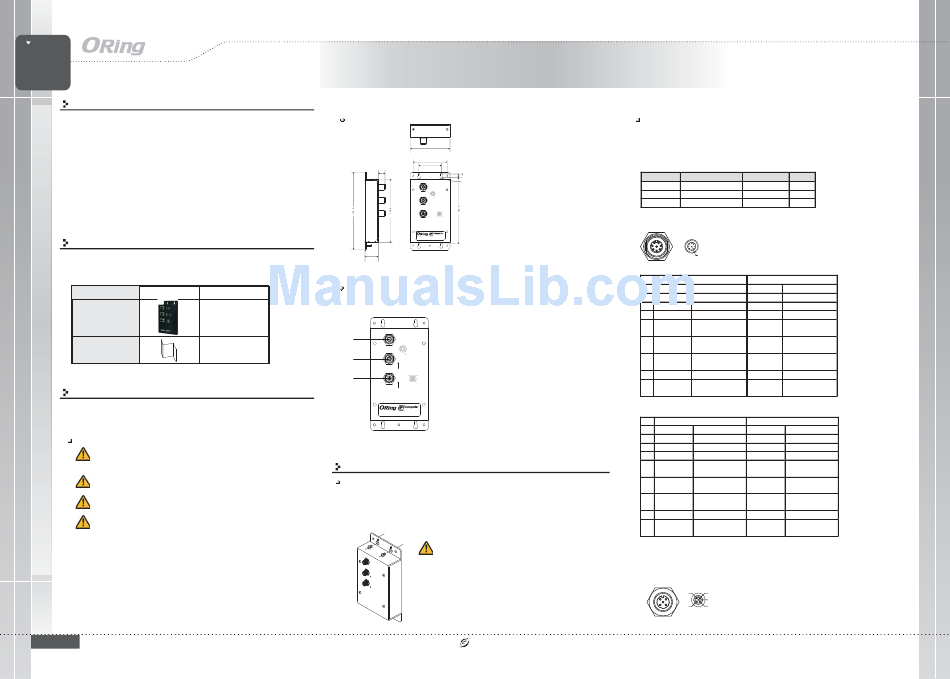

ORiNG TINJ-101GT-M12 Quick Installation Manual

EN50155
PoE PoE
INJECTOR INJECTOR
Q I
uick nstallation
I N D U S T R I A L
Introduction
The TINJ-101GT-M12 is a PoE injector designed for industrial
environments, especially for rolling stock, vehicle, and railway applications
due to its EN50155 compliance and M12 connectors. With one
10/100/1000 Base-T(X) port compliant with IEEE802.3at/af standards, the
TINJ-101GT-M12 is equipped with intelligent detection function. As a
result, the devices will not turn on power until it detects a valid PoE
signature from the connected PoE devices. This function can protect non-
PoE compliant equipment connected to the same Ethernet cable from
damage and allow only IEEE 802.3at/802.3af compliant devices to be
powered by the PoE injector. The PoE injector can function with any P.D.
equipment which is fully compliant with IEEE 802.3at/802.3af PoE standards.
Package Contents
The product is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures
TINJ-101GT-M12 or
TINJ-101GT-M12-24V
QIG
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
TINJ-101GT-M12
TINJ-101GT-M12
G
uide
Dimension
15.0
40.0
Panel Layouts
Number
Front View
1
1
1
2
3
Installation
Wall-mount
The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screw to the wall with a screwdriver.
Step 3: Slide the
1907-2-29-TINJ101GTM12-1.0
88.9
73.9
44.4
R2.5
R4.00
1 DC+
2 DD+
3 DD-
4 DA-
5 DB+
6 DA+
7 DC-
8 DB-
1 2
Data IN
7 3
6 4
5 8
1 DC+
2 DD+
3 DD-
4 DA- / PoE Vout+
5 DB+ / PoE Vout-
PoE 6 DA+ / PoE Vout+
7 DC-
8 DB- / PoE Vout-
PoE OUT
N.C. V+
N.C.
V-
PWR N.C.
PWR
TINJ-101GT-M12
1. Data input port
1 DC+
2 DD+
2. PoE port
3 DD-
4 DA-
5 DB+
6 DA+
7 DC-
3. Power input port
8 DB-
1 2
Data IN
7 3 4. PoE status LED
6 4
5 8
1 DC+
5. Power status LED
2 DD+
3 DD-
4 DA- / PoE Vout+
5 DB+ / PoE Vout-
6 DA+ / PoE Vout+
PoE
7 DC-
8 DB- / PoE Vout-
PoE OUT
4
N.C. V+
N.C.
PWR V- N.C.
PWR
5
TINJ-101GT-M12
d evice upright against the wall
d evice downwards and tighten the four screws for added stability.
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the switch
between the wall and the screws.
PRINTED ON RECYCLED PAPER
EN50155 Industrial PoE Injector
Network Connection
The device provides one data input port and one PoE data output port in M12 connector. According
to the link type, the device uses CAT 3, 4, 5, 5e UTP cables to connect to any other network
devices (Pcs, servers, switches, routers, or hubs). Please refer to the following table for cable
specifications.
Cable Types and Specifications:
Cable Type Max. Length Connector
10BASE-TX Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) M12
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft) M12
For pin assignments of the LAN ports, please refer to the following tables.
1 DC+
1 2 2 DD+
3 DD-
7 3 4 DA- / PoE Vout+
5 DB+ / PoE Vout-
6 4 6 DA+ / PoE Vout+
7 DC-
5 8
8 DB- / PoE Vout-
10/100 Base-T(X)
M12 Input (Data Only) M12 Output (Data and Power)
Pin Symbol Description Symbol Description
1 NC Not Connected NC Not Connected
2 NC Not Connected NC Not Connected
3 NC Not Connected NC Not Connected
Data Receive and
4 Rx- Data Receive Rx- (Vdc+)
Feeding power(+)
Data Transmit and
5 Tx+ Data Transmit Tx+ (Vdc-)
Feeding power(-)
Data Receive and
6 Rx+ Data Receive Rx+ (Vdc+)
Feeding power(+)
7 NC Not Connected NC Not Connected
Data Transmit and
8 Tx- Data Transmit Tx- (Vdc-)
Feeding power(-)
1000 Base-T
M12 Input (Data Only) M12 Output (Data and Power)
Pin Symbol Description Symbol Description
BI_DC+ BI_DC+
1 Data BI_DC+ Data BI_DC+
2 BI_DD+ Data BI_DD+ BI_DD+ Data BI_DD+
BI_DD- BI_DD-
3 Data BI_DD- Data BI_DD-
BI_DA- Data BI_DA- and
4 BI_DA- Data BI_DA-
(Vdc+)
Feeding Power(+)
BI_DB+ Data BI_DB+ and Feeding
5 BI_DB+ Data BI_DB+
(Vdc-) Power(-)
BI_DA+ Data BI_DA+ and Feeding
6 BI_DA+ Data BI_DA+
(Vdc+) Power(+)
7 BI_DC- Data BI_DC- BI_DC- Data BI_DC-
BI_DB- Data BI_DB- and
8 BI_DB- Data BI_DB-
(Vdc-) Feeding Power(-)
Power inputs
The device provides one set of power supply using the M12 5-pin female
connector on the front panel. Please refer to the following figure for pin
assignments.
V+
N.C.
N.C.
V- N.C.
Quick Installation Guide
Version 1.0
