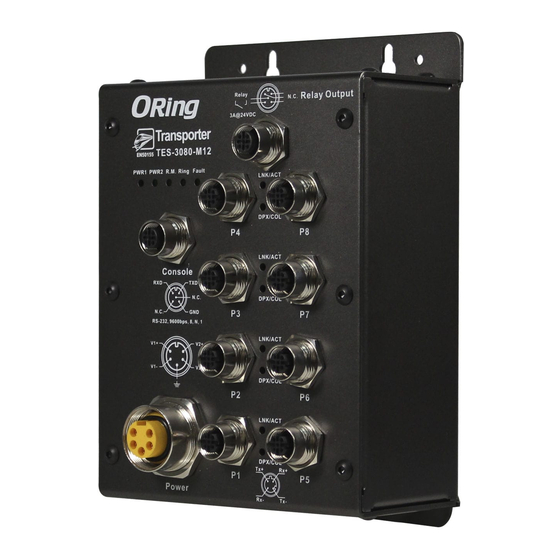

ORiNG TES-3080-M12 Series User Manual

Industrial management ethernet switch
Hide thumbs Also See for TES-3080-M12 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

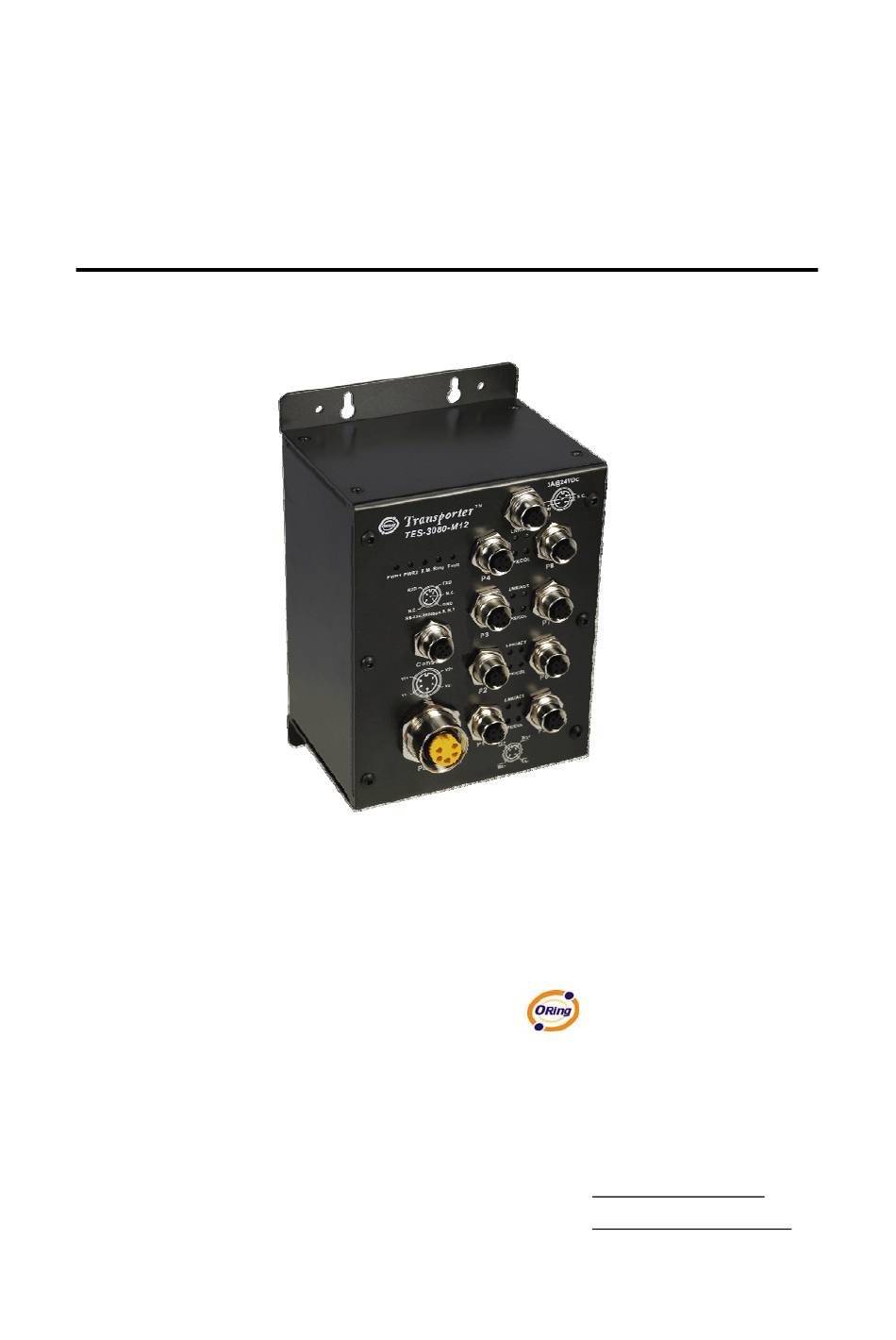

Industrial
Management Ethernet Switch
TES-3080-M12 Series User's Manual
Version 1.0
May, 2011.
ORing Industrial Networking Corp.
4F., NO.3, Lane235, Baociao Rd.Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel: + 886 2 2918 3036
Fax: + 886 2 2918 3084
Website: www.oring-networking.com
E-mail:
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TES-3080-M12 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG TES-3080-M12 Series

Summary of Contents for ORiNG TES-3080-M12 Series

  • Page 1 Industrial Management Ethernet Switch TES-3080-M12 Series User’s Manual Version 1.0 May, 2011. ORing Industrial Networking Corp. 4F., NO.3, Lane235, Baociao Rd.Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com E-mail: support@oring-networking.com...

  • Page 2: Table Of Contents

    TES-3080-M12 Series User’s Manual Table of Content Getting to Know Your Switch................4 About the TES-3080-M12 Industrial Switch..............4 Software Features ......................4 Hardware Features......................5 Hardware Installation..................6 Wall Mounting Installation....................6 2.1.1 Mount TES-3080-M12 on the wall...................6 Hardware Overview..................0 Front Panel ..........................0 Front Panel LEDs .......................2 Bottom Panel ..................錯誤! 尚未定義書籤。...
  • Page 3 TES-3080-M12 Series User’s Manual 5.1.4.8 Upgrade Firmware ....................14 5.1.5 DHCP Server ........................14 5.1.5.1 DHCP Server – Setting..................14 5.1.5.2 DHCP Server – Client List..................15 5.1.5.3 DHCP Server – Port and IP bindings ..............16 5.1.6 Port Setting ........................16 5.1.6.1 Port Control......................16 5.1.6.2 Port Status ......................17...
  • Page 4 TES-3080-M12 Series User’s Manual 5.1.14.2 MAC Address Aging .....................52 5.1.14.3 Port Statistics......................53 5.1.14.4 Port Monitoring.....................54 5.1.14.5 System Event Log ....................55 5.1.14.6 Ping ........................56 5.1.15 Save Configuration ....................56 5.1.16 Factory Default ......................57 5.1.17 System Reboot ......................57 Command Line Interface Management ............58 About CLI Management ....................58...

  • Page 5: Getting To Know Your Switch

    Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-3080-M12 series can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range...

  • Page 6: Hardware Features

    TES-3080-M12 Series User’s Manual Web-based ,Telnet, and Console (CLI) M12 connectors to guarantee reliable operation against environmental disturbances Wall mounting enabled 1.3 Hardware Features Redundant dual DC power inputs Wide Operating Temperature : -40 to 70 Storage Temperature: -40 to 85...

  • Page 7: Hardware Installation

    Each switch has another installation method for users to fix the switch. A wall mount panel can be found in the package. The following steps show how to mount the switch on the wall. 2.1.1 Mount TES-3080-M12 series on the wall ORing Industrial Networking Corp...
  • Page 8 TES-3080-M12 Series User’s Manual The screws specification shows in the following two pictures. In order to prevent switches from any damage, the screws should not larger than the size that used in TES-3080-M12 series switches. Pozidrive ORing Industrial Networking Corp...

  • Page 9: Hardware Overview

    Overview 3.1 Front Panel The following table describes the labels that stick on the TES-3080-M12 series. Port Description 10/100 RJ-45 fast 10/100 Base-T(X) Ports on M12 (D-coding) Auto MDI/MDIX Ethernet ports auto-negotiation. Default Setting : Speed: auto Duplex: auto Flow control : disable RS-232 in M12 connector.
  • Page 10 TES-3080-M12 Series User’s Manual TES-3080-M12 1. Relay output to carry capacity of 3A at 24VDC on M12 connector (D-coding) 2. 10/100Base-T(X) Ethernet ports on M12. 3. LED for Ethernet ports Link/ ACT status. 4. LED for Ethernet ports Duplex / Collision status.

  • Page 11: Front Panel Leds

    TES-3080-M12 Series User’s Manual 3.2 Front Panel LEDs Color Status Description Green DC power module 1 activated. Green DC power module 2 activated. Green O-Ring Master. O-Ring enabled. Ring Green Slowly blinking O-Ring topology has problem Fast blinking O-Ring work normally.

  • Page 12: Cables

    Rx + 4.2 Console Cable TES-3080-M12 series switches can be management by console port. The DB-9 to M12 cable can be found in the package. You can connect them to PC via a RS-232 cable with DB-9 female connector and the other end (M12 connector) connects to console port of switch.

  • Page 13: Web Management

    TES-3080-M12 Series User’s Manual EB Management 5.1 Configuration by Web Browser This section introduces the configuration by Web browser. 5.1.1 About Web-based Management An embedded HTML web site resides in flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.
  • Page 14 TES-3080-M12 Series User’s Manual The login screen appears. Key in the username and password. The default username and password is “admin”. Click “Enter” or ”OK” button, then the main interface of the Web-based management appears. Login screen Main Interface Main interface...

  • Page 15: System Information

    , PWR1, and PWR2 LEDs of the switch will start to flash together, and click , the LEDs will stop flashing. 5.1.3 Front Panel Show the panel of TES-3080-M12 series. Click “Close” to close panel on web. ORing Industrial Networking Corp...

  • Page 16: Basic Setting

    TES-3080-M12 Series User’s Manual 5.1.4 Basic setting 5.1.4.1 Switch Setting Switch setting interface The following table describes the labels in this screen. Label Description System Name Assign the name of switch. The maximum length is 64 bytes System Description Display the description of switch.

  • Page 17: Admin Password

    TES-3080-M12 Series User’s Manual 5.1.4.2 Admin Password Change web management login username and password for the management security issue Admin Password interface The following table describes the labels in this screen. Label Description User name Key in the new username (The default is “admin”) New Password Key in the new password (The default is “admin”)

  • Page 18: Time Setting

    TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description To enable or disable the DHCP client function. When DHCP DHCP Client client function is enabling, the switch will be assigned the IP address from the network DHCP server. The default IP address will be replaced by the IP address which the DHCP server has assigned.
  • Page 19 TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description SNTP Client Enable or disable SNTP function to get the time from the SNTP server. Daylight Saving Time Enable or disable daylight saving time function. When daylight saving time is enabling, you need to configure the daylight saving time period.
  • Page 20 TES-3080-M12 Series User’s Manual CET - Central European FWT - French Winter MET - Middle European +1 hour 1 pm MEWT - Middle European Winter SWT - Swedish Winter EET - Eastern European, +2 hours 2 pm USSR Zone 1...

  • Page 21: Lldp

    TES-3080-M12 Series User’s Manual ending time. Both will be different each year. Period Daylight Saving Set up the offset time. Offset Switch Timer Display the switch current time. Apply Click “Apply” to activate the configurations. PTP Client The Precision Time Protocol (PTP) is a time-transfer protocol defined in the IEEE 1588-2002 standard that allows precise synchronization of networks (e.g., Ethernet).

  • Page 22: Auto Provision

    TES-3080-M12 Series User’s Manual 5.1.4.6 Auto Provision Auto Provision allows you to update the switch firmware automatically. You can put firmware or configuration file on TFTP server. When you reboot the switch, it will upgrade automatically. Before updating, make sure you have your TFTP server ready and the firmware image and configuration file is on the TFTP server.

  • Page 23: Upgrade Firmware

    TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description TFTP Server IP Fill in the TF TP server IP Address Restore File Name Fill the file name. Restore Click “restore” to restore the configurations.

  • Page 24: Dhcp Server - Client List

    TES-3080-M12 Series User’s Manual DHCP Server Configuration interface The following table describes the labels in this screen. Label Description DHCP Server Enable or Disable the DHCP Server function. Enable – the switch will be the DHCP server on your local network Start IP Address The dynamic IP assign range.

  • Page 25: Dhcp Server - Port And Ip Bindings

    TES-3080-M12 Series User’s Manual DHCP Server Client Entries interface 5.1.5.3 DHCP Server – Port and IP bindings You can assign the specific IP address which is in the assigned dynamic IP range to the specific port. When the device is connecting to the port and asks for dynamic IP assigning, the system will assign the IP address that has been assigned before in the connected device.

  • Page 26: Port Status

    TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description Port NO. Port number for setting. Speed/Duplex You can set Auto-negotiation, 100 full, 100 half, 10 full or 10 half Flow Control Support symmetric and asymmetric mode to avoid packet loss when congestion occurred.

  • Page 27: Rate Limit

    TES-3080-M12 Series User’s Manual 5.1.6.4 Rate Limit By this function, you can limit traffic of all ports, including broadcast, multicast and flooded Unicast. You can also set “Ingress” or “Egress” to limit traffic received or transmitted bandwidth. Rate Limit interface...

  • Page 28: Port Trunk

    TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description Ingress Limit Frame You can set “all”, “Broadcast only”, ”Broadcast/Multicast” Type or ”Broadcast/Multicast/Flooded Unicast” mode. Ingress The switch port received traffic. The switch port transmitted traffic.

  • Page 29: Redundancy

    TES-3080-M12 Series User’s Manual Port Trunk – Status You can check the configuration of port trunk. Port Trunk - Status interface 5.1.7 Redundancy 5.1.7.1 O-Ring O-Ring is one of the most powerful Redundant Ring technologies in the world. recovery time of O-Ring is less than 10 ms over 250 units of connections. It can reduce unexpected malfunction caused by network topology change.

  • Page 30: Open-Ring

    Open-Ring Open-Ring technology can be applied for other vendor’s proprietary ring. Thus, you can add switches of ORing into the network constructed by other ring technology and enable Open-Ring to co-operate with other vendor’s managed switch. ORing Industrial Networking Corp...
  • Page 31 TES-3080-M12 Series User’s Manual Click ”Connect to other vendor’s ring…..” to join the ring constructed by other vendor. Open-Ring interface Label Description Enable Enabling the Open-Ring function Vender Choosing the venders that you want to join to their ring Ring Port...

  • Page 32: O-Rstp

    TES-3080-M12 Series User’s Manual 5.1.7.3 O-RSTP O-RSTP is proprietary redundant ring technology invented by ORing. Different from standard STP/RSTP, the recovery time of O-RSTP is less than 10mS and support more nodes of connection in a ring topology. O-RSTP interface The application of O-RSTP is shown as below.

  • Page 33: Rstp

    TES-3080-M12 Series User’s Manual 5.1.7.4 RSTP The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol (STP). It provides faster convergence of spanning tree after a topology change. The system also supports STP and the system will detect the connected device that is running STP or RSTP protocol automatically.
  • Page 34 TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description RSTP mode You must enable or disable RSTP function before configuring the related parameters. Priority (0-61440) A value used to identify the root bridge. The bridge with the lowest value with the highest priority and is selected as the root.

  • Page 35: Mstp

    TES-3080-M12 Series User’s Manual included for “False“ setting. Apply Click “Apply” to activate the configurations. NOTE: Follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time: 2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1) RSTP Information Show RSTP algorithm result at this table.
  • Page 36 TES-3080-M12 Series User’s Manual MSTP Setting interface The following table describes the labels in this screen. Label Description You must enable or disable MSTP function before configuring the MSTP Enable related parameters. Force Version The Force Version parameter can be used to force a VLAN Bridge that supports RSTP to operate in an STP-compatible manner.
  • Page 37 TES-3080-M12 Series User’s Manual name. The same MST Region must have the same revision level. Revision Level (0-65535) Priority (0-61440) A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root.
  • Page 38 TES-3080-M12 Series User’s Manual Label Description Selecting the port that you want to configure. Port No. Decide which port should be blocked by priority in LAN. Enter a Priority (0-240) number 0 through 240. The value of priority must be the multiple...

  • Page 39: Vlan

    TES-3080-M12 Series User’s Manual must be multiple of 4096 according to the protocol standard rule. Apply Click “Apply” to activate the configurations. MSTP Instance Port interface Label Description Set the insta nce’s information except CIST Instance Selecting the port that you want to configure.

  • Page 40: Vlan Setting

    TES-3080-M12 Series User’s Manual 5.1.8.1 VLAN Setting Tagged-based VLAN is an IEEE 802.1Q specification standard, and t is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.

  • Page 41: Vlan Setting - Port Based

    TES-3080-M12 Series User’s Manual Mode Enable/Disable GVRP function. GVRP Mode Management VLAN provide network administrator a secured Management VLAN VLAN to management Switch. Only the devices in the management VLAN can access the switch. Link type There are 3 types of link type: Access Link: single switch only, allows you to group ports by setting the same VID.
  • Page 42 TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description Click “add” to enter VLAN add interface. Edit Edit exist VLAN Delete Delete exist VLAN Help Show help file. VLAN Configuration – Port Base interface-2 The following table describes the labels in this screen.

  • Page 43: Snmp

    TES-3080-M12 Series User’s Manual 5.1.9 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 44: Snmp - Trap Setting

    TES-3080-M12 Series User’s Manual servers access objects with read-only or read/write permissions with the community default string public/private. SNMP V3 requires an authentication level of MD5 or DES to encrypt data to enhance data security. SNMP V1/V2c SNMP Community should be set for SNMP V1/V2c. Four sets of "Community String/Privilege"...

  • Page 45: Traffic Prioritization

    5.1.10 Traffic Prioritization Traffic Prioritization includes 3 modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, you can classify the traffic into four classes for differential network application. TES-3080-M12 series supports 4 priority queues. Polocy Setting interface ORing Industrial Networking Corp...
  • Page 46 TES-3080-M12 Series User’s Manual Label Description QoS Mode Port-base: the output priority is determined by ingress port. COS only: the output priority is determined by COS only. TOS only: the output priority is determined by TOS only. COS first: the output priority is determined by COS and TOS, but COS first.
  • Page 47 TES-3080-M12 Series User’s Manual Label Description Assign Port with a priority queue. 4 priority queues can be Port base Priority assigned: High, Middle, Low, and Lowest. Help Show help file. Apply Click “Apply” to activate the configurations. COS/802.1p interface ORing Industrial Networking Corp...
  • Page 48 TES-3080-M12 Series User’s Manual Label Description COS (Class Of Service) is well known as 802.1p. It describes COS/802.1p that the output priority of a packet is determined by user priority field in 802.1Q VLAN tag. The priority value is supported 0to7.COS value map to 4 priority queues: High, Middle, Low, and...

  • Page 49: Multicast

    TES-3080-M12 Series User’s Manual 5.1.11 Multicast 5.1.11.1 IGMP Snooping Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2 and v3. Please refer to RFC 1112, 2236 and 3376. IGMP Snooping improves the performance of networks that carry multicast traffic.

  • Page 50: Security

    TES-3080-M12 Series User’s Manual Multicast Filtering interface The following table describes the labels in this screen. Label Description Assign a multicast group IP address in the range of 224.0.0.0 ~ IP Address 239.255.255.255 Member Ports Tick the check box beside the port number to include them as the member ports in the specific multicast group IP address.

  • Page 51: Ip Security

    TES-3080-M12 Series User’s Manual 5.1.12.1 IP Security IP security can enable/disable remote management from WEB or Telnet or SNMP. Additionally, IP security can restrict remote management to some specific IP addresses. Only these secure IP addresses can manage this switch remotely.

  • Page 52: Port Security

    TES-3080-M12 Series User’s Manual Click “Apply” to activate the configurations. Apply Show help file. Help 5.1.12.2 Port Security Port security is to add static MAC addresses to hardware forwarding database. If port security is enabled at Port Control page, only the frames with MAC addresses in this list will be forwarded, otherwise will be discarded.

  • Page 53: 802.1X

    TES-3080-M12 Series User’s Manual MAC Blacklist interface The following table describes the labels in this screen. Label Description Input MAC Address to add to MAC Blacklist. MAC Address Select port of switch. Port NO. Add an entry to Blacklist table.
  • Page 54 TES-3080-M12 Series User’s Manual 802.1x Radius Server interface The following table describes the labels in this screen. Label Description Radius Server Setting The IP address of the authentication server. Radius Server IP Server port Set the UDP port number used by the authentication server to authenticate.
  • Page 55 TES-3080-M12 Series User’s Manual Set the period of time the switch waits for a supplicant response Supplicant Timeout to an EAP request. Server Timeout Set the period of time the switch waits for a Radius server response to an authentication request.

  • Page 56: Warning

    TES-3080-M12 Series User’s Manual Disable: this port will not participate in 802.1x. Apply Click “Apply” to activate the configurations. Help Show help file. 802.1x-Port Authorized State Show 802.1x port authorized state. 802.1x Port Authorize State interface 5.1.13 Warning Warning function is very important for managing switch. You can manage switch by SYSLOG, E-MAIL, and Fault Relay.

  • Page 57: System Alarm

    TES-3080-M12 Series User’s Manual Fault Alarm interface The following table describes the labels in this screen. Label Description Mark the blank of PWR 1 or PWR 2 to monitor. Power Failure Mark the blank of port 1 to port 8 to monitor.
  • Page 58 TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description SYSLOG Mode Disable: disable SYSLOG. Client Only: log to local system. Server Only: log to a remote SYSLOG server. Both: log to both of local and remote server.
  • Page 59 TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description E-mail Alarm Enable/Disable transmission system warning events by e-mail. Sender E-mail The SMTP server IP address Address Mail Subject The Subject of the mail Authentication Username: the authentication username.
  • Page 60 TES-3080-M12 Series User’s Manual System Warning – Event Selection interface The following table describes the labels in this screen. Label Description System Event Alert when system restart System Cold Start Power Status Alert when a power up or down SNMP Authentication Alert when SNMP authentication failure.

  • Page 61: Monitor And Diag

    5.1.14.2 MAC Address Aging You can set MAC Address aging timer, as time expired, the unused MAC will be cleared from MAC table. TES-3080-M12 series also support Auto Flush MAC Address Table When ports Link Down. ORing Industrial Networking Corp...

  • Page 62: Port Statistics

    TES-3080-M12 Series User’s Manual MAC Address Aging interface The following table describes the labels in this screen. Label Description MAC Address Table Set the aging time for MAC table. The value is between 0 and Aging Time 3825. Default setting is 300 secs.

  • Page 63: Port Monitoring

    TES-3080-M12 Series User’s Manual Show ports enable or disable. State The number of good packets sent by this port. TX GOOD Packet The number of bad packets sent by this port. TX Bad Packet RX GOOD Packet The number of good packets received by this port.

  • Page 64: System Event Log

    TES-3080-M12 Series User’s Manual The frames come into switch port. The frames receive by switch port. Apply Click “Apply” to activate the configurations. Clear Clear all marked blank.(disable the function) Help Show help file. 5.1.14.5 System Event Log If system log client is enabled, the system event logs will be shown in this table.

  • Page 65: Ping

    TES-3080-M12 Series User’s Manual 5.1.14.6 Ping Ping function allows the switch to send ICMP packets to detect the remote notes. Ping interface The following table describes the labels in this screen. Label Description IP Address Enter the IP address that you want to detect.

  • Page 66: Factory Default

    TES-3080-M12 Series User’s Manual The following table describes the labels in this screen. Label Description Save Save all configurations. Help Show help file. 5.1.16 Factory Default Factory Default interface Reset switch to default configuration. Click Reset to reset all configurations to the default value.

  • Page 67: Command Line Interface Management

    TES-3080-M12 Series User’s Manual ommand Line Interface Management About CLI Management Besides WEB-base management, TES-3080-M12 series also support CLI management. You can use console or telnet to management switch by CLI. CLI Management by RS-232 Serial Console (9600, 8, none, 1, none) Before Configuring by RS-232 serial console, use an M12 to DB9-F cable to connect the Switches’...
  • Page 68 TES-3080-M12 Series User’s Manual Step 2. Input a name for new connection Step 3. Select to use COM port number ORing Industrial Networking Corp...
  • Page 69 TES-3080-M12 Series User’s Manual Step 4. The COM port properties setting, 9600 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. p 5. The Console login screen will appear. Use the keyboard to enter the Usern ame and Password (The same with the password for Web Browser), then press “Enter”.
  • Page 70 TES-3080-M12 Series User’s Manual LI Management by Telnet Users can use “TELNET” to co nfigure the switches. The default value is as b elow: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 19 2.168.10.254 User Name: admin assword: admin Follow the steps below to access the console via Telnet.
  • Page 71 TES-3080-M12 Series User’s Manual Commands Level Modes Access Method Prompt Exit Method About This Model User EXEC Begin a session switch> Enter logout The user command with your switch. or quit. available at the level of user is the subset of those available at the privileged level.

  • Page 72: Commands Set List-System Commands Set

    TES-3080-M12 Series User’s Manual Symbol of Command Level. Mode Symbol of Command Level User EXEC Privileged EXEC Global configuration VLAN database Interface configuration Commands Set List—System Commands Set Commands Level Description Example Show switch switch>show config show config configuration show terminal...
  • Page 73 TES-3080-M12 Series User’s Manual Show IP information of switch#show ip show ip switch no ip dhcp Disable DHCP client switch(config)#no ip dhcp function of switch reload Halt and perform a switch(config)#reload cold restart Restore to default Switch(config)#default default Changes a login...

  • Page 74: Commands Set List-Port Commands Set

    TES-3080-M12 Series User’s Manual server Disable DHCP server switch(config)#no dhcpserver no dhcpserver function security enable Enable IP security switch(config)#security enable function security http Enable IP security of switch(config)#security http HTTP server Enable IP security of switch(config)#security telnet security telnet telnet server...
  • Page 75 TES-3080-M12 Series User’s Manual Ethernet., the speed can’t be set to 1000 if the port isn’t a giga port.. flowcontrol mode Use the flowcontrol switch(config)#interface configuration fastEthernet 2 [Symmetric|Asymmetric] command on Ethernet switch(config-if)#flowcontrol mode ports to control traffic Asymmetric rates during congestion.
  • Page 76 TES-3080-M12 Series User’s Manual kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit. Set interface output switch(config)#interface bandwidth out bandwidth. Rate fastEthernet 2 [Value] Range is from 100 switch(config-if)#bandwidth out 100 kbps to 102400 kbps...

  • Page 77: Commands Set List-Trunk Command Set

    TES-3080-M12 Series User’s Manual accounting no accounting Clear interface switch(config)#interface accounting fastEthernet 2 information switch(config-if)#no accounting Commands Set List—Trunk command set Commands Level Description Example aggregator priority Set port group system switch(config)#aggregator priority 22 [1to65535] priority Set activity port switch(config)#aggregator...

  • Page 78: Commands Set List-Vlan Command Set

    TES-3080-M12 Series User’s Manual Show the information switch#show aggregator show aggregator of trunk group no aggregator lacp Disable the LACP switch(config)#no aggreator lacp 1 [GroupID] function of trunk group no aggregator group Remove a trunk group switch(config)#no aggreator group 2 [GroupID] Commands Set List—VLAN command set...

  • Page 79: Commands Set List-Spanning Tree Command Set

    TES-3080-M12 Series User’s Manual group access-link untag [UntaggedVID] vlan 8021q aggreator Assign a trunk link for switch(vlan)#vlan 8021q aggreator 3 [TrunkID] VLAN by trunk group trunk-link tag 2,3,6,99 trunk-link tag switch(vlan)#vlan 8021q aggreator 3 [TaggedVID List] trunk-link tag 3-20 vlan 8021q aggreator...
  • Page 80 TES-3080-M12 Series User’s Manual from the root switch within this interval, it recomputed the Spanning Tree Protocol (STP) topology. Use the spanning-tree switch(config)#spanning-tree spanning-tree hello-time [seconds] hello-time global hello-time 3 configuration command to specify the interval between hello bridge protocol data units (BPDUs).

  • Page 81: Commands Set List-Qos Command Set

    TES-3080-M12 Series User’s Manual spanning tree considers the path cost when selecting an interface to place into the forwarding state. Use the spanning-tree switch(config)#interface fastEthernet stp-path-priority [Port Priority] port-priority interface configuration switch(config-if)# stp-path-priority command to configure a port priority that...

  • Page 82: Commands Set List-Igmp Command Set

    TES-3080-M12 Series User’s Manual scheduling weighted-fair [weighted-fair|strict] Setting of QOS switch(config)#qos prioritytype qos prioritytype [port-based|cos-only|tos priority type -only|cos-first|tos-first] qos priority portbased Configure Port-based switch(config)#qos priority portbased [Port] Priority 1 low [lowest|low|middle|high] Configure COS switch(config)#qos priority cos 22 qos priority cos...

  • Page 83: Commands Set List-Mac/Filter Table Command Set

    TES-3080-M12 Series User’s Manual Commands Set List—MAC/Filter Table command set Commands Level Description Example mac-address-table static Configure MAC switch(config)#interface fastEthernet hwaddr address table of interface (static). switch(config-if)#mac-address-table [MAC] static hwaddr 000012345678 mac-address-table filter Configure MAC switch(config)#mac-address-table hwaddr address table(filter) filter hwaddr 000012348678...

  • Page 84: Commands Set List-Port Mirroring Command Set

    TES-3080-M12 Series User’s Manual information and trap-version v1 community community string (remove) [Community-string] trap-version Switch(config)# [v1|v2c] no snmp-server host 192.168.10.50 Configure the switch(config)#snmp snmp community string right community-strings public right RO community-strings [Community-string] right switch(config)#snmp [RO|RW] community-strings public right RW...

  • Page 85: Commands Set List-802.1X Command Set

    TES-3080-M12 Series User’s Manual function monitor tx Set TX destination switch(config)#monitor tx port of monitor function Show port monitor switch#show monitor show monitor information monitor Configure source port switch(config)#interface fastEthernet [RX|TX|Both] of monitor function switch(config-if)#monitor RX Show port monitor switch(config)#interface fastEthernet...
  • Page 86 TES-3080-M12 Series User’s Manual the accounting port Use the 802.1x switch(config)# 8021x system 8021x system sharekey [ID] system share key sharekey 123456 global configuration command to change the shared key value. Use the 802.1x switch(config)# 8021x system nasid 8021x system nasid...

  • Page 87: Commands Set List-Tftp Command Set

    TES-3080-M12 Series User’s Manual MAX requests. 8021x misc Use the 802.1x misc switch(config)# 8021x misc reauthperiod [sec.] reauth period global reauthperiod 3000 configuration command to set the reauth period. 8021x portstate Use the 802.1x port switch(config)#interface fastethernet [disable | reject | accept |...

  • Page 88: Commands Set List-Syslog, Smtp, Event Command Set

    TES-3080-M12 Series User’s Manual Upgrade firmware by switch(config)#upgrade upgrade lash:upgrade_fw flash:upgrade_fw TFTP and need to specify the IP of TFTP server and the file name of image. 6.14 Commands Set List—SYSLOG, SMTP, EVENT command Commands Level Description Example systemlog ip...
  • Page 89 TES-3080-M12 Series User’s Manual function Set cold start event switch(config)#event event device-cold-start [Systemlog|SMTP|Both] type device-cold-start both event Set Authentication switch(config)#event authentication-failure failure event type authentication-failure both [Systemlog|SMTP|Both] Set s ring topology switch(config)#event event changed event type ring-topology-change both O-Ring-topology-change [Systemlog|SMTP|Both]...

  • Page 90: Commands Set List-Sntp Command Set

    TES-3080-M12 Series User’s Manual 6.15 Commands Set List—SNTP command set Commands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable Enable daylight saving switch(config)#sntp daylight sntp daylight time, if SNTP function is inactive, this command can’t be applied. sntp daylight-period...

  • Page 91: Commands Set List-O-Ring Command Set

    TES-3080-M12 Series User’s Manual function Disable daylight switch(config)#no sntp daylight no sntp daylight saving time 6.16 Commands Set List—O-Ring command set Commands Level Description Example Enable O-Ring switch(config)# ring enable Ring enable Enable ring master switch(config)# ring master Ring master...

  • Page 92: Technical Specifications

    TES-3080-M12 Series User’s Manual echnical Specifications ORing Switch Model TES-3080-M12-BP2 Physical Ports 10/100 Base-T(X) Ports (D-coding) Auto MDI/MDIX RS-232 Serial Console Port RS-232 in M12 connector. Baud rate setting: 9600bps, 8, N, 1 Technology IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control...
  • Page 93 TES-3080-M12 Series User’s Manual R.M. Indicator Green : Indicate system operated in O-Ring Master mode O-Ring Indicator Green : Indicate system operated in O-Ring mode Fault Indicator Amber : Indicate unexpected event occurred 10/100Base-T(X) M12 Port Indicator Green for port Link/Act. Amber for Duplex/Collision...
