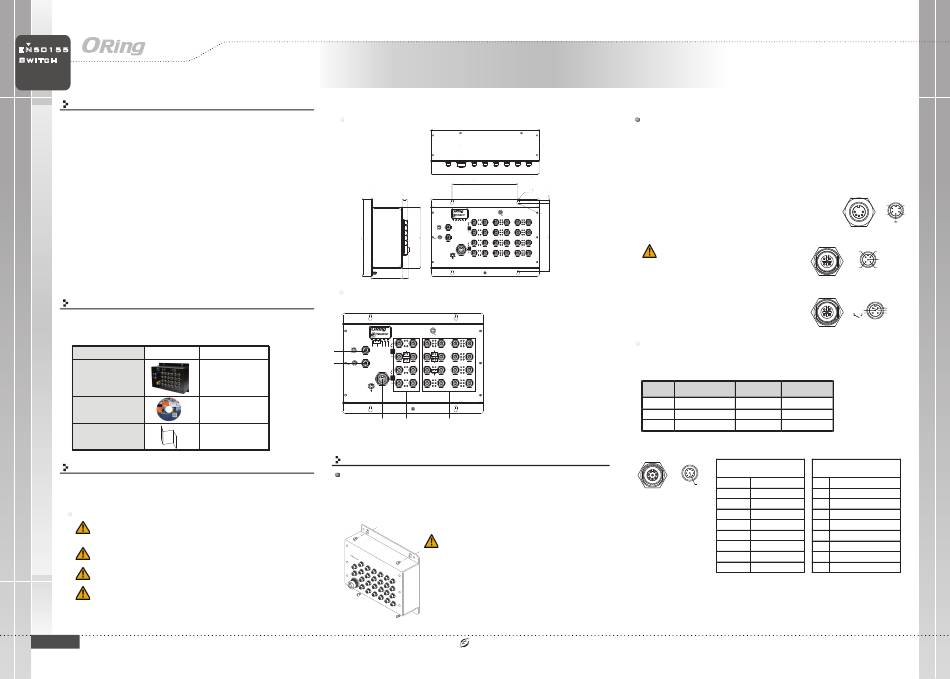

ORiNG TGPS-9168GT-M12-BP2-24V Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation
Introduction
T M

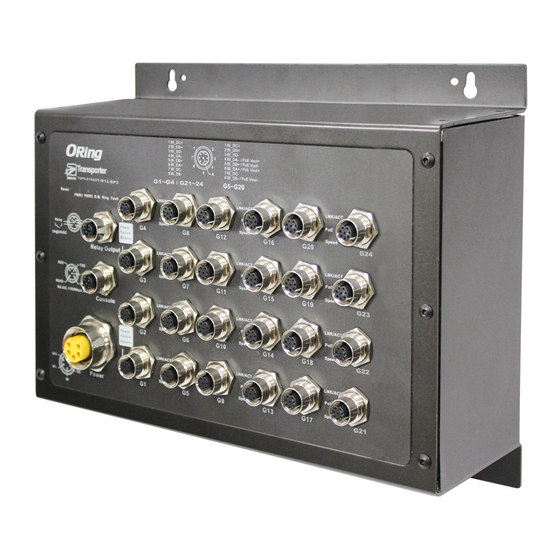

ORing's Transporter series managed PoE Ethernet switches are designed
for industrial applications, such as rolling stock, vehicle, and railway
applications. TGPS-9168GT-M12-BP2-24V
E t h e r n e t s w i t c h w i t h 1 6 x 1 0 / 1 0 0 / 1 0 0 0 B a s e - T ( X ) P. S . E . a n d
8x10/100/1000Base-T(X) ports which is specifically designed for the
toughest and fully compliant with EN50155 requirement. The switch support
Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units
of connection), O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can
protect your mission-critical applications from network interruptions or
temporary malfunctions with its fast recovery technology. TGPS-9168GT-
M12-BP2-24V also support Power over Ethernet, a system to transmit
electrical power up to 30 watts, along with data, to remote devices over
standard twisted-pair cable in an Ethernet network. Each TGPS-9168GT-
M12-BP2-24V switch has 16x10/100/1000Base-T(X) P.S.E. (Power Sourcing
Equipment) ports. P.S.E. is a device (switch or hub for instance) that will
provide power in a PoE connection. TGPS-9168GT-M12-BP2-24V
be managed centralized and convenient by Open-Vision, Except the Web-
based interface, Telnet and console (CLI) configuration.
switch is one of the most reliable choices for EN50155 highly-managed
Ethernet application.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
TGPS-9168GT-M12-BP2-24V
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
TGPS-9168GT-M12-BP2-24V
TGPS-9168GT-M12-BP2-24V
G
uide

Dimension

Unit =mm (Tolerance ±0.5mm)
is managed Redundant Ring
can also
Therefore, the
91.3

Panel Layouts

Front View
TGPS-9168GT-M12-BP2-24V
Reset
PWR1 PWR2 R.M. Ring Fault
1 2 3 4 5
RXD TXD
6 N.C. Power
Number Failure
RSVD GND Bypass
RS-232, 115200bps, 8, N, 1
Console
7
Relay N.C.
3A@24VDC
Relay Output
1 Power
Failure
Bypass
V1+ V2+
Power
V1- V2-
1
8
1

Installation

Wall-mount
The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the d evice upright against the wall
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screws to the wall with a screwdriver.
Step 3: Slide the d
1907-200-K9168T2241-FX011
320
193.9
Ø5.0
15
1 BI_DC+ 1 BI_DC+
2 BI_DD+ 1 2 2 BI_DD+ 3 BI_DD-
4 BI_DA- 3 BI_DD- 7 3 4 BI_DA- / PoE Vout+
5 BI_DB+ 5 BI_DB+ / PoE Vout-
6 BI_DA+ 6 4 6 BI_DA+ / PoE Vout+ Ø8.0
7 BI_DC- 5 8 7 BI_DC-
8 BI_DB- 8 BI_DB- / PoE Vout-
TGPS-9168GT-M12-BP2-24V G1~G8 G9~G24
Reset LNK/ACT LNK/ACT LNK/ACT
PWR1 PWR2 R.M. Ring Fault
PoE PoE
RXD TXD Speed Speed Speed
Power G4 G8 G12 G16 G20 G24
N.C. Failure
Bypass
RSVD GND
RS-232, 115200bps, 8, N, 1 LNK/ACT LNK/ACT LNK/ACT
Console
PoE PoE
Speed Speed Speed
Relay G3 G7 G11 G15 G19 G23
N.C.
3A@24VDC
Relay Output LNK/ACT LNK/ACT LNK/ACT
PoE PoE
Speed Speed Speed
G2 G6 G10 G14 G18 G22
Power
Failure
Bypass
LNK/ACT LNK/ACT LNK/ACT
V1+ V2+ PoE PoE
Power Speed Speed Speed
V1- V2- G1 G5 G9 G13 G17 G21
19.4
1. Reset button
2. Power LED
1 BI_DC+ 1 BI_DC+
2 BI_DD+ 1 2 2 BI_DD+ 3. R.M. status LED
3 BI_DD- 3 BI_DD-
4 BI_DA- 7 3 4 BI_DA- / PoE Vout+
5 BI_DB+ 5 BI_DB+ / PoE Vout-
6 BI_DA+ 6 4 6 BI_DA+ / PoE Vout+
7 BI_DC- 5 8 7 BI_DC-
8 BI_DB- 8 BI_DB- / PoE Vout- 4. Ring status LED
G1~G8 G9~G24
5. Fault LED
LNK/ACT LNK/ACT LNK/ACT
PoE PoE
Speed Speed Speed 6. Console port
G4 11 G8 G12 13 G16 G20 G24
LNK/ACT LNK/ACT LNK/ACT 7. Relay output port
PoE PoE
Speed Speed Speed 8. Power connector
G3 G7 G11 G15 G19 G23
12 14
LNK/ACT LNK/ACT LNK/ACT 9. Gigabit Ethernet ports with bypass
PoE PoE
Speed Speed Speed
G2 G6 G10 G14 G18 G22 10. PoE-enabled Gigabit Ethernet ports
15
11. Link/ACT LED for Gigabit ports
LNK/ACT LNK/ACT LNK/ACT
PoE PoE
Speed Speed Speed
12. Speed LED for Gigabit ports
G1 G5 G9 G13 G17 G21
13. Link/ACT LED for PoE-enabled Gigabit
Ethernet ports
14. Speed LED for PoE-enabled Gigabit
Ethernet ports
9 10
15. PoE LED
evice downwards and tighten the four screws for added stability.
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the
switch between the wall and the screws.
PRINTED ON RECYCLED PAPER
EN50155 24-port managed
Gigabit PoE Ethernet switch

Wiring

For pin assignments of power, console and relay output ports, please refer to the following tables.

Grounding

Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.

Power port pinouts

The device supports two sets of power supplies and uses the M23 5-pin
female connector on the front panel for dual power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.

Console port pinouts

The switch has one RS-232 (M12 5pin) console port,
located on the front panel. Use a M12-to-DB9
console cable to connect the console port to your
PC's COM port.

Relay output port pinouts

The switch uses the M12 A-coded 5-pin female connector
on the front panel for relay output. Use a cable with an M12
A-coded 5-pin male connector to connect the relay. The
relay contacts will detect user-configured events and form
an close circuit when an event is triggered.

Network Connection

The device provides Ethernet ports in M12 connector type. According to the link type, the switch
uses CAT 3, 4, 5,5 e UTP cables to connect to any other network devices PCs servers switches
routers or hubs Please refer to the following table for cable specifications. , ).
Cable Type Max. Length Connector
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) M12 A-coding connector
UTP 100 m (328 ft) M12 A-coding connector
100BASE-TX Cat. 5 100-ohm UTP
Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328 ft) M12 A-coding connector
1000BASE-T
For pin assignments of the Ethernet ports, please refer to the following tables.
8-Pin Gigabit Non-PoE Port
1 2
Definition
7 3
6 4
PIN Definition PIN
5 8
1 BI_DC+ 1
2 BI_DD+ 2
3 BI_DD- 3
4 BI_DA- 4
5 BI_DB+ 5
6 BI_DA+ 6
7 BI_DC- 7
8 BI_DB- 8
Quick Installation Guide
Version 1.1
V1+ V2+
V1- V2-
RXD TXD
N.C.
RSVD GND
RS-232, 9600bps, 8, N, 1
Relay
N.C.
3A@24VDC
( , , ,
8-Pin Gigabit PoE Port
Definition
Definition
BI_DC+
BI_DD+
BI_DD-
BI_DA- with PoE Vout+
BI_DB+ with PoE Vout-
BI_DA+ with PoE Vout+
BI_DC-
BI_DB- with PoE Vout-
