ORiNG TGXPS-1080-M12-24V Series Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation
Introduction

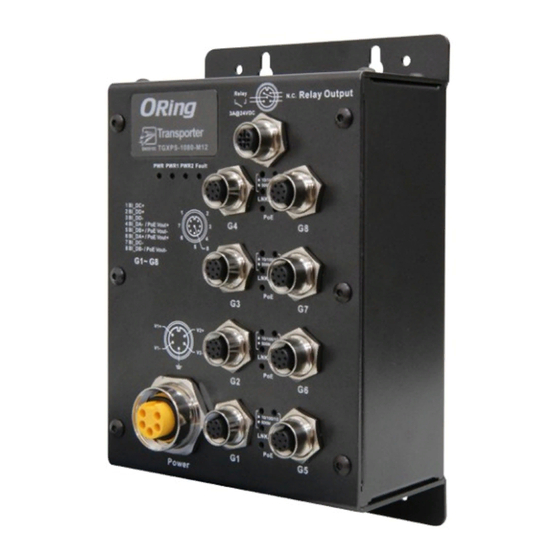

The TGXPS-1080-M12-24V series is an un-managed PoE Ethernet switch
with 8x10/100/500/1000Base-T(X) P.S.E. ports, specifically designed for
the toughest environment and fully compliant with EN50155 requirement.
The P.S.E ports enable the
TGXPS-1080-M12-24V series
electrical power, along with data, to remote devices over a standard
twisted-pair cable. With EN50155 compliance and M12 connectors, the
device ensures reliable and robust connections against environmental
disturbances, such as vibration and shock. In addition, the wide operating
o o
temperature range from -40 C to 75 C allows the device to operate in extreme
weather. The -BP2 model also provides two sets of bypass ports that ensure
constant network connectivity during power failure. Even if the switch loses
power, traffic will continue to flow unimpeded through the link.
Package Contents
The device is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for
assistance.
Contents Pictures
TGXPS-1080-M12-24V or
TGXPS-1080-M12-BP2-24V
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
TGXPS-1080-M12-24V Series
TGXPS-1080-M12-24V Series
G
uide
Dimension
Unit =mm (Tolerance ±0.5mm)
to transmit
65.0
TGXPS-1080-M12-24V
Panel Layouts
Number
Front View
1
Relay
3A@24VDC
TGXPS-1080-M12-24V
PWR PWR1 PWR2 Fault
1
1 2
3
4
1 BI_DC+
2 BI_DD+ 1 2
G4
3 BI_DD-
4 BI_DA- / PoE Vout+ 7 3
5 BI_DB+ / PoE Vout-
6 BI_DA+ / PoE Vout+ 6 4
7 BI_DC-
5 8
8 BI_DB- / PoE Vout-
G1~ G8
G3
1
V1+ V2+
V1- V2-
G2
5
G1
Power
9
Installation
Wall-mount
The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the d evice upright against the wall
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screw to the wall with a screwdriver.
Step 3: Slide the d evice downwards and tighten the four screws for added stability.
1907-2-29-TGXPS1080M1224V-1.0
125.0 125.0
86.0 86.0
56.5 Ø5.0 56.5
Ø4.0
Relay N.C. Relay Output Ø8.00 Relay
3A@24VDC 3A@24VDC
TGXPS-1080-M12-24V TGXPS-1080-M12-BP2
PWR PWR1 PWR2 Fault PWR PWR1 PWR2 Fault
10/100/1G
500M
LNK/ACT
1 BI_DC+ PoE 1 BI_DC+
2 BI_DD+ 1 2 G4 G8 2 BI_DD+ 1 2 G4
3 BI_DD- 4 BI_DA- / PoE Vout+ 7 3 4 BI_DA- / PoE Vout+ 3 BI_DD- 7 3
5 BI_DB+ / PoE Vout- 5 BI_DB+ / PoE Vout-
6 BI_DA+ / PoE Vout+ 6 4 6 BI_DA+ / PoE Vout+ 6 4
7 BI_DC- 5 8 7 BI_DC- 5 8
8 BI_DB- / PoE Vout- 500M 10/100/1G 8 BI_DB- / PoE Vout-
G1~ G8 G1~ G8
LNK/ACT
PoE
G3 G7 G3
V1+ V2+ V1+ V2+
500M 10/100/1G
V1- V2- LNK/ACT V1- V2-
PoE
G2 G6 G2
10/100/1G
500M
LNK/ACT
PoE
G1 G5 G1
Power Power
65.0
TGXPS-1080-M12-BP2-24V
1. Power status LED
Relay Output
N.C.
2. Power1 status LED
6
3. Power2 status LED
4. Fault LED
10/100/1G
500M
LNK/ACT
5. Power input port
PoE
G8
6. Relay output port
10/100/1G
500M 7. LNK/ACT & Speed LED for Gigabit ports
LNK/ACT
PoE (1Gbps/10Mbps/100Mbps)
G7
7
8. LNK/ACT & Speed LED for Gigabit ports (500Mbps)
10/100/1G
500M
9. Gigabit Ethernet ports
LNK/ACT
PoE
G6
(G5-G8 of TGXPS-1080-M12-BP2/-24V are bypass ports)
10. PoE status LED
10/100/1G
500M 8
LNK/ACT
PoE
G5
10 9
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the switch
between the wall and the screws.
PRINTED ON RECYCLED PAPER
EN50155 8-port unmanaged
Gigabit PoE Ethernet switch
Wiring
For pin assignments of power, console and relay output ports, please refer to the following tables.
Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.
Ø5.0
Ø4.0
Power port pinouts
The device supports two sets of power supplies and uses the M23 5-pin
N.C. Relay Output Ø8.00
female connector on the front panel for the dual power inputs.
10/100/1G
500M
Step 1: Insert a power cable to the power connector on the device.
LNK/ACT
PoE
G8
Step 2: Rotate the outer ring of the cable connector until a snug fit is
500M 10/100/1G
LNK/ACT
PoE
G7 Power achieved. Make sure the connection is tight.
Failure
Bypass
500M 10/100/1G
LNK/ACT
PoE
G6
10/100/1G
500M
LNK/ACT
PoE Relay output port pinouts
G5
The switch uses the M12 A-coded 5-pin male connector on
the front panel for relay output. Use a power cord with an
M12 A-coded 5-pin female connector to connect the relay.
The relay contacts will detect user-configured events and
form an open circuit when an event is triggered.
Network Connection
The device provides Ethernet ports in M12 connector type. According to the link type, the switch
uses CAT 3, 4, 5,5e UTP cables to connect to any other network devices (PCs, servers, switches,
routers, or hubs). Please refer to the following table for cable specifications.
Cable Type Max. Length
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft)
For pin assignments of the LAN ports, please refer to the following tables.
10/100/1000Base-T(X) M12 port
1 2
7 3 PIN
6 4
5 8
1
2
3
4
5
6
7
8
PoE Power Distribution
Version 1.0
V1+ V2+
V1- V2-
Relay
N.C.
3A@24VDC
Connector
M12 A-coding connector
M12 A-coding connector
M12 A-coding connector
Definition
BI_DC+
BI_DD+
BI_DD-
BI_DA- / PoE Vout+
BI_DB+ / PoE Vout-
BI_DA+ / PoE Vout+
BI_DC-
BI_DB- / PoE Vout-
Quick Installation Guide
