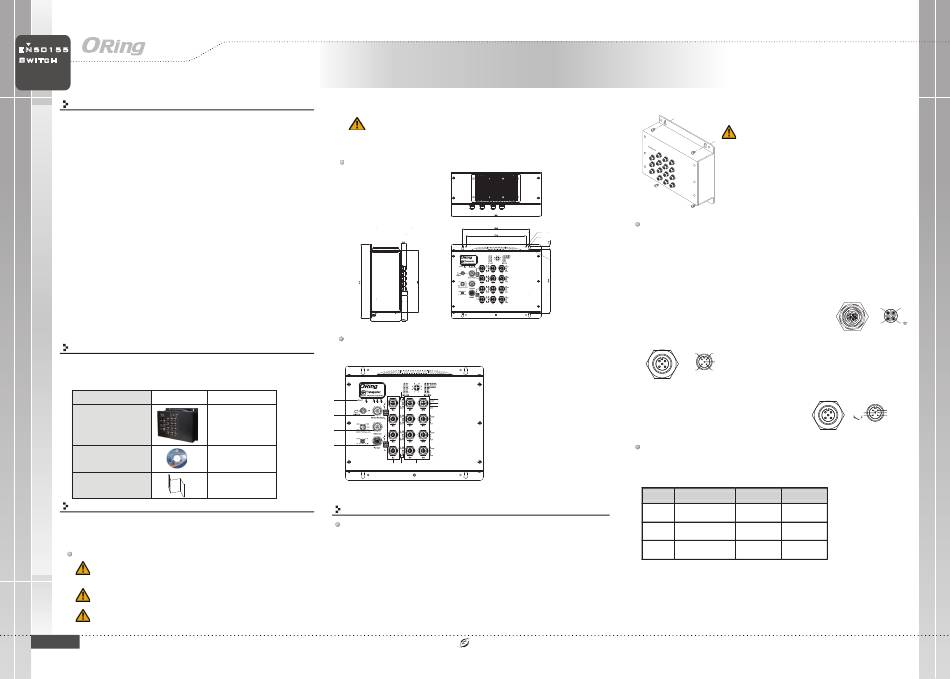

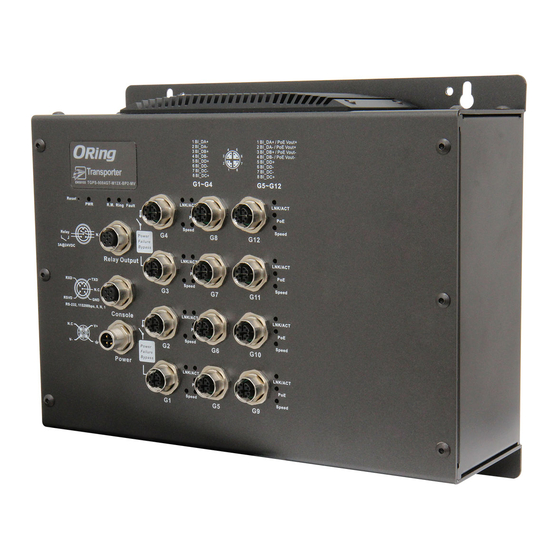

ORiNG TGPS-9084GT-M12X-BP2-MV Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation
Introduction
T M
ORing's Transporter series managed PoE Ethernet switches are
designed for industrial applications, such as rolling stock, vehicle, and
railway applications. TGPS-9084GT-M12X-BP2-MV
R i n g E t h e r n e t s w i t c h w i t h 8 x 1 0 / 1 0 0 / 1 0 0 0 B a s e - T ( X ) P. S . E . a n d
4x10/100/1000Base-T(X) ports which is specifically designed for the
toughest and fully compliant with EN50155 requirement.
support Ethernet Redundancy protocol,
250 units of connection), O-Chain, MRP
(IEEE 802.1s/w/D) can protect your mission-critical applications from
network interruptions or temporary malfunctions with its fast recovery
technology.
TGPS-9084GT-M12X-BP2-MV
Ethernet, a system to transmit electrical power up to 30 watts, along with
data, to remote devices over standard twisted-pair cable in an Ethernet
n e t w o r k . E a c h T G P S - 9 0 8 4 G T - M 1 2 X - B P 2 - M V
8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E.
is a device (switch or hub for instance) that will provide power in a PoE
connection. TGPS-9084GT-M12X-BP2-MV
that protect the network from failures and Network maintenance by ensuring
network integrity during power loss.
o o
temperature from -40 C to 75 C. TGPS-9084GT-M12X-BP2-MV
be managed centralized and convenient by Open-Vision, Except the Web-
based interface, Telnet and console (CLI) configuration.
switch is one of the most reliable choices for EN50155 highly-managed
Ethernet application.
*NOTE: This function is available by request only.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
TGPS-9084GT-M12X-BP2-MV
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the
package contents available and a PC with Microsoft Internet Explorer 6.0 or
later, for using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe
operation of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Q I G
TGPS-9084GT-M12X-BP2-MV
TGPS-9084GT-M12X-BP2-MV
G
uide
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
is managed Redundant
should be used when addressing this concern.
Dimension
The switch
O-Ring (recovery time < 30ms over
*NOTE and MSTP/RSTP/STP
also support Power over
s w i t c h h a s
includes 2 sets of bypass ports
And support wide operating
can also
Therefore, the
Panel Layouts
Number
1
2 3 4 5
15
1
14
6
1
1
Installation
Wall-mount
The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screws to the wall with a screwdriver.
Step 3: Slide the
1907-200-K9084X2MV1-FX011
Unit =mm (Tolerance ±0.5mm)
Ø4.0
Ø5.0
Ø8.0
89.6
Front View
1. Reset button
2. Power status LED
3. R.M. status LED
4. Ring status LED
9
5. Fault LED
6. Power connector
11
12
7. Non-PoE Gigabit Ethernet ports (with
13
bypass for -BP2 model)
8. PoE-enabled Gigabit Ethernet ports
9. Link/ACT LED for non-PoE Gigabit ports
10. Speed LED for non-PoE Gigabit ports
11. Link/ACT LED for PoE-enabled Gigabit
ports
12. PoE indicator for PoE-enabled Gigabit
ports
7 10 8 13. Speed LED for PoE-enabled Gigabit ports
14. Console port
15. Relay output port
d evice upright against the wall
evice downwards and tighten the four screws for added stability.
d
PRINTED ON RECYCLED PAPER
EN50155 12-port managed
Gigabit PoE Ethernet switch
Instead of screwing the screws in all the way, it is advised
to leave a space of about 2mm to allow room for sliding the
switch between the wall and the screws.
Wiring
For pin assignments of power, console and relay output ports, please refer to the following tables.
Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.
Power port pinouts
The device supports two sets of power supplies and uses the M12 S-
coded 4-pin male connector on the front panel for power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.
Console port pinouts
RXD TXD
N.C.
RSVD GND
RS-232, 115200bps, 8, N, 1
Relay output port pinouts
The switch uses the M12 A-coded 5-pin female connector
on the front panel for relay output. Use a cable with an M12
A-coded 5-pin male connector to connect the relay. The
relay contacts will detect user-configured events and form
an close circuit when an event is triggered.
Network Connection
The switch has eight 10/100/1000Base-T(X) PoE and four 10/100/1000Base-T(X) non-PoE
Ethernet ports in the form of M12 connector. Depending on the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to network devices (PCs, servers, switches, routers, or hubs). Please
refer to the following table for cable specifications.
Cable Type Max. Length Connector
8-pin female M12
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
X-coding connector
8-pin female M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
X-coding connector
8-pin female M12
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
X-coding connector
Quick Installation Guide
Version 1.1
N.C. V+
V-
Relay N.C.
3A@24VDC
