CAS ELECTRICS CO.,LTD

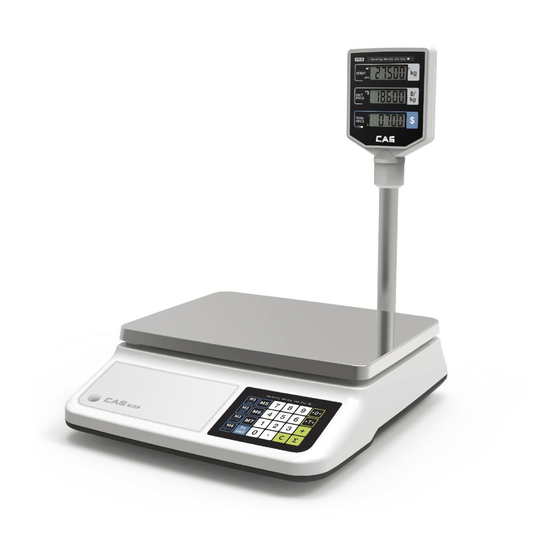

PR-II Series
Service Manual
(English)
2016. 05. 13
1

Advertisement

Table of Contents
loading

Related Manuals for CAS PR-II Series

Summary of Contents for CAS PR-II Series

  • Page 1 CAS ELECTRICS CO.,LTD PR-II Series Service Manual (English) 2016. 05. 13...

  • Page 2: Table Of Contents

    CAS ELECTRICS CO.,LTD Table of Contents 1. Introduction......................... 3 1.1. Preface ........................3 1.2. Precaution ........................3 2. Classification ........................4 2.1. Overall View ........................ 4 2.2. Specifications ......................5 2.3. Display & Key ......................6 2.3.1. Display ....................... 6 2.3.2.

  • Page 3: Introduction

    1. Introduction 1.1. Preface Thank you for purchasing of our CAS scale. This scale has been designed with CAS reliability, under rigid quality control and with outstanding performance. WE hope that your departments enjoy with high quality of CAS product.

  • Page 4: Classification

    CAS ELECTRICS CO.,LTD 2. Classification 2.1. Overall View ■ Rcolumn instaltion...

  • Page 5: Specifications

    CAS ELECTRICS CO.,LTD 2.2. Specifications MODEL PR-ΙΙ Dual Dual Dual Single Single Single Interval Interval Interval Capacity 3/6kg 6/15kg 15kg 15/30kg 30kg e=2g e=5g e=10g e=1g e=2g e=5g e=1/2g e=2/5g e=0.5/1g e=0.5g e=1g e=2g e=0.2g e=0.5g e=1g External 1/3000~ 1/3000~...

  • Page 6: Display & Key

    CAS ELECTRICS CO.,LTD 2.3. Display & Key 2.3.1. Display 2.3.1.1 B Type ■ LCD Front/Rear ■ LED Front/Rear 2.3.1.2 P Type ■ LCD / LED (front/rear is same)

  • Page 7: Key Function

    CAS ELECTRICS CO.,LTD 2.3.2. Key Function KEYS FUNCTIONS Used to enter all the numeric data PLU key. Function key(Back-light, Power Save Used to enter PLU setting Used to clear all the numeric price display Used to clear sum total price...

  • Page 8: Dimension

    CAS ELECTRICS CO.,LTD 2.4. Dimension 2.4.1. Scale...

  • Page 9: Loadcell

    CAS ELECTRICS CO.,LTD 2.4.2. Loadcell 2.5. Sealing Method...

  • Page 10: Calibration

    CAS ELECTRICS CO.,LTD 3. Calibration 3.1. Calibration Mode PR-II supports two calibration mode. Cal mode 1: Calibration after the initialization data Cal mode 2: Calibration should only proceed again After turning on the power, while the number is changed to "999999", "888888", "777777" on the display, calibration jumper short to enter the cal mode 1.

  • Page 11: Span Calibration

    CAS ELECTRICS CO.,LTD 3.2. Span Calibration Cal mode 1: (1) Pressing and holding “Calibration Switch” push power on/off switch. It displays below: Then enter the settings by pressing a number key, press the [+] key to save settings and exit the following menu.
  • Page 12 CAS ELECTRICS CO.,LTD For exampe, DIGIT 6 DIGIT 5 DIGIT 4 DIGIT 3-2 DIGIT 1 Decimal 2 Vibration Weight unit 30 kg Unit price filter => kg Single weight unit Disable 1/3000 => kg Parameter setting, see below table. DIGIT...
  • Page 13 CAS ELECTRICS CO.,LTD 30 kg single 1/15000 30 kg single 1/30000 Pressing a number key will be stored by pressing the Enter the set value, the + key. Caution must be canceld if you do not enter in succession. Do not place anything on top of the tray, press the [+] key.
  • Page 14 CAS ELECTRICS CO.,LTD (6) Load middle weight (ex:2/3 full capacity) on the platform (7) Press [+] key and then it displays “On3 ” message (8) Load full weight on the platform...
  • Page 15 CAS ELECTRICS CO.,LTD (9) Press [+] key and then, the display will show all the segments and count up "9" to "0". Cal mode 2: Cal Mode 2 is a calibration method for using the weight that corresponds to one of the zero and the three intervals.

  • Page 16: The Schematics And Diagram

    CAS ELECTRICS CO.,LTD 4. The Schematics and Diagram 4.1. System Block Diagram 4.2. Circuit Diagram Please call your CAS dealer. 4.3. Interface 4.3.1. RS232C Interface (direct) 1, 4, 6, 7, 8, 9: Not connected 2: RX DATA 3: TX DATA...

  • Page 17: Usb Interface

    CAS ELECTRICS CO.,LTD 4.3.2. USB Interface 1: Vbus (5V) 2: D- 3: D+ 5: Ground 5. Firmware Update Method Please call your CAS dealer. 6. Exploded Views...
  • Page 18 CAS ELECTRICS CO.,LTD...

  • Page 19: Parts List

    CAS ELECTRICS CO.,LTD 7. Parts List 7.1. Electronic Parts Parts Image Part Code DESCRIPTION Q'ty Name MAIN 6D00SWL00000 PCB ASS'Y 6110PRE00000 6110PRE00010 6110PRE00020 6110PRE00030 6110PRE00040...
  • Page 20 CAS ELECTRICS CO.,LTD 6110PRE00050 6130PRE00000 7840W0032750 7840W0022710 Switch Cable 7832W0003100 RS232 Cable...
  • Page 21 CAS ELECTRICS CO.,LTD 810SWL153GUN0103 PCB ASS'Y 7520P0070000 Pb Battery 7520P0001500 Mn Battery SMPS 7562P0602CE0 ADAPTOR...

  • Page 22: Mechanical Parts

    CAS ELECTRICS CO.,LTD 7.2. Mechanical Parts 7.2.1. BODY ASS'Y Image Part Code Parts Name DESCRIPTION Unit Q'ty 2000-A00-0456 BODY BATTERY COVER 2000-A00-0452 BATTERY COVER 2000-A00-0453 2008-A00-0001 FOOT BATTERY 1020-A00-0019 HOLDER 2000-A00-0399 SEALING PLATE WATER LEVEL 2022A0000041 GAGE BB01JP000130 SWITCH 7610SBT0303B...

  • Page 23: Upper Case Ass'y

    CAS ELECTRICS CO.,LTD T SCREW PH 1510-A00-0306 M3X6 T SCREW FH 1511-A00-0306 M3X6 T SCREW PH 1510-A00-0410 M4X10 BATTERY SPRING 1590A0000240 BATTERY SPRING 1590A0000070 7840W000213C BATTERY WIRE(-) 2P*135m/m(SW-1) BATTERY 7840W000216A 2P*165(SW-1) WIRE(+) CONNECTOR 3P*230mm-303(SW- 7840W000323B 1S/C 전용) WIRE 7.2.2. UPPER CASE ASS'Y...

  • Page 24: Platform Ass'y

    CAS ELECTRICS CO.,LTD BB01-JP0-0021 FISH TRAY 7.2.4. PLATFORM ASS'Y Image Part Code Parts Name DESCRIPTION Unit Q'ty BB01-JP0-0006 UPPER PLATFORM LOWER BB01-JP0-0007 PLATFORM LOADCELL BB01-JP0-0008 PLATE T SCREW-1 1510-A00-0408 (PH M4X8) 1530-A00-0620 W BOLT (M6X20) 7.2.5. PLATFORM ASS'Y Image Part Code...

  • Page 25: Image Ass'y

    CAS ELECTRICS CO.,LTD 2000-PR0-1138 POLE_BASE3_CAP 2000-PR0-1148 POLE_BASE 2000-PR0-1168 BASE COVER T SCREW-1 1510-A00-0410 (PH M4X10) T SCREW-1 1510-A00-0306 (PH M3X6) 7.2.6. IMAGE ASS'Y Image Part Code Parts Name DESCRIPTION Unit Q'ty CAPA STICKER 2050-A00-0678 PRII TOOL DP COVER (F) 2050-A00-0680...

  • Page 26: C/T Ass'y

    CAS ELECTRICS CO.,LTD 2050-A00-0684 TACT KEY COVER PRII TOOL 3050-PRP-0033 PR-POLE FILTER PRII TOOL 7.2.7. C/T ASS'Y Image Part Code Parts Name DESCRIPTION Unit Q'ty 9104-A00-0026 C/T BOX STYROFORM BOX 9203-A00-0021 _ LEFT STYROFORM BOX 9203-A00-0022 _ RIGHT MANUAL 9301A0000030...

  • Page 27: Revision

    CAS ELECTRICS CO.,LTD Revision CAUSE DATE APPROVAL Remark Keum Start 2016.05.10 Youngkwang...
