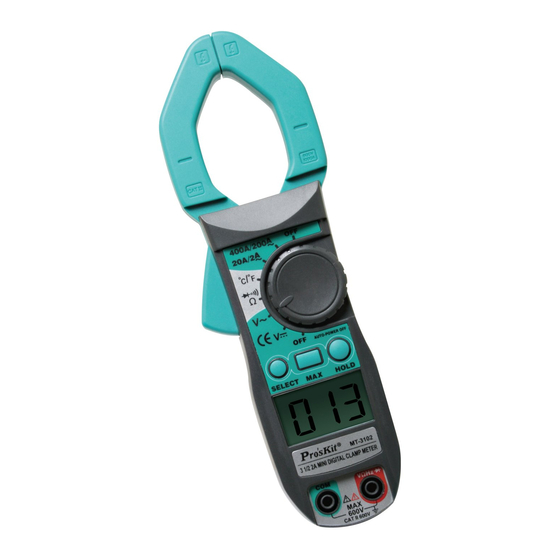

3 1/2 2A Mini Digital Clamp Meter user manual INSTRUCTION MT-3102 3 1/2 mini digital clamp meter is a 3 1/2-digit LCD multi-meter for measuring AC and DC voltage, AC current, resistance, temperature, Diode and continuity test. All overload protection is provided. The function/range rotatable switch design makes manual operation workable, and range selector, power switch are all on one know.
3 1/2 2A Mini Digital Clamp Meter user manual SAFETY WARNING Read the operating instructions before using the instrument and pay particular attention to all WARNINGS and CAUTIONS in this instruction manual. Be sure that the cover and the test leads of the meter are in good conditions.
3 1/2 2A Mini Digital Clamp Meter user manual MT-3102 SELECT HOLD ● ● DC Voltage ● ● AC Voltage Resistance,Continuity, ● ● Diode test ● ● Temperature ℃/℉(K-Type) ● ● DC current 2/20A ● ● AC current 200/400A FRONT PANEL DESCRIPTION 1.
3 1/2 2A Mini Digital Clamp Meter user manual GENERAL SPECIFICATIONS Auto range and manual range options are available. Over range protection is provided for all ranges. Display:3 1/2-digit(1999 count) Measuring method:Dual slope integration A/D converter Sampling speed:2-3 time/sec Unit display:Function and unit symbols displayed Polarity:Automatic negative polarity display Overload indication:Symbol “1”appears on the LCD Low battery indication:Symbol...
3 1/2 2A Mini Digital Clamp Meter user manual NOTE: (1) When the meter auto power off under temperature measuring function, and rotate the selector to any measuring function, the meter will be able to resume operation, except ACV measuring function. (2) After automatic turn-off, THEN press HOLD to re-start, the function of automatic turn-off will be cancel.
Page 7
3 1/2 2A Mini Digital Clamp Meter user manual AC Current:Auto Range Range Resolution Accuracy Overload protection ±(4%+20d) ≦0.4A ±(3%+15d) ±(3%+15d) 400A rms ≦0.4A 10mA ±(2%+10d) 200A 0.1V ±(2%+5d) 400A Frequency range:40~400Hz Resistance:Auto Range Range Resolution Accuracy Overload protection 200Ω 100mΩ...
Page 8
3 1/2 2A Mini Digital Clamp Meter user manual Continuity: Range Resoluti Accuracy Overload protection 100mΩ Built-in buzzer will sound, if resistance is 600Vp lower than ≦50Ω Open circuit voltage ~ 0.45V Diode: Range Resolution Accuracy Overload protection Displaying approximate forward 600Vp voltage of...
3 1/2 2A Mini Digital Clamp Meter user manual MEASURING AC VOLTAGE 1. SAFETY INFORMATION WARNING Beware of Electrocution Pay special attention to avoid electric shock when measuring high voltage. Do not input the voltage which more than 600V rms AC. Plug the black test lead into the COM jack and the red test lead into the V/Ω...
3 1/2 2A Mini Digital Clamp Meter user manual range position. Press the trigger to open jaw. Fully enclose only one conductor. Take the reading on the LCD. MEASURING RESISTANCE WARNING Beware of Electrocution. Ensure that the test leads are disconnected from the meter before making current clamp measurements.
3 1/2 2A Mini Digital Clamp Meter user manual lead into the V/Ω Jack. Set the rotary selector toΩ/ range position. Press the “SEL” button to switch to test. Connect the red test leads to the anode and the black test lead to the cathode of the diode for testing.
