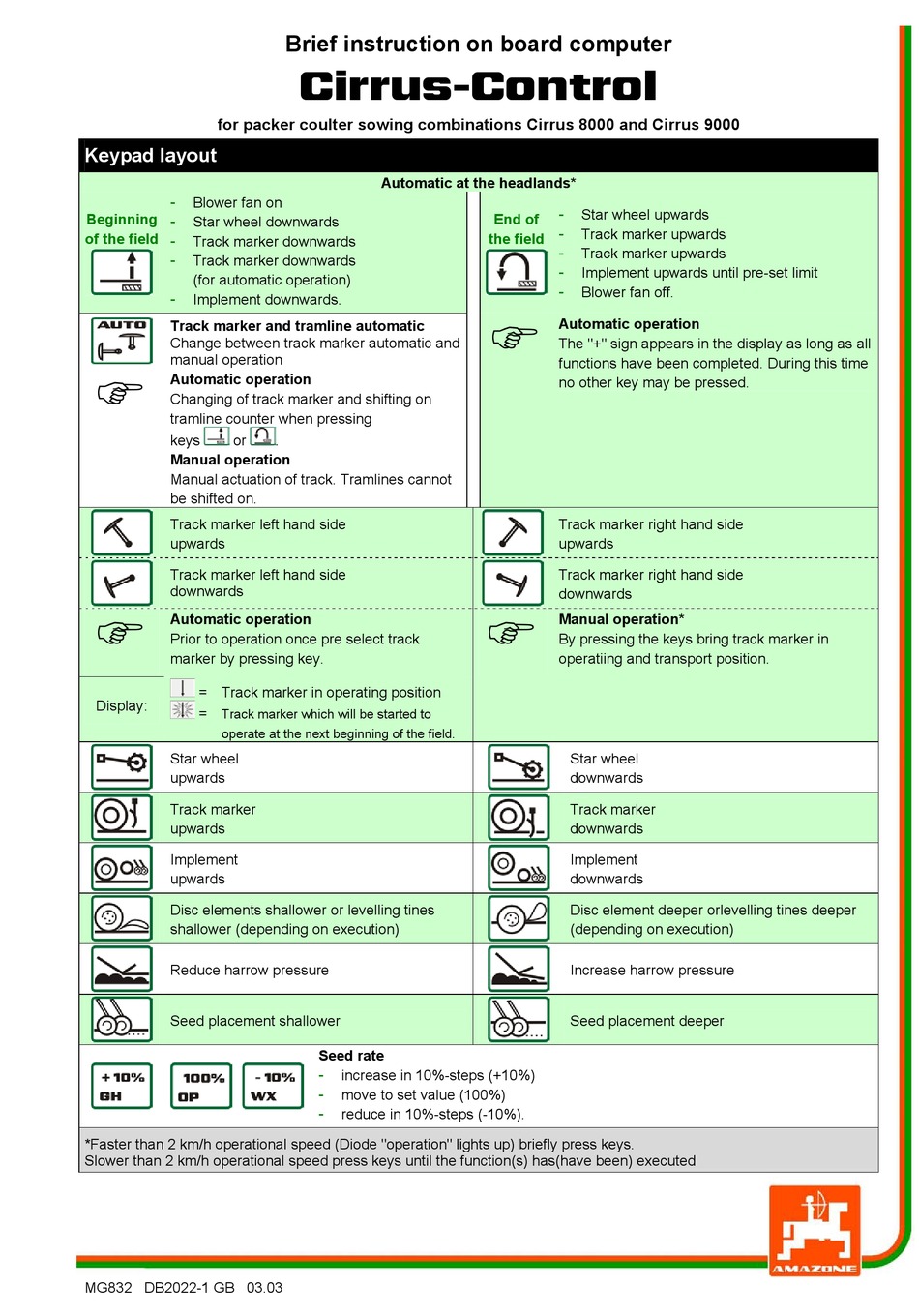

Amazone Cirrus-Control Brief Instructions

for packer coulter sowing combinations Cirrus 8000 and Cirrus 9000

Keypad layout

-
Blower fan on
Beginning
-
Star wheel downwards
of the field
-
Track marker downwards
-
Track marker downwards
(for automatic operation)
-
Implement downwards.

Track marker and tramline automatic

Change between track marker automatic and

manual operation

F
Automatic operation
Changing of track marker and shifting on
tramline counter when pressing
keys or
Manual operation
Manual actuation of track. Tramlines cannot
be shifted on.
Track marker left hand side
upwards
Track marker left hand side
downwards
F
Automatic operation
Prior to operation once pre select track
marker by pressing key.
= Track marker in operating position

Display:

=
Track marker which will be started to
operate at the next beginning of the field.
Star wheel
upwards
Track marker
upwards
Implement
upwards
Disc elements shallower or levelling tines
shallower (depending on execution)
Reduce harrow pressure
Seed placement shallower
*Faster than 2 km/h operational speed (Diode "operation" lights up) briefly press keys.
Slower than 2 km/h operational speed press keys until the function(s) has(have been) executed
MG832 DB2022-1 GB 03.03
Brief instruction on board computer
Cirrus-Control

Automatic at the headlands*

.
Seed rate
-
increase in 10%-steps (+10%)
-
move to set value (100%)
-
reduce in 10%-steps (-10%).
-
Star wheel upwards
End of
-
Track marker upwards
the field
-
Track marker upwards
-
Implement upwards until pre-set limit
-
Blower fan off.
F
Automatic operation
The "+" sign appears in the display as long as all
functions have been completed. During this time
no other key may be pressed.
Track marker right hand side
upwards
Track marker right hand side
downwards
F
Manual operation*
By pressing the keys bring track marker in
operatiing and transport position.
Star wheel
downwards
Track marker
downwards
Implement
downwards
Disc element deeper orlevelling tines deeper
(depending on execution)
Increase harrow pressure
Seed placement deeper
