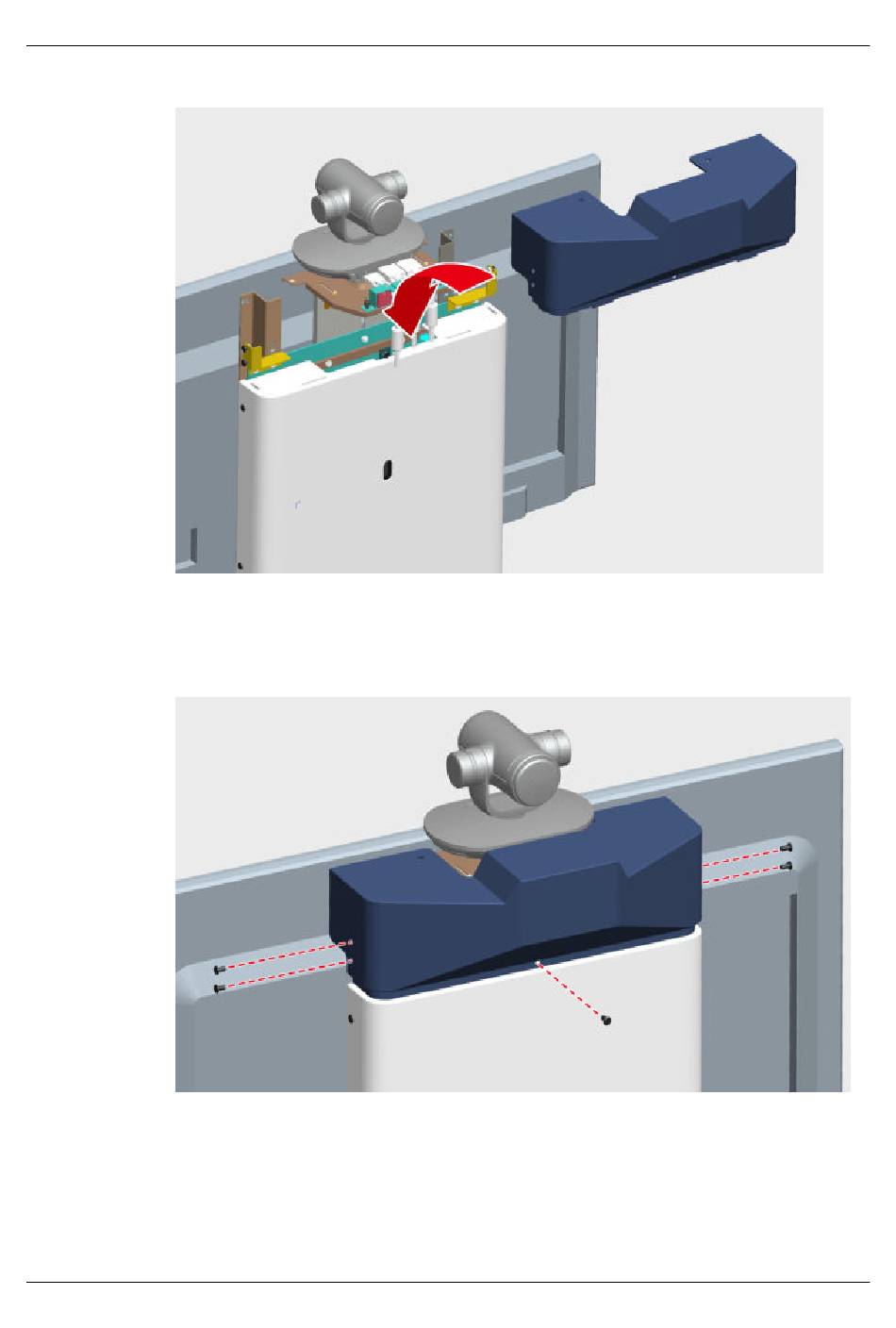

Figure 3-36 Install the decorative component behind the camera
Step 10 Fasten five M6 x 12 flat head screws to securely install the decorative component, as shown in
Figure
Figure 3-37 Tightening the decorative component behind the camera
Step 11 Fasten the TE40 composite cable.
1.
Issue 01 (2015-02-12)
3-37.
Remove the screws on the two sides of the rack, as shown in
