HUAWEI RP100&RP200 Room Presence
Commissioning Guide

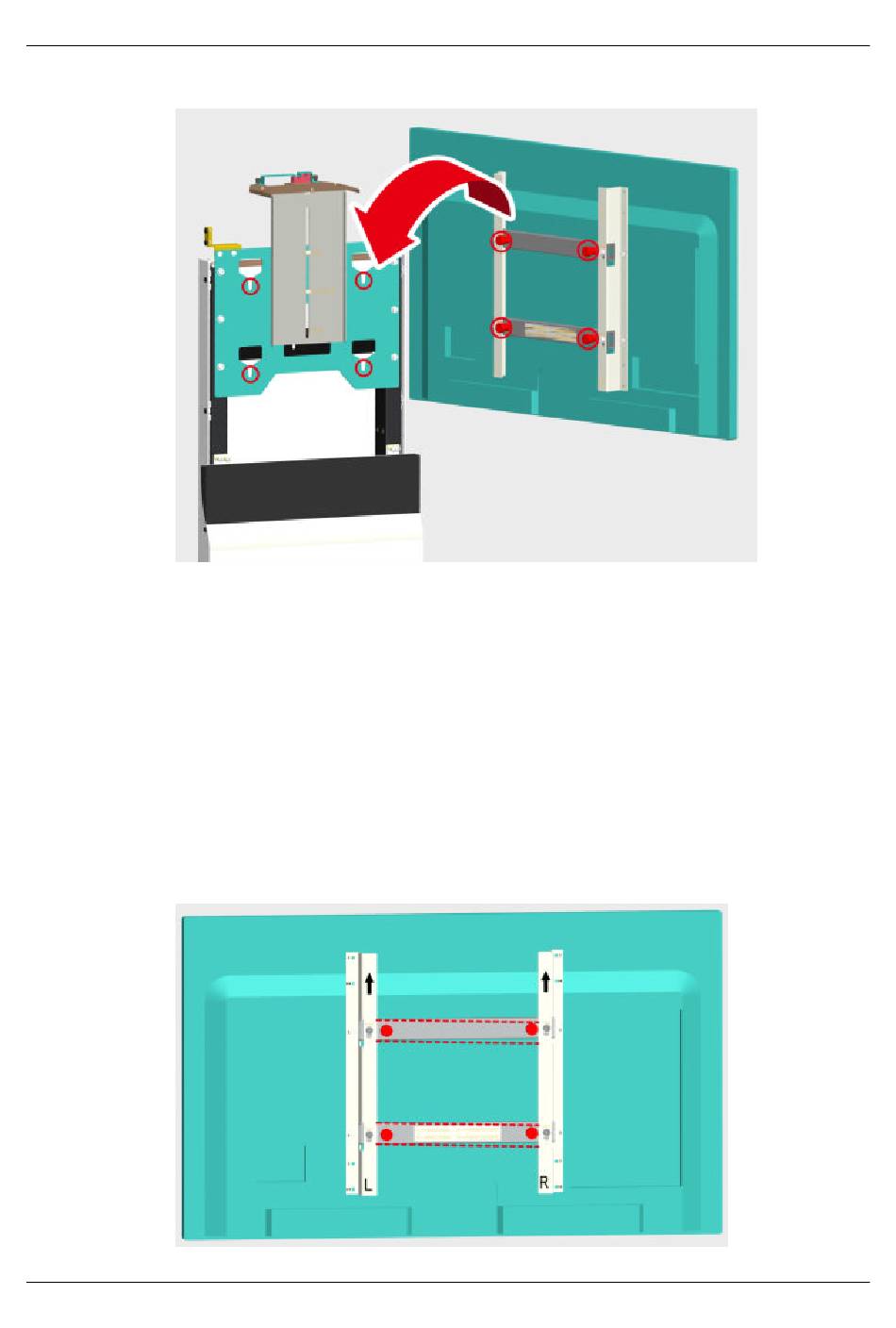

Figure 3-15 Attaching the HD display to the rack
Step 7 Connect the power and other cables to the HD display.
For details about cable connections, see the HUAWEI RP V100R001C04 Series Telepresence
System Connection Diagrams.
----End
If the HD display tilts, remove the HD display from the rack, and place it on the cushion with
its screen facing down. Loosen the screws and adjust the horizontal bars. If the HD display tilts
to the left when you are facing the screen, drag the right side of the horizontal bars downward,
as shown in
Figure 3-16 Adjusting the horizontal bars
Issue 01 (2015-02-12)
Figure 3-16.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3 Installation
27
