Assembly & Installation Instructions:
Conform Accessory Flat Extension Arm
CONF-ACC-1EXT-S
Parts Included
A

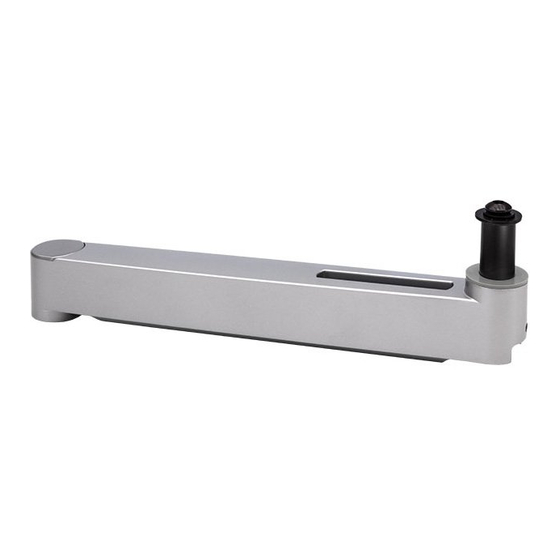

Conform Flat Extension Arm
Qty: 1
B
Pivot Cover Cap
Qty: 1
C
Hook & Loop Strips
Qty: 2
Required Parts Sold Separately
Selected Pole Mount option with mounting hardware
Selected Conform Static Arms.
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
If 3 arms are mounted in series, the maximum monitor weight
in the entire system must not exceed 27 lb.
Do not link more than 3 arms in series.
1 of 4
D
2 mm Spacer
Qty: 1
Tools Required
A Phillips head screwdriver, 2.5 mm Allen Wrench,
5 mm Allen Wrench
NOTE: Extension cables for monitor power and video
may be required.
