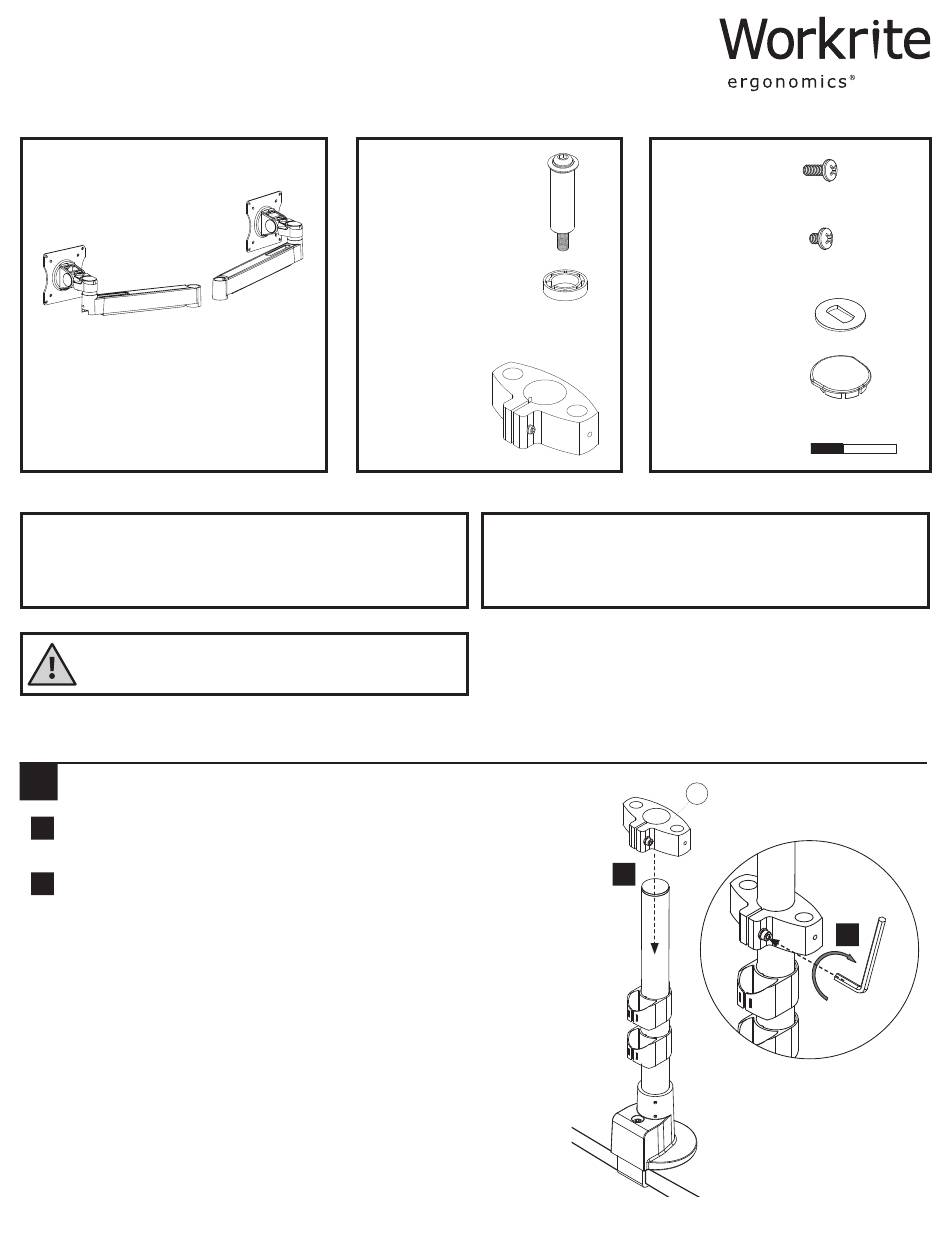

Assembly & Installation Instructions:
Conform Dual Static Arms CONF-2SDS-WOPB-S
Parts Included
A
Conform Static Arms Assembly
Qty: 2
Required Parts Sold Separately
Selected base option with mounting hardware.
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
Do not exceed 16 lb. per Arm.
1
Attach Dual Pole Mount Adaptor
a
Place the Dual Pole Mount Adaptor on selected pole option, at your
desired monitor height.
b
Tighten the Tension Screw on Dual Pole Mount Adaptor (D)
with 5 mm Allen wrench, included with base, to
secure Adaptor to Pole.
1 of 7
B
Pin Assembly with
Bolt and Washer
Qty: 2
C
30 × 7 mm Spacer
Qty: 2
D
Dual Pole Mount Adaptor
Qty: 1
Tools Required
#2 Phillips head screwdriver
2.5 mm Allen wrench (included with base)
4 mm Allen wrench (included with base)
5 mm Allen wrench (included with base)
to Pole
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
E
M4 × 10 VESA
mount screw
Qty: 8
F
M4 × 6 VESA
mount screw
Qty: 8
G
Wedge Washer
Qty: 2
H
Pivot Cover Cap
Qty: 2
I
Hook & Loop Strips
Qty: 4
D
a
14" Pole Base shown
b
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Workrite Ergonomics CONF-2SDS-WOPB-S
Summary of Contents for Workrite Ergonomics CONF-2SDS-WOPB-S
- Page 1 Assembly & Installation Instructions: Conform Dual Static Arms CONF-2SDS-WOPB-S Parts Included Conform Static Arms Assembly Pin Assembly with M4 × 10 VESA Qty: 2 Bolt and Washer mount screw Qty: 2 Qty: 8 M4 × 6 VESA mount screw Qty: 8 30 ×...
- Page 2 Place the Static Arm (A) on the Pin, resting on the Spacer (C). Reassemble the Bolt and Washers as shown. Tighten with the 5 mm Allen wrench. Be sure the arm is tight but rotates freely. Repeat for the other arm. Remove Replace 2 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 3 Loosen the set screw using 2.5 mm Allen wrench included with base. Remove the Pivot Screw using 4 mm Allen wrench included with base. Remove the Pivot Head. Pivot Head Slotted Pivot Adjustment Pivot Screw 3 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 4 Once the Pivot Head is installed onto the Slotted Pivot Adjustment area, you can install the monitors to the VESA Mount in the following step, then adjust the monitors in or out for ideal placement. 4 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 5 To increase capacity(+) turn clockwise using a 5 mm Tilt capacity Allen wrench until the monitor reaches a balanced adjustment. To decrease capacity (-) turn counter-clockwise until the monitor reaches a balanced adjustment. Repeat for other arm. 5 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 6 Dual Pole Mount Adaptor to secure the arm to the adaptor. Replace Pivot Cover Cap (H) by snapping into top of arms. Tighten Repeat the steps for the other arm. Pre-installed Set Screw 6 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 7 Single Pole Mount Adaptor ........... CONF-ADPT-SPM-S Dual Pole Mount Adaptor ............CONF-ADPT-DPM-S Quick Release Adaptor ............MON-ADPTVQR-W-B Technical Support: Please call Workrite Technical Support while at the Workrite product. (800) 959-9675 option 2. 7 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com #1500248 Rev E...
