Workrite Ergonomics CONF-2SDA-WOB-S Assembly/Installation Instructions

Assembly & Installation Instructions:
Conform Dual Articulating Arm CONF-2SDA-WOB-S

Parts Included

A
Conform Articulating Arms
Qty: 2
Required Parts Sold Separately
Selected base option with mounting hardware.
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
Do not exceed 17 lb. per Arm.
1

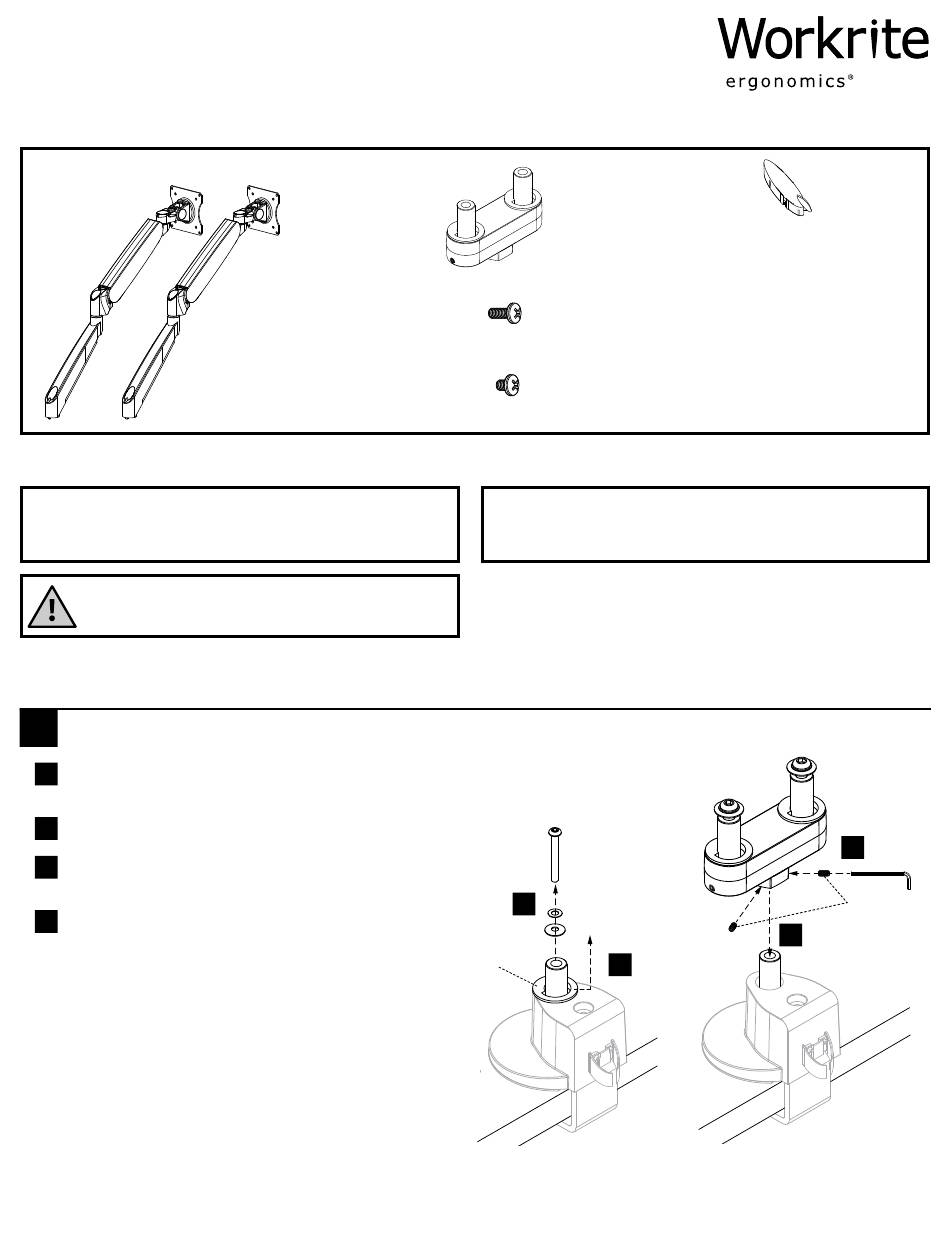

Attach Dual Arm Adaptor to Selected Base Option

a
Remove the Bolt and Washers from base
(if not already removed.)
b
Remove the Pivot Limiter.
Place Dual Arm Adaptor (B) on the pin mount
c
from your selected base option.
d Tighten the two pre-installed set screws (hidden
in view) with the 2.5 mm Allen wrench on the
Dual Arm Adaptor to secure the Adaptor to the
base.
1 of 4
B
Dual Arm Adaptor
Qty: 1
C
M4 × 10 VESA mount screw
Qty: 8
D
M4 × 6 VESA mount screw
Qty: 8
Tools Required
#2 Phillips head screwdriver
2.5 mm Allen wrench (included with base)
5 mm Allen wrench (included with base)
Pivot
Limiter
E
Pivot Cover Cap
Qty: 2
a
b
C-Clamp
Mount shown
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
M8 Flat Head Cap Screw
M4 8mm Screw
Plastic Cap 7/32" Allen Wrench
Pivot Pin Button Head Allen Cap Screw
d
Pre-installed
Set Screws
c
M4 1
1/
