Workrite Ergonomics CONF-3SDS-WOPB-S Assembly/Installation Instructions

Conform triple static arms

Advertisement

Quick Links

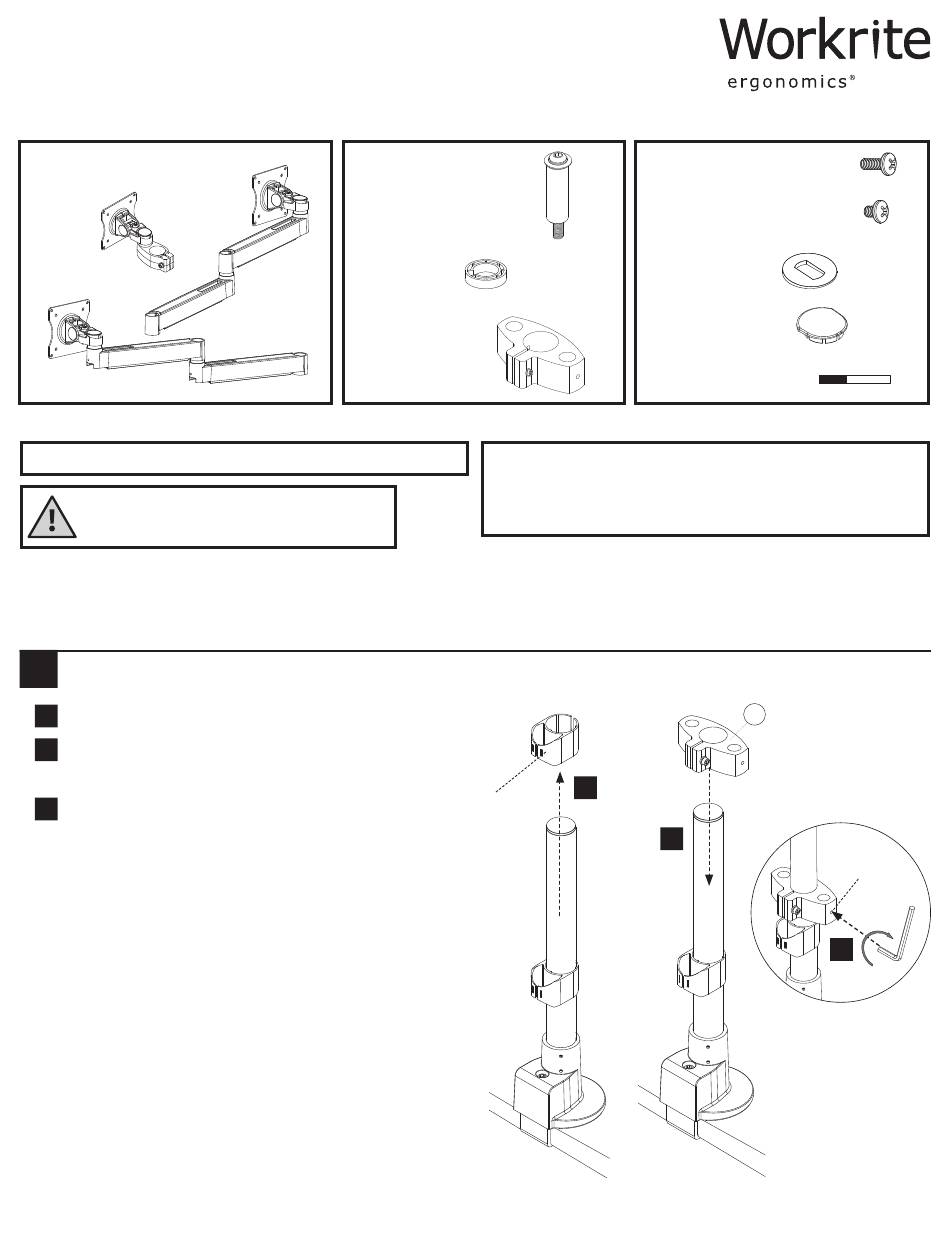

Assembly & Installation Instructions:
Conform Triple Static Arms CONF-3SDS-WOPB-S
Parts Included
A
Conform Static Arm Assemblies
Qty: 3
Center
Right
Required Parts Sold Separately
Selected base option with mounting hardware.
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
Do not exceed 16 lb. per arm.
1
Attach Dual Pole Mount
a
Remove the top Cable Management Clip.
b
Place the Dual Pole Mount Adaptor (D) on selected
pole option at your desired monitor height.
Tighten the tension screw on Dual Pole Mount
c
Adaptor (D) with 5 mm Allen Wrench (included
with base) to secure Adaptor to Pole.
1 of 7
B
Pin Assembly with
Bolt and Washer
Qty: 2
C
30 × 7 mm Spacer
Qty: 2
Left
D
Dual Pole Mount
Adaptor
Qty: 1
Adaptor to selected pole option
Tools Required
#2 Phillips head screwdriver
2.5 mm Allen wrench (included with base)
4 mm Allen wrench (included with base)
5 mm Allen wrench (included with base)
a
Cable
Management
Clip
14" Pole Base shown
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
E
M4 × 10 VESA Mount Screw
Qty: 12
F
M4 × 6 VESA Mount Screw
Qty: 12
G
Wedge Washer
Qty: 2
H
Pivot Cover Cap
Qty: 2
I
Hook & Loop Strips
Qty: 8
D
b
Tension
screw
c

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONF-3SDS-WOPB-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Workrite Ergonomics CONF-3SDS-WOPB-S

  • Page 1 Assembly & Installation Instructions: Conform Triple Static Arms CONF-3SDS-WOPB-S Parts Included Conform Static Arm Assemblies Pin Assembly with M4 × 10 VESA Mount Screw Qty: 3 Bolt and Washer Qty: 12 Qty: 2 M4 × 6 VESA Mount Screw Qty: 12 30 ×...
  • Page 2 You may need to loosen the Tension Screw prior to adding. Cable Management Tighten the Tension Screw on Single Pole Clip Mount Adaptor with 5 mm Allen Wrench to secure Arm Assembly to Pole. Tension screw 2 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
  • Page 3 Loosen the set screw using 2.5 mm Allen wrench included with base. Remove the Pivot Screw using 4 mm Allen wrench included with base. Remove the Pivot Head. Pivot Head Slotted Pivot Adjustment 3 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
  • Page 4 Once the Pivot Head is installed onto the Slotted Pivot Adjustment area, you can install the monitors to the VESA Mount in the following step, then adjust the monitors in or out for ideal placement. 4 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
  • Page 5: Important Note

    To increase capacity(+) turn clockwise using a 5 mm Allen Wrench (included with base) until the monitor reaches a balanced adjustment. To decrease capacity(-) turn counter-clockwise until the monitor reaches a balanced adjustment. Repeat for other arms. 5 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
  • Page 6 Allen Wrench on the post base to secure the arm to the adaptor. Loosen Replace Pivot Cover Caps (H) by snapping into top of arm assembly. Repeat the steps for the other arm. Pre-installed Set Screw 6 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
  • Page 7: Cable Management

    Single Pole Mount Adaptor ........... CONF-ADPT-SPM-S Dual Pole Mount Adaptor ............CONF-ADPT-DPM-S Quick Release Adaptor ............MON-ADPTVQR-W-B Technical Support: Please call Workrite Technical Support while at the Workrite product. (800) 959-9675 option 2. 7 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com #1500249 Rev E...
