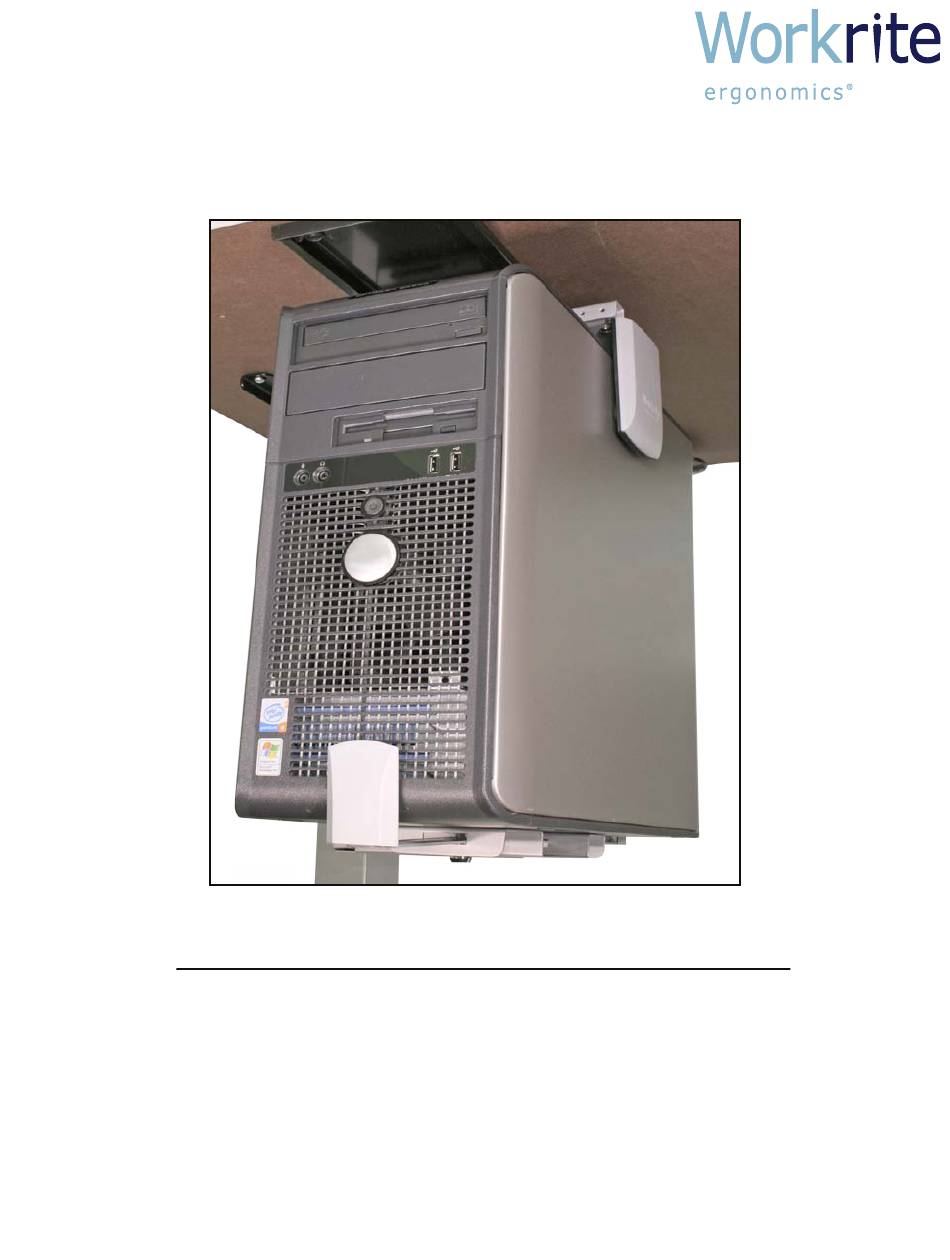

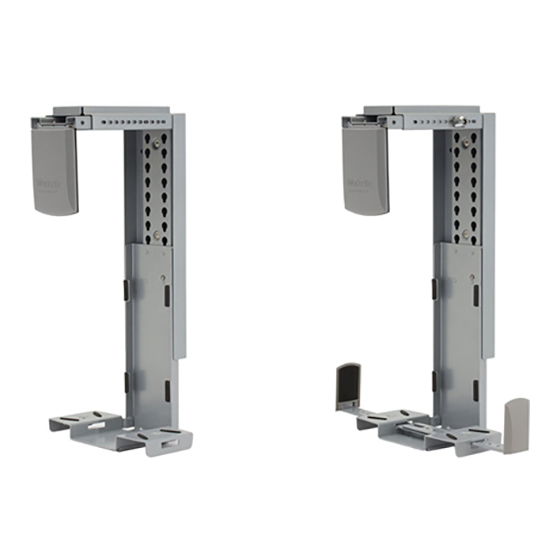

- Page 1 920 CPU Holder Assembly Instructions 920-F / Fixed Mount CPU Holder 920-FL / Fixed Mount CPU Holder w/Lock 920-T / Slide & Swivel Track CPU Holder 920-TL / Slide & Swivel Track CPU Holder w/Lock #1500153 - Rev A...
- Page 2 1500153 920 CPU Holders - Assembly Instructions Verify that you have all the hardware and tools needed for the assembly Check your cartons against the list below to verify that you have all the parts needed. You will also need the following tools: ⅛"...
- Page 3 1500153 920 CPU Holders - Assembly Instructions 920-F / Fixed Mount CPU Holder Affix Exterior Housing to under surface of desk and/or to wall. Remove thumbscrew and washer, and slide CPU Clamp out. If mounting to a wall, remove plastic side cover by removing 3 Phillips screws from the interior of the Exterior Housing.
- Page 4 1500153 920 CPU Holders - Assembly Instructions Insert CPU and secure top and side clamps Place CPU onto holder. Slide top clamp firmly against the CPU to hold in place and tighten thumb screw. Note for smaller CPUs it may be necessary to reposition the CPU clamp by removing the two Phillips head screws, moving the angle bracket inward, and reinstalling the screws.
- Page 5 1500153 920 CPU Holders - Assembly Instructions Secure front locking mechanism Insert front locking strip and secure with locking pin and key. Secure top bracket with locking pin and key. 920-T / Slide & Swivel Track Mount CPU Holder Determine position of track based on clearance for swivel and mount track to desk If there is enough room to swivel the CPU for access to the back of the unit, align the track perpendicular to the front of the desk, as shown.
- Page 6 1500153 920 CPU Holders - Assembly Instructions With the track aligned so that the extended center tab is in the back (or closest to the wall), affix track to under surface of desk in parallel or perpendicular orientation using four screws. Leave the holes nearest the front of the track empty for now.
- Page 7 1500153 920 CPU Holders - Assembly Instructions Assemble Swivel Disk Attach Swivel Disk to top of Exterior Housing with two screws and Star Lock Washers as shown. Attach glides onto Swivel Disk with the lip side (long tab) facing down toward the CPU holder. Long tab down Insert CPU and secure top and side clamps Slide top clamp firmly against the CPU holder to hold in place and tighten thumb screw.
- Page 8 1500153 920 CPU Holders - Assembly Instructions Insert CPU and Housing Into Track Slide Swivel Disk into Track. Attach Track Stop to front of Track using the remaining two screws. 920-TL / Slide & Swivel Track Mount CPU Holder w/Lock Attach Track, adjust brackets and assemble Swivel Disk Follow steps 1 –...
