Assembly & Installation Instructions:

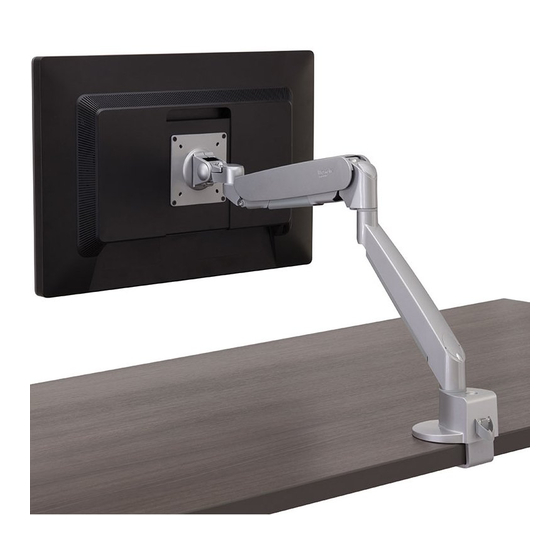

Conform Articulating Arm CONF-1SDA-WOB-S
Parts Included
A
Conform Articulating Arm
Qty: 1
Required Parts Sold Separately
Selected base option with mounting hardware
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
Do not exceed 17 lb.
1

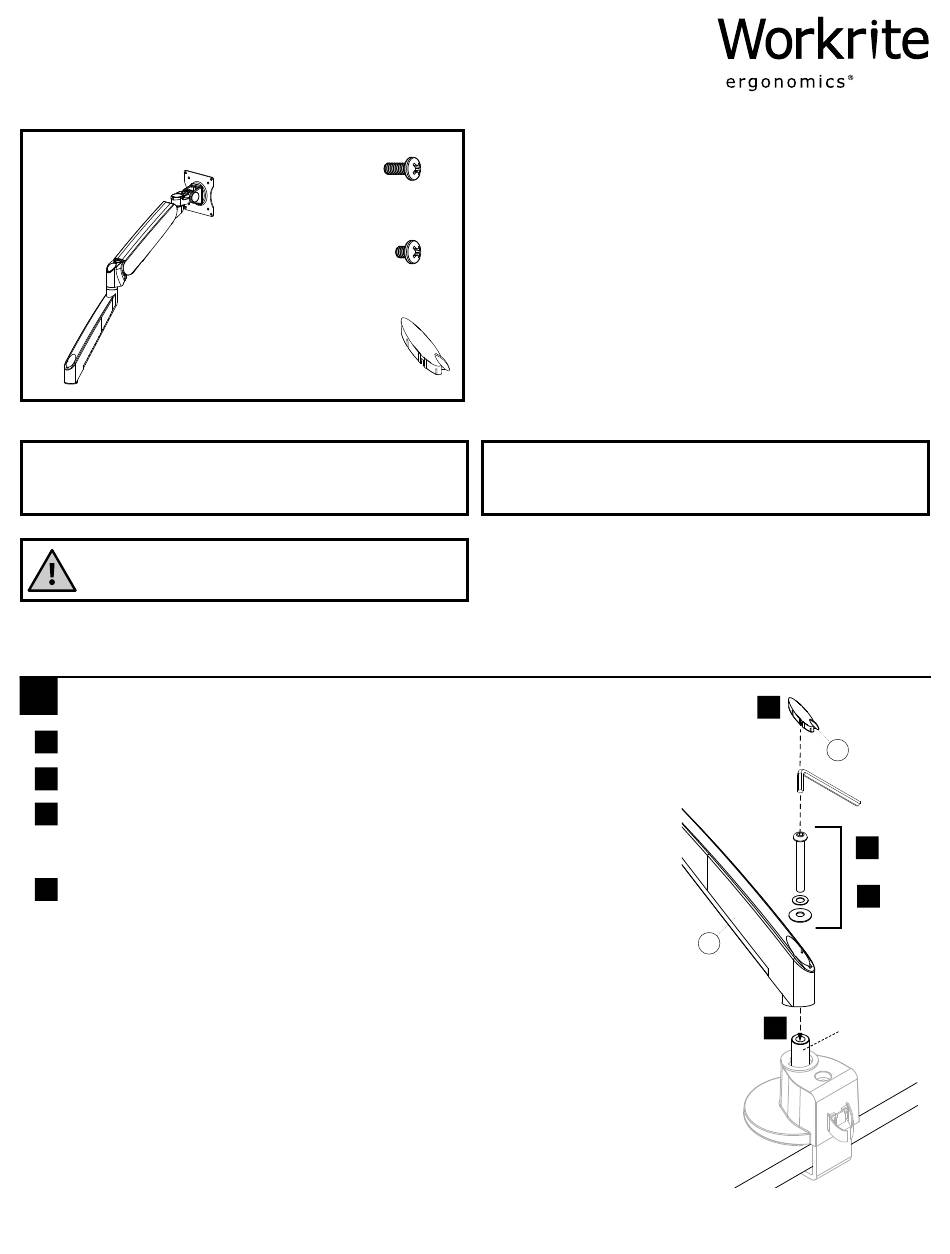

Attach Conform Articulating Arm to Selected Base Option
a
Remove Bolt and Washers from base (if not already removed.)
b Place the Conform Arm (A) on the Base Pin.
c Assemble Bolt with Washers as shown. Insert through the
bottom of the arm assembly and into the base. Tighten with
5 mm Allen wrench. Be sure the arm is tight but rotates freely.
d Snap Pivot Cover Cap (D) into top of arm assembly.
1 of 4
B
M4 × 10 VESA
mount screw
Qty: 4
C
M4 × 6 VESA
mount screw
Qty: 4
M8 Flat Head Cap Screw
D
Pivot Cover Cap
Qty: 1
Plastic Cap
Pivot Pin
M4 8mm Screw M4 12mm Screw
7/32" Allen Wrench
1/8" Allen Wrench
Tools Required
#2 Phillips head screwdriver
Button Head Allen Cap Screw
2.5 mm Allen wrench included with base
5 mm Allen wrench included with base
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
M4 16mm Screw Spacer
Plastic Pivot Washer Steel Washer
d
D
a
Remove
c
Replace
A
b
Base Pin
C-Clamp Mount shown
