Workrite Ergonomics CONF-ADPT-DA-S Assembly/Installation Instructions

Assembly & Installation Instructions:
Dual Arm Adaptor CONF-ADPT-DA-S
Parts Included
A
Dual Arm Adaptor Assembly
Qty: 1
Required Parts Sold Separately
Conform Monitor Arm.
Selected base option with mounting hardware.
Do not use on hollow core tables.
Do not rotate or suspend arm (s) beyond table surface.
The weight difference between the two monitors should not
exceed 15 lb.
1

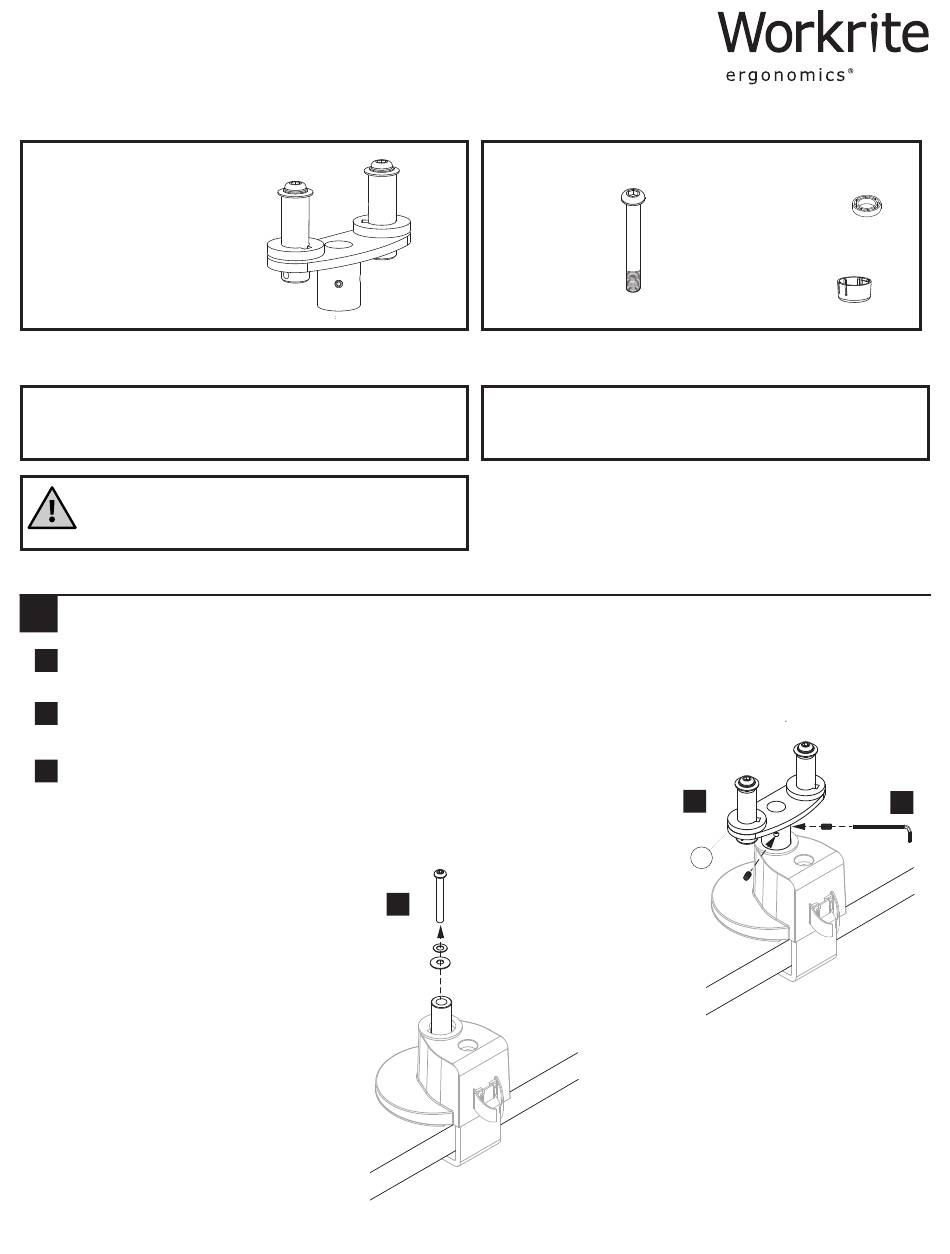

Attach Dual Arm Adaptor to selected base option
a Remove the Bolt and Washers from base (if not already removed)
and set aside.
b
Place Dual Arm Adaptor Assembly (A) on the pin mount from your
selected base option.
c
Tighten the two pre-installed set screws with the 2.5 mm Allen Wrench
(included with base) to secure the Adaptor to the base. The adaptor
should be locked in place and not rotate.
Note:
If you are installing Articulating
Arms, proceed to Step 2.
If you are installing Static Arms,
proceed to Step 3.
1 of 2
B
Static Arm Bolt
M8 x 63 mm
Qty: 2

Tools Required

Phillips head screwdriver, 2.5 mm Allen Wrench, 5 mm
Allen Wrench.
a
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
C
Static Arm Spacer
Qty: 2
D
Dual Arm Adaptor
End Cap
Qty: 2
b
A
Optional C-Clamp
Base shown
c
