Assembly & Installation Instructions:

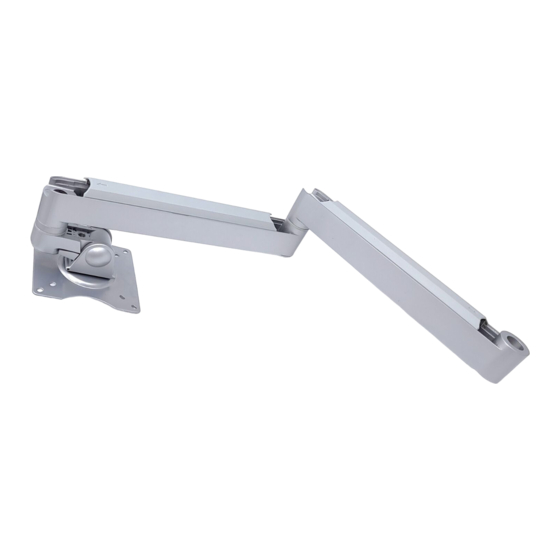

Conform Static Arm CONF-1SDS-WOPB-S
Parts Included
A
Conform Static Arm
Qty: 1
Required Parts Sold Separately
Selected base option with mounting hardware.
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
Do not exceed 16 lb. per Arm.
1

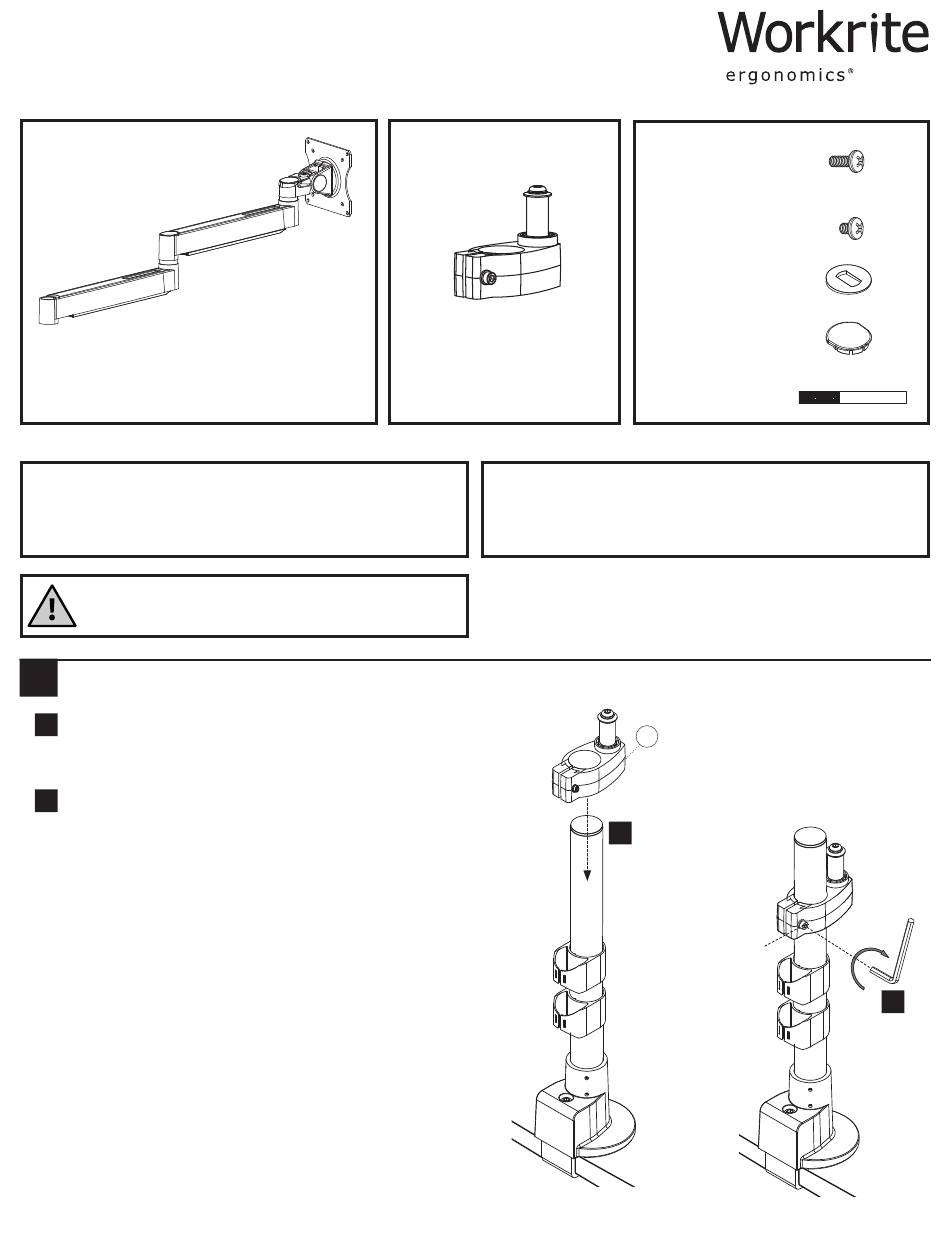

Attach the Single Pole Mount Adaptor to Selected Pole Option
a
Place the selected Single Pole Mount Adaptor
Assembly (B) on the selected pole option, at
your desired monitor height.
b
Tighten the clamp screw on the Single Pole
Mount Adaptor Assembly with the 5 mm
Allen wrench, included with base, to secure
Adaptor to Pole.
1 of 6
B
Single Pole Mount
Adaptor Assembly
Qty: 1
Tools Required
#2 Phillips head screwdriver
2.5 mm Allen wrench (included with base)
4 mm Allen wrench (included with base)
5 mm Allen wrench (included with base)
14" Pole shown
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
C
M4 × 10 mm VESA mount screw
Qty: 4
D
M4 × 6 mm VESA mount screw
Qty: 4
E
Wedge Washer
Qty: 1
F
Pivot Cover Cap
Qty: 1
G
Hook & Loop Strips
Qty: 4
B
a
Clamp screw
b
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Workrite Ergonomics Conform CONF-1SDS-WOPB-S
Summary of Contents for Workrite Ergonomics Conform CONF-1SDS-WOPB-S
- Page 1 Tighten the clamp screw on the Single Pole Mount Adaptor Assembly with the 5 mm Allen wrench, included with base, to secure Adaptor to Pole. Clamp screw 14" Pole shown 1 of 6 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 2 Tighten the pre-installed set screw with 2.5 mm Allen wrench, included with base, to lock in place. Pre-installed set screw (behind) Snap on Pivot Cover Cap (F) Pin with spacer 2 of 6 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 3 Loosen the set screw using 2.5 mm Allen wrench included with base. Remove the Pivot Screw using 4 mm Allen wrench included with base. Pivot Head Remove the Pivot Head. Slotted Pivot Slotted Pivot Adjustment Adjustment Pivot Screw 3 of 6 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 4 Once the Pivot Head is installed into the Slotted Pivot Adjustment area, you can install the monitors to the VESA Mount in the following step, then adjust the outside monitors in or out for ideal placement. 4 of 6 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
-
Page 5: Important Note
To increase capacity(+) turn clockwise using a 5 mm Allen wrench (included with base) until the monitor reaches a balanced adjustment. To decrease capacity(-) turn counter-clockwise until the monitor reaches a balanced adjustment. 5 of 6 Workrite Ergonomics | 800.959.9675 www.workriteergo.com... -
Page 6: Cable Management
Single Pole Mount Adaptor ........... CONF-ADPT-SPM-S Dual Pole Mount Adaptor ............CONF-ADPT-DPM-S Quick Release Adaptor ............MON-ADPTVQR-W-B Technical Support: Please call Workrite Technical Support while at the Workrite product. (800) 959-9675 option 2. 6 of 6 Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1500247 Rev D...
