Modine Manufacturing ECO ICE Series Technical Manual page 10

Model with ø 560 mm fan motor
Caution
Application of adequate thermal control systems on feeder lines is mandatory.
Performance of all electric heaters must be periodically controlled to avoid damage due to ice build-up.
The manufacturer is not liable in any way for defects caused by non detected malfunctions.
Model with ø 560 mm fan motor
Caution
Application of adequate thermal control systems on feeder lines is mandatory.
Performance of all electric heaters must be periodically controlled to avoid damage due to ice build-up.
The manufacturer is not liable in any way for defects caused by non detected malfunctions.
8
www.modine.com

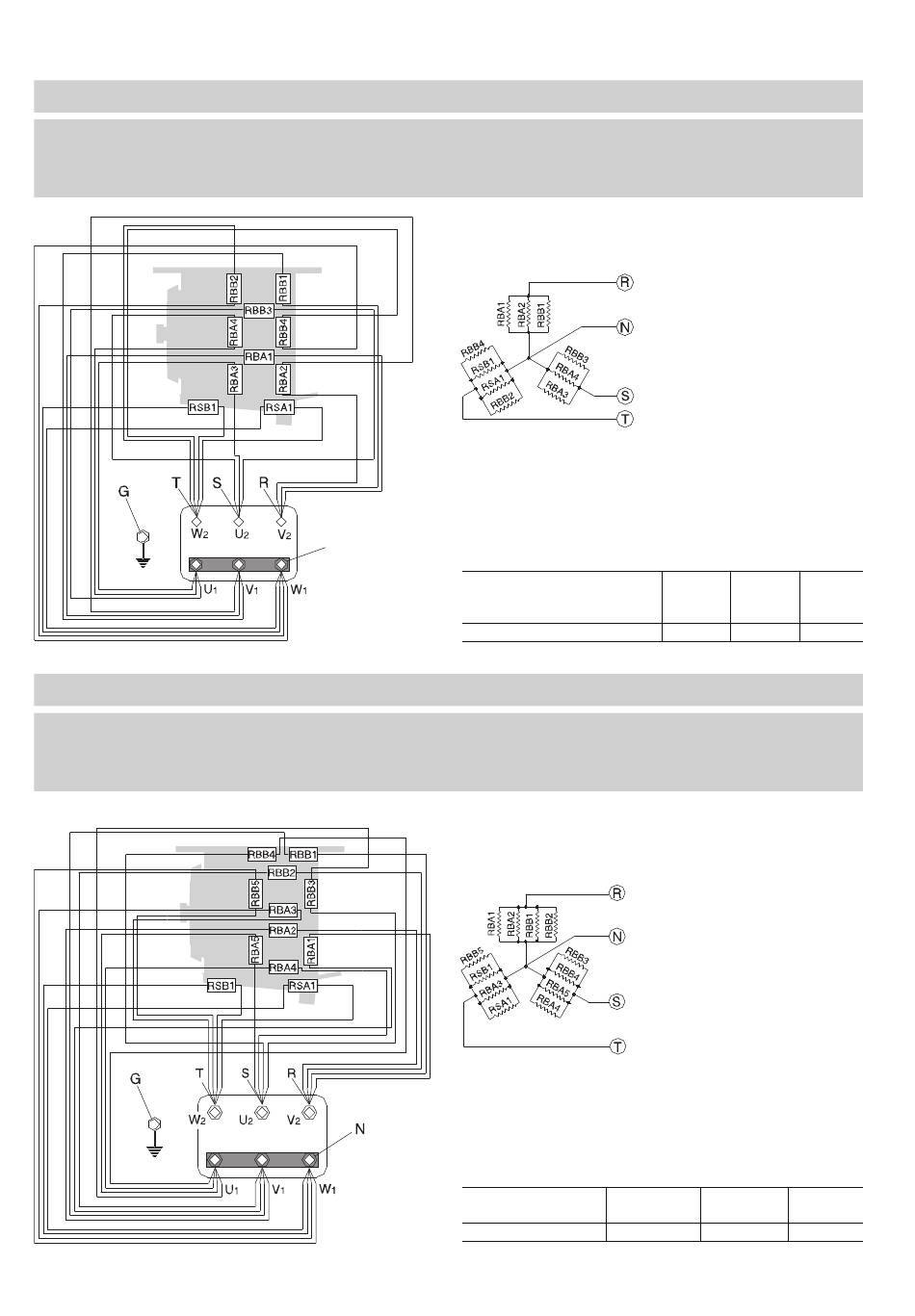

400V/3/50 Hz Connection (preset)
RBA - High power electric heaters in coil
RBB - Low power electric heaters in coil
RSA - High power electric heaters on drip tray
RSB - Low power electric heaters on drip tray
N
ICE model ø 560
Total power (W)
400V/3/50 Hz Connection (preset)
RBA - High power electric heaters in coil
RBB - Low power electric heaters in coil
RSA - High power electric heaters on drip tray
RSB - Low power electric heaters on drip tray
ICE model ø 560
Total power (W)
51A 52A 53A
51B 52B 53B
06 08 10 12 06 08 10 12 06 08 10 12
6750 16050 24000
52D 53D
06 08 10 12 06 08 10 12
19260 28800
6-8RR
54A
54B
06 08 10 12
32250
12RR
54D
06 08 10 12
38700
