Avonic CM60-IPX-CAJA (EOL) Manual

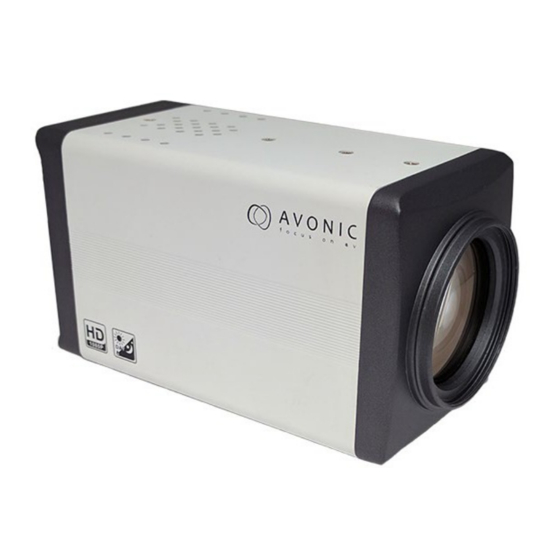

Box camera 20x zoom ip white
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

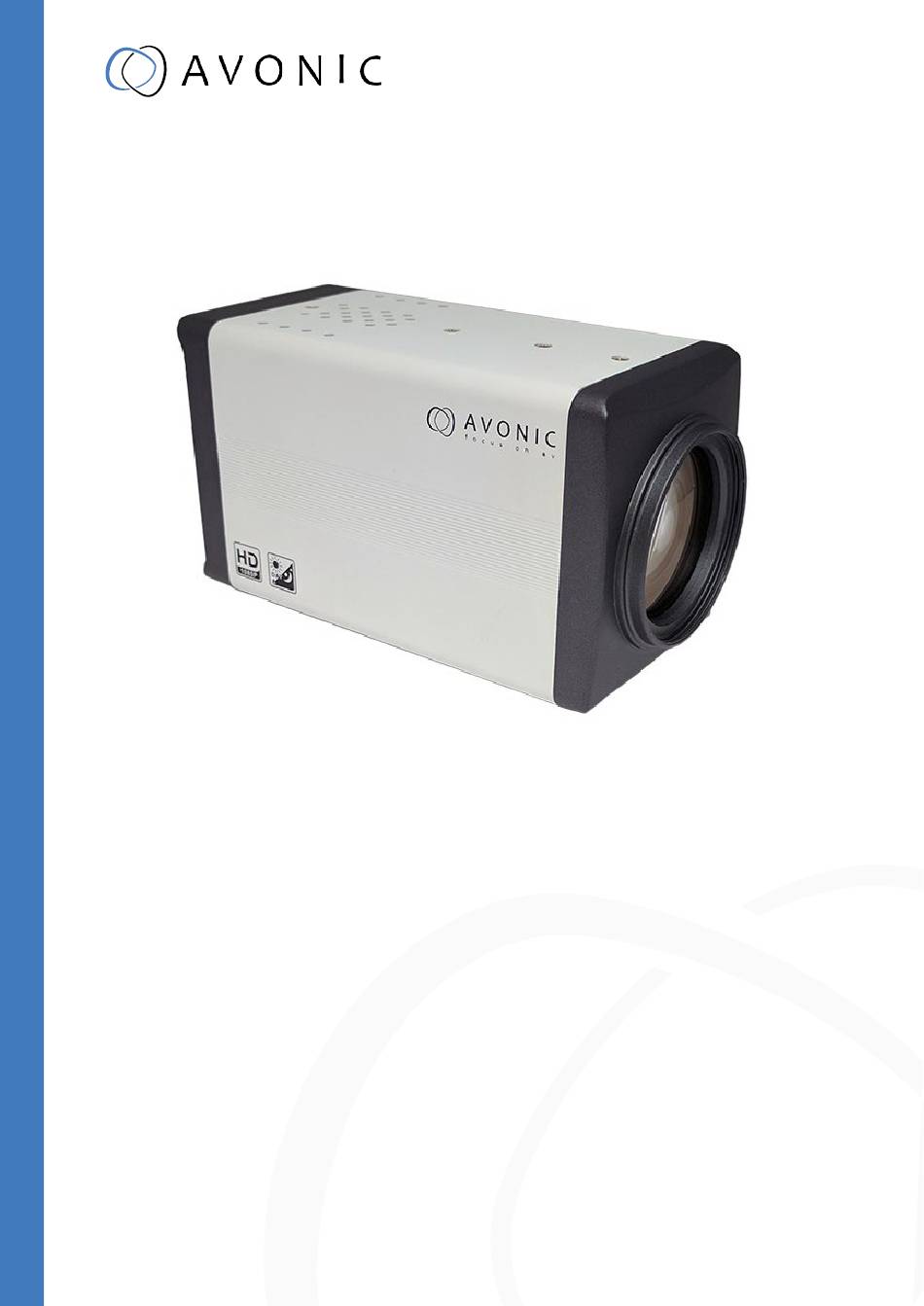

Box
Camera 20x Zoom IP White
AV-CM60-IPX-BOX
www.avonic.com
User Manual |Version 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM60-IPX-CAJA (EOL) and is the answer not in the manual?

Questions and answers

Related Manuals for Avonic CM60-IPX-CAJA (EOL)

Summary of Contents for Avonic CM60-IPX-CAJA (EOL)

  • Page 1 Camera 20x Zoom IP White AV-CM60-IPX-BOX www.avonic.com User Manual |Version 3.0...

  • Page 2: Table Of Contents

    Contents Disclaimer and Contact ................4 Disclaimer ................................4 Copyright © 2021 AVONIC All Rights Reserved..................... 4 Contact ................................... 4 Join Avonic on Social Media ..........................4 Introduction ....................5 Purpose of This Manual ............................5 Target Audience ..............................5 Document Structure ..............................
  • Page 3 VISCA Camera Command List ........................30 VISCA Camera Control Command List ......................32 VISCA Query Command List..........................35 Pelco-D Protocol Command List ........................42 Pelco-P Protocol Command List ........................43 VISCA over IP commands ..........................44 Appendix B Dimensions ................. 56 www.avonic.com...

  • Page 4: Disclaimer And Contact

    “look and feel” and arrangement of such Content, contained in this Manual is owned, controlled or licensed by or to Avonic, and is protected by trade dress, copyright, patent and trademark laws, and various other intellectual property rights and unfair competition laws.

  • Page 5: Introduction

    Introduction Purpose of This Manual This Manual describes the safety precautions and the instructions for safe unpackaging, installation, operation, maintenance and disposal of the Avonic-IPX-BOX. In this Manual, the Avonic-IPX-BOX is referred to as the 'Product'. Target Audience This Manual is developed for installation technicians who install the Product at client sites, and for IT professionals who are responsible for operating the Product.

  • Page 6: Safety

    Installation Set up this Product on a hard, stable surface or mount it to a wall or ceiling. Only use an Avonic mount for mounting to a wall or ceiling. Ensure the mounting construction is capable of supporting four times the weight of the Product.
  • Page 7 Power adapter To operate the Avonic power adapter safely and reduce the possibility of heat-related injury or damage, plug the power adapter directly into a power outlet. Don’t use the power adapter in wet locations, and don’t connect or disconnect the power adapter with wet hands. Stop using the power adapter and any cables if any of the following conditions exist: •...

  • Page 8: Package Contents

    Package contents Quantity Description Avonic SKU 1 pc PTZ Camera CM60-IPX-BOX 1 pc Power Supply 12V/1A CM-PSU-BOX Accessories Wall Mount for CM60-IPX-BOX Avonic SKU : CM-WMW-BOX www.avonic.com...

  • Page 9: Product Overview

    The cameras are equipped with a Panasonic CMOS sensor combined with a glass high-quality glass lens with 12x /20x /30x optical zoom. Control these cameras over RS232/485 with the Avonic CM-CON100 PTZ controller or any third party controller that supports VISCA, Pelco-P/D protocols.

  • Page 10: Main Unit

    *Audio Line out interface Right key MENU key Down key 10. Left key 11. Up key 12. RS485 interface * Audio embedding only over IP! Bottom Parts 1 Camera Back Cover 2 Installation Positioning Track 3 Camera Front Cover 4 Lens Cap www.avonic.com...

  • Page 11: Installation

    Installation Connection Diagram Power adapter This equipment is equipped with a 12V/1A DC power supply. Insert the power supply according to the requirements. The Power LED is flashing red when turned on. www.avonic.com...

  • Page 12: Operation

    Directly press "MENU" button to enter the main menu. MENU Exposure Color Image Focus Noise Reduction Setting Information Restore Factory Settings Exit Use the select key up and down. Choose a menu item, press【MENU】 to enter submenu. Choose[Exit] press【MENU】 to exit menu. www.avonic.com...

  • Page 13: Exposure

    Optional items: -7 ~ 7. • Backlight: Set the backlight compensation, Optional items: On, Off. • DRC Strength: Set up digital wide dynamic strength, can set up different levels of wide dynamic effect, Optional items: 0 ~ 8. www.avonic.com...

  • Page 14: Color

    B Gain: Adjust the camera white balance mode of blue gain, are effective only when the white balance mode to Manual, Optional items: 0 ~ 255. • Saturation: Color saturation adjustment, Optional items: 60% ~ 200%. Hue: Chroma adjustment, Optional items:0 ~ 14. • www.avonic.com...

  • Page 15: Image

    • Flip-H: Image flipped horizontally. Optional items: On, Off. • Flip-V: Image Flip Vertical. Optional items: On, Off. • Gamma: Optional items: default, 0.45, 0.5, 0.56, 0.63. Style: Optional items: Norm, Clarity, Bright, Soft,5S. • • Return: get back. www.avonic.com...

  • Page 16: Focus

    Auto Focus: Autofocus camera settings, Optional items: On, Off. Return: get back. • NOISE REDUCTION NOISE REDUCTION 2D NR 3D NR • 2D NR:2D noise reduction, Optional items:1 ~ 5,Close,Auto. • 3D NR:3D noise reduction, Optional items:1 ~ 8,Close. Return: get back. • www.avonic.com...

  • Page 17: Setting

    Baudrate: Camera baud rate settings, Optional items: 38400, 19200, 9600, 4800, 2400. • SDI Video Format: Camera video format settings, Optional items: 1080P60, 1080I60, 1080P30, 720P60. • Lens: Set lens type, Optional items: Type1, Type2. Return: get back. • www.avonic.com...

  • Page 18: Information

    RESTORE FACTORY SETTINGS • Yes: verify, press【MENU】to restore factory Settings. • No: cancel, press【MENU】to back to menu. Return: get back. • Serial Communication Control COM port settings RS485 Communication Control: The camera can be controlled via RS485, Half-duplex mode: www.avonic.com...

  • Page 19: Ip Camera Control

    8x 01 04 0B 02 FF Equivalent to the back【MENU】key. 8x 01 04 0B 03 FF x:Camera VISCA address number. For the complete VISCA command list, see Appendix A IP camera control IP camera default IP address is 192.168.100.99, user "admin", password "admin" www.avonic.com...
  • Page 20 ----> Restart camera TCP/UDP Control The Avonic IP camera is implemented with a TCP server inside. The default TCP port number is 5678. This number can be changed in the WebGUI in the Network Menu. Once the connection between client and server is set up, the client will be able to send VISCA PTZ commands to the server. The server then parses and executes the VISCA PTZ command.
  • Page 21 Visit VLC media server procedure Open VLC media player, click "Media"->"Open Network Steam ", or click "Ctrl+N"; as below: Input URL address: rtsp://ip: port number/1 (First stream); rtsp://ip: port number/2 (Second stream). NOTE！ RTSP port number default value is 554. www.avonic.com...
  • Page 22 Double click viewing window, will show full-screen, double click again, will return to initialized size. 1) Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again. 2) Audio control buttons: can set silent mode. 3) Full screen switch button. Language selection Chinese/English/Russian www.avonic.com...
  • Page 23 3. Encode Level Support baseline, main profile, high profile. 4. Resolution First Stream 1920x1080,1280x720, 1024x576,960x540,640x480,640x360 Resolution Second stream: 1280x720,1024x576, 720x480, 720x408, 640x360, 480x270, 320x240, 320x180 5. Bit Rate First stream 32 ~ 20480 kbps Second stream 32 ~ 6144 kbps www.avonic.com...
  • Page 24 Constant bit rate: video coder will be coding according to preset speed Variable bit rate: video coder will adjust the speed based on preset speed to gain the best image quality. 9. Fluctuate level Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6 System Setting www.avonic.com...
  • Page 25 Click the "Reboot" button, system restart. 3. User and password The user can modify the password (letters and Numbers only) 4. Apply / Cancel Modify password and click the "apply" button to the login page, press "cancel" button to cancel password change. Network Setting www.avonic.com...
  • Page 26 "On", "Off", "Video", "Audio", etc. 5. RTSP Setting Setting network camera RTSP protocol of "On", "Off". 6. ONVIF Setting Setting the ONVIF protocol and ONVIF authorization "On", "Off". 7. Multicast Setting Setting multicast "On", "Off", and multicast address(default address 224.1.2.3) and www.avonic.com...
  • Page 27 6688) 8. Apply / Cancel Modify network parameters then press "Apply" button to modify network parameters, press "Cancel" button to cancel network parameters. Information Show the current device information, as shown to the right. www.avonic.com...

  • Page 28: Maintenance

    1. Check whether the power cord is connected, voltage is OK, POWER lamp is flashing red. 2. Check whether the camera can self-test after startup. 3. Check the BOTTOM switch and make sure the two switches are both set OFF. 4. Check video cable is connected correctly. Abnormal display of image  www.avonic.com...

  • Page 29: Control

    2. Check control cable is connected correctly. Contact For any questions or suggestions, contact the reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the recent manual or datasheet, look at the Avonic website.

  • Page 30: Visca Camera Command List

    = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF Direct pqrs: Zoom Position 8x 01 04 47 0p 0q 0r 0s Command Function Command Package Note ACK/Comletion z0 4y FF Return when the command is accepted. Messages (y: Socket No.) www.avonic.com...
  • Page 31 Command Not z0 6y 41 FF Returned when a command Executable canot be executed due to (y: Execution command current conditions.For Socket example, when commands No. Inquiry command: 0) controlling the focus manually are received during auto focus. www.avonic.com...

  • Page 32: Visca Camera Control Command List

    Manual Control mode OnePush trigger 8x 01 04 10 05 FF One Push WB Trigger CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF www.avonic.com...
  • Page 33 Gain Setting 8x 01 04 0C 02 FF Down 8x 01 04 0C 03 FF Direct 8x 01 04 0C 00 00 0p pq: Gain Position 0q FF Gain Limit 8x 01 04 2C 0p FF p: Gain Position www.avonic.com...
  • Page 34 Dynamic Hot Pixel Setting (0: 0ff, level 1 to 6) CAM_ApertureMode Auto 8x 01 04 05 02 FF Sharpness Auto (sharpness) Manual 8x 01 04 05 02 FF Sharpness Manual Reset 8x 01 04 02 00 FF Aperture Control www.avonic.com...
  • Page 35 8x 01 06 01 VV WW 03 (high speed) 02 FF Left 8x 01 06 01 VV WW 01 WW: Tilt speed 0x01 03 FF (low speed) to 0x14 Right 8x 01 06 01 VV WW 02 (high speed) 03 FF www.avonic.com...
  • Page 36 High/Normal/Low Normal 8x 01 04 58 02 FF 8x 01 04 58 03 FF CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p pq: Brightness Position 0q FF www.avonic.eu...

  • Page 37: Visca Query Command List

    CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) y0 50 04 FF Internal power circuit error CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position www.avonic.com...
  • Page 38 50 00 00 0p 0q FF pq: ExpComp Position CAM_BacklightMode 8x 09 04 33 FF y0 50 02 FF y0 50 03 FF CAM_Nosise2DMode 8x 09 04 50 FF y0 50 02 FF Auto Noise 2D y0 50 03 FF Manual Noise 3D www.avonic.com...
  • Page 39 Value (00 to FF) CAM_ColorGainInq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%) CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID www.avonic.com...
  • Page 40 8x 09 06 11 FF y0 50 ww zz FF ww: Pan Max Speed zz: Tilt Max Speed Pan-tiltPosInq 8x 09 06 12 FF y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: Tilt Position 0z 0z 0z 0z FF www.avonic.com...
  • Page 41 50 03 FF Flip-HV CAM_IridixInq 8x 09 04 A7 FF y0 50 00 00 0p 0q FF pq: Iridix Position CAM_AFZone 8x 09 04 AA FF y0 50 00 FF y0 50 01 FF Center y0 50 02 FF Bottom www.avonic.com...
  • Page 42 Exp Comp. Position CAM_OtherBlockInq 8x 09 7E 7E 02 FF y0 50 0p 0q 00 0r 00 00 p.bit0: Power 1:On, 00 00 0:Off 00 00 00 00 00 FF q.bit2: LR Reverse 1:On, 0:Off r.bit3~0: Picture Effect Mode www.avonic.com...
  • Page 43 0q rr 0s 0t 0u FF flip(1:On, 0:Off) rr.bit6~3: Color Gain (0h(60%) to Eh(200%)) s: Flip(0: Off, 1:Flip-H, 2:Flip-V, 3:Flip-HV) t: bit2~0: NR2D level u: Gain limit Remark： 1.[x] in the above list refer to the camera address, [y] = [x + 8] www.avonic.com...

  • Page 44: Pelco-D Protocol Command List

    0x00 0x00 Query Tilt Position 0xFF Address 0x00 0x5B Value High Value Low Response Byte Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position 0xFF Address 0x00 0x5D Value High Value Low Response Byte Byte www.avonic.com...

  • Page 45: Pelco-P Protocol Command List

    Query Tilt Position 0xA0 Address 0x00 0x5B Value High Value Low 0xAF Response Byte Byte Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Query Zoom Position 0xA0 Address 0x00 0x5D Value High Value Low 0xAF Response Byte Byte www.avonic.com...

  • Page 46: Visca Over Ip Commands

    PTZ commands to the server. The server then parses and executes the PTZ command. The Avonic IP Camera has also implemented a UDP server. The UDP port number is fixed on 1259. Once the connection between client and server is set up, the client will be able to send PTZ commands to the server.
  • Page 47 The completion message for the command is not returned. No Socket 90 6y 05 FF Returned when no command is (y: Socket No.) executed in a socket specified by the cancel command, or when an www.avonic.com...
  • Page 48 81 01 04 07 2p FF p = 0(low speed) - F(high speed) speed) Wide(Variable 81 01 04 07 3p FF speed) Direct 81 01 04 47 0p 0q 0r 0s FF pqrs(0-F): Zoom Position CAM_Focus Stop 81 01 04 08 00 FF www.avonic.com...
  • Page 49 R Gain CAM_Bgain Reset 81 01 04 04 00 FF Manual Control of B Gain 81 01 04 04 02 FF Down 81 01 04 04 03 FF Direct 81 01 04 44 00 00 0p 0q pq: B Gain www.avonic.com...
  • Page 50 81 01 04 3E 02 FF Exposure Compensation On/Off 81 01 04 3E 03 FF Reset 81 01 04 0E 00 FF Exposure Compensation Amount Setting 81 01 04 0E 02 FF Down 81 01 04 0E 03 FF www.avonic.com...
  • Page 51 81 01 04 3F 00 pp FF pp: Memory Number(=0 to 127) 81 01 04 3F 01 pp FF Recall 81 01 04 3F 02 pp FF CAM_LR_Reverse 81 01 04 61 02 FF Image Flip Horizontal On/Off 81 01 04 61 03 FF www.avonic.com...
  • Page 52 81 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF RelativePosition 81 01 06 03 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF Home 81 01 06 04 FF Reset 81 01 06 05 FF www.avonic.com...
  • Page 53 AF Zone weight select Center 81 01 04 AA 01 FF Bottom 81 01 04 AA 02 FF CAM_ColorHue Direct 81 01 04 4F 00 00 00 0p p: Color Hue setting 0h (− 14 dgrees) to Eh ( +14 degrees www.avonic.com...
  • Page 54 90 50 00 00 0p 0q FF pq: B Gain CAM_AEModeInq 81 09 04 39 FF 90 50 00 FF Full Auto 90 50 03 FF Manual 90 50 0A FF Shutter priority 90 50 0B FF Iris priority 90 50 0D FF Bright www.avonic.com...
  • Page 55 90 50 02 FF tModeInq 90 50 04 FF B&W CAM_MemoryInq 81 09 04 3F FF 90 50 0p FF p: Memory number last operated. SYS_MenuModeI 81 09 06 06 FF 90 50 02 FF 90 50 03 FF www.avonic.com...
  • Page 56 81 09 04 2C FF 90 50 0q FF p: Gain Limit CAM_DHotPixelIn 81 09 04 56 FF 90 50 0q FF p: Dynamic Hot Pixel Setting (0: 0ff, level 1 to 6) 81 09 04 58 FF 90 50 01 FF High www.avonic.com...
  • Page 57 90 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 degrees) CAM_AWBSensiti 81 09 04 A9 FF 90 50 00 FF High vityInq 90 50 01 FF Normal 90 50 02 FF www.avonic.com...

  • Page 58: Appendix B Dimensions

    Appendix B Dimensions Front Rear Side Bottom All sizes are in mm Weight: 0.85 kg www.avonic.com...
