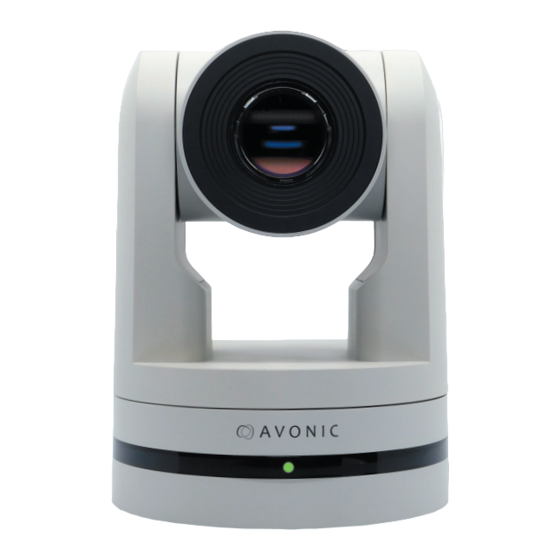

Avonic PTZ Camera 20x zoom
CM70-NDI
www.avonic.eu | User Manual | Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM70-NDI-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic CM70-NDI-B

Summary of Contents for Avonic CM70-NDI-B

  • Page 1 Avonic PTZ Camera 20x zoom CM70-NDI www.avonic.eu | User Manual | Version 1.0...

  • Page 2: Table Of Contents

    Join Avonic ................
  • Page 3 VISCA over IP......................35 Appendix B Dimensions ....................47 CMOS Image Sensors Characteristics ..............48 www.avonic.eu...

  • Page 4: Introduction

    For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local distri- butor on the website of Avonic. For the most recent version of the manual or datasheet, look at the Avonic website: www.avonic.eu Join Avonic facebook.com/avonicPTZ...

  • Page 5: Package Contents And Accessories

    PACKAGE CONTENTS AND ACCESSORIES Contents Quantity Description Avonic SKU 1 pc PTZ Camera AV-CM70-NDI-W/B 1 pc Power Supply 12V/A AV-CM40-PSU 1 pc Remote Control AV-CM40-RC 1 pc USB cable type A to type A AV-USB20-AA 1 pc RS232 9-pin male to 8-pin male AV-CM-RS232...

  • Page 6: Product Overview

    The CM70-NDI is equipped with NewTek’s high-efficient IP technology called NDI®| HX. This all-in-one PTZ camera from Avonic allows the move to an all IP infrastructure even for mobile applications. With IP deployment on existing networks all cameras detected within your network become directly available for use without complex configuration.

  • Page 7: Installation

    3G-SDI video output SMTPE 425M level B compliant HDMI Type A USB2.0 Type A, UVC video output and control RJ45 Ethernet connection, with PoE, NDI®| HXcertified DC12V power with locking screw (connect the supplied DC PSU) Power ON/OFF Fall protection eye www.avonic.eu...

  • Page 8: System Select Switch

    Address on the osd (Note: If the position preset 0 has been stored, the position preset 0 will be called after initialization). From this point onwards the user can control the camera with RC, Serial, USB or IP Communi- cation. RS232 Interface www.avonic.eu...

  • Page 9: Rs232 Network Connection Diagram

    IP network connection diagram Connect an Avonic PoE camera to a LAN using a standard (PoE) switch, if the unit is simultaneously connected to both PoE and its own power supply, the power supply will take priority. If the power supply is disconnected when PoE is present, the camera will remain operational without interruption.

  • Page 10: Operation

    OPERATION Remote controller Power Camera select Number Keys Focus + - Auto/Manual Focus Zoom + - Set & Clear Preset PTZ keys (up/down/left/right) Home BLC (Back Light Control) ON/OFF Menu Function Keys (F1/F2/F3/F4) Blank buttons www.avonic.eu...
  • Page 11 “Set Preset”. You can call the preset by pressing the number 0-9 on the remote control. Set Preset: [SET PRESET]+[<number>] Call Preset: [<number>] Clear Preset: [CLEAR PRESET]+[<number>] If the position preset 0 has been stored, this position will be called after initialization. www.avonic.eu...

  • Page 12: Other Key Combinations

    : Switch the video format to 1080p25* [#]+[#]+[8] : Switch the video format to 720p30* [#]+[#]+[9] : Switch the video format to 720p25* *NOTE: THE CAMERA RETURNS TO THE VIDEO OUTPUT SETTING OF THE ROTARY DIAL AFTER A REBOOT www.avonic.eu...

  • Page 13: Osd Menu

    Language Setup Protocol The OSD menu can be accessed by the Re- Visca Address mote Control or an Avonic PTZ controller. In the Visca Address Fix following pages, the navigating is described for using the IR Remote Control. Pelco-P Address...
  • Page 14 2400 / 4800 / 9600 / 38400 / 115200 Select Item Change Value [Menu] Back 3. CAMERA CAMERA Exposure Color Image Focus Noise Reduction Style Soft / Default / Normal / Clarity / Bright Select Item Change Value [Menu] Back www.avonic.eu...
  • Page 15 Auto / 2400K ~ 7100K 100K increments / Manual / OnePush RG Tuning -10 ~ 10 BG Tuning -10 ~ 10 0 ~ 255 0 ~ 255 Saturation 60% - 200% 0 ~ 14 AWB Sensitivity Low / Middle / High Select Item Change Value [Menu] Back www.avonic.eu...
  • Page 16 1 ~ 8 / Auto/ OFF Dynamic Hot Pixel 1 ~ 5 / OFF Select Item Change Value [Menu] Back 3.6 STYLE STYLE Style Default / Normal / Clarity / Bright / Soft Select Item Change Value [Menu] Back www.avonic.eu...
  • Page 17 DHCP ON/OFF IP Address xxx.xxx.xxx.xxx [Menu] Back 7. VERSION VERSION MCU Version date Camera Version date AF Version date [Menu] Back 8. RESTORE DEFAULT RESTORE DEFAULT Restore default? NO / YES Select Item Change Value [Menu] Back [Home] OK www.avonic.eu...

  • Page 18: Serial Communication Control

    Network settings By default the ip address of the camera is 192.168.5.163 with username and password admin/admin. Avonic IP cameras can be controlled by any device using the Visca over IP protocol (see command list Appendix A). The control parameters for the CM4x and CM7x-IP cameras are as follows: •...

  • Page 19: Webgui

    On the right is PTZ control, speed by zoom slider, focus and zoom functionality. Click on the camera icon below the screen to switch preview between main stream and sub stream. Note that preview only works when the main- or sub-stream is set to H264 (see page 22). www.avonic.eu...

  • Page 20: Audio

    Select encoding type mp3, AAC or G.711A Select sample rate: 16000, 32000, 44100, 48000 Sample bits: always 16 Bitrate Kbps : 32, 48. 64, 96, 128 Channel: Mono or Stereo Input volume: 1 ~ 10 Audio Delay (ms) 0 ~ 200 www.avonic.eu...

  • Page 21: Video

    Big Package (approx. 60kb MTU size) Click on ‘Save’ to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully. * NOTE: a reboot is required after changing this setting. www.avonic.eu...
  • Page 22 Specify the ip address to which you want the Unicast stream pushed Port: 4000 (default) 4002 (default) Acces Method: rtp://224.1.2.3:4000 rtp://224.1.2.3:4002 Click on ‘Save’ to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully. www.avonic.eu...
  • Page 23 Focus, Exposure, Color, Image, Noise Reduction, Style. If a value is changed with the remote control, use the [refresh] button to update the webgui. Note that only a picture will be shown with the main video stream set to H264. www.avonic.eu...
  • Page 24 If the additional license for SRT and the Customizable Color Matrix (CCM) has been purchased, the Camera Settings menu will have an extra tab in the camera settings; CCM. The CCM is intended to finetune the color settings of the camera to seamlessly integrate with an existing camerasystem. www.avonic.eu...
  • Page 25 Scale size automatically to resolution for both main- and substream, check or uncheck box, if checked the ca- mera name and time overlay will always scale with the image, keeping the proportions intact. Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully www.avonic.eu...
  • Page 26 The resolution of the USB output is determined by the computer connected to it. Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully www.avonic.eu...

  • Page 27: Network

    These settings are related to the SRT streaming protocol; the port, passkey and encryption bit can be defined. SRT Caller mode and Listener mode are supported. When not using Encryption, please make sure to set the crypto lenght to 0 Listener mode settings Caller mode settings www.avonic.eu...
  • Page 28 The MAC Address can be found on the last visible line, this is also the serial number of the camera Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully and that a reboot is needed for the changes to take effect. 98:14:D2:... www.avonic.eu...

  • Page 29: System

    NDI®| HX Settings This part of the network concerns the NDI®| HX functionality of your Avonic NDI®| HX camera NDI enable checkmark box turns the NDI®| HX capability ON or OFF NDI Name is the name with which the camera presents itself to other NDI®| HX hardware or software on the local Network (LAN).
  • Page 30 By default this screen shows a readout of the current firmware versions. Update file provides a firmware upgrade functionality via this screen. When the camera is done uploading and processing the update it will reboot. Make sure to refresh your browser and log in again after the reboot. www.avonic.eu...
  • Page 31 Serial Settings Choose the preferred protocol to use and the accompanying address to go with it. Or leave the system on ‘auto’ and have the camera detect which protocol is being used (addressing is still needed, even on auto). www.avonic.eu...
  • Page 32 The camera will produce slightly more noise when this setting is set to ‘high’. MJPEG Snapshot The Avonic CM7x-IP cameras are equipped with a MJPEG snapshot feature for example to implement into third party software. To access the MJPEG snapshot feature use the following format: http://IP/img/capjpg/snapshot.jpg...

  • Page 33: Maintenance

    Restore to Factory Default Power Issues • No self-test (applies only to PTZ cameras) and no power LED - Check the net power - Check the power supply - Check the physical power button on the back of the camera www.avonic.eu...

  • Page 34: Image

    Reset the factory default ip settings by pressing [*] [#] [Manual] and Reboot • Firmware update failed Check firmware file integrity, download it again. Make sure you are trying to flash the UVC file for the correct color camera (ARM is generic, UVC is color dependant) www.avonic.eu...

  • Page 35: Visca Settings And Command List

    VISCA over IP The Avonic IP camera is implemented with a TCP server. The TCP port number is 1259 by default and can be al- tered in the WebGUI. Once the connection between client and server is set up, the client will be able to send PTZ commands to the server.
  • Page 36 90 6y 41 FF Returned when a com- table (y: Execution com- mand cannot be exe- mand Socket No. cuted due to current Inquiry command: 0) conditions. For exam- ple, when commands controlling the focus manually are received during auto focus. www.avonic.eu...
  • Page 37 One Push WB Trigger CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q pq: R Gain www.avonic.eu...
  • Page 38 8x 01 04 0E 02 FF Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q pq: ExpComp Position CAM_BackLight 8x 01 04 33 02 FF Back Light Compen- sation On/Off 8x 01 04 33 03 FF www.avonic.eu...
  • Page 39 SYS_Menu 8x 01 06 06 03 FF Turns on/off the OSD menu 8x 01 06 06 02 FF CAM_ColorGain Direct 8x 01 04 49 00 00 00 0P FF p: Color Gain setting 0h (60%) to Eh (200%) www.avonic.eu...
  • Page 40 8x 01 02 70 02 FF Autoflip ON Autoflip OFF 8x 01 02 70 03 FF Autoflip OFF CAM_SettingSave Save 8x 01 04 A5 10 FF Save Current Setting CAM_Iridix Direct 8x 01 04 A7 00 00 0p 0q pq: Iridix Position www.avonic.eu...
  • Page 41 -10 ~ +10 (00~14 HEX) active) balance active Red_Tuning (auto more or less red while 81 0A 01 12 pp FF pp = setting whitebalance maintaining auto white -10 ~ +10 (00~14 HEX) active) balance active www.avonic.eu...
  • Page 42 Video Format 00: 1080p60 01: 1080p50 02: 1080i60 03: 1080i50 04: 720p60 05: 720p50 VideoSystem_Set 8x 01 06 35 00 pp FF 06: 1080p30 07: 1080p25 08: 720p30 09: 720p25 0A: 1080p59.94 0B: 1080i59.94 0C: 720p59.94 0D: 1080p29.97 0E: 72029.97 www.avonic.eu...
  • Page 43 0 to 5 CAM_Noise3DLevel 8x 09 04 54 FF 90 50 0p FF Noise Reduction (3D) p: 0 to 8 CAM_Flicker- 8x 09 04 55 FF 90 50 0p FF p: Flicker Settings(0: ModeInq OFF, 1: 50Hz, 2: 60Hz) www.avonic.eu...
  • Page 44 0z 0z 0z 0z FF zzzz: Tilt Position CAM_GainLimitInq 8x 09 04 2C FF 90 50 0q FF p: Gain Limit CAM_DHotPixelInq 8x 09 04 56 FF 90 50 0q FF p: Dynamic Hot Pixel Setting (0: 0ff, level 1 to 6) www.avonic.eu...
  • Page 45 90 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 degrees) CAM_AWBSensiti- 81 09 04 A9 FF 90 50 00 FF High vityInq 90 50 01 FF Normal 90 50 02 FF www.avonic.eu...
  • Page 46 90 50 00 00 0p 0q FF pq: Shutter Position sInq CAM_IrisPosInq 8x 09 04 4B FF 90 50 00 00 0p 0q FF pq: Iris Position CAM_BrightPosInq 8x 09 04 4D FF 90 50 00 00 0p 0q FF pq: Bright Position www.avonic.eu...

  • Page 47: Appendix B Dimensions

    APPENDIX B DIMENSIONS www.avonic.eu...

  • Page 48: Cmos Image Sensors Characteristics

    In this example, the dots represent the sampled data and the curve represents the original signal. Because there are too few sampled data points, the resulting pattern produced by the sampled data is a poor representation of the original. www.avonic.eu...
  • Page 49 Depending on lighting types, such occurrences may not be improved with the antiflicker setting. It is recommended to set the shutter speed to 1/100 sec. in the areas of 50 Hz power supply frequency and to 1/60 in the areas of 60 Hz. www.avonic.eu...
