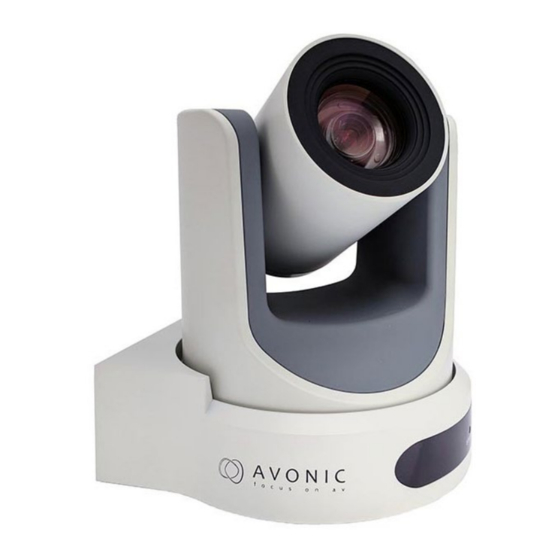

PTZ Camera 20x Zoom White
CM60
www.avonic.eu
User Manual | Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic CM60

Summary of Contents for Avonic CM60

  • Page 1 PTZ Camera 20x Zoom White CM60 www.avonic.eu User Manual | Version 1.0...

  • Page 2: Table Of Contents

    IR Remote Controller ........................10 Remote Control Shortcuts ..................... 12 Remote Control IR channel Settings ................... 13 Installation ................14 Connection Diagram ......................... 14 System Select Switch ........................14 Power adapter........................... 15 RS232 Interface ..........................16 RS232 network connection diagram ....................16 www.avonic.eu...
  • Page 3 9. RESTORE DEFAULT ....................... 30 Serial Communication Control ......................30 COM port settings ......................... 30 Command List ........................... 31 Maintenance ................ 32 Camera Maintenance ........................32 Unqualified Application ........................32 Troubleshooting ..............32 Image ..............................32 Control ............................... 33 www.avonic.eu...
  • Page 4 VISCA Camera Control Command List ..................38 VISCA Parameter Values ........................ 42 VISCA Query Command List ......................46 Pelco-D Protocol Command List ....................54 Pelco-P Protocol Command List ..................... 56 Appendix B Quick Start ............. 57 Appendix C Dimensions ............ 59 www.avonic.eu...

  • Page 5: Introduction

    Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, • do not use strong or abrasive detergent to clean that will damage the device. If you wish to dispose this product, please contact Avonic to obtain info about the take- • back procedure.

  • Page 6: Package Contents

    Power Supply 12V/A CM-PSU 1 pc Remote Control CM-RC 1 pc RS232 9-pin female to 8-pin male CM-RS232 Accessories Avonic Wall mount Avonic Ceiling mount SKU White : CM-WMW SKU White : CM-CMW SKU Black : CM-WMB SKU Black : CM-CMB www.avonic.eu...

  • Page 7: Product Overview

    The cameras are equipped with a Panasonic CMOS sensor combined with a glass high-quality glass lens with 12x /20x /30x optical zoom. Control these cameras over RS232/485 with the Avonic CM-CON100 PTZ controller or any third party controller that supports VISCA, Pelco-P/D protocols.

  • Page 8: Main Unit

    Freeze Image while switching presets. • Main Unit Input and Output Description 1. Audio LINE IN Interface (not in use) 2. CVBS Interface 3. System select switch 4. RS485 interface 5. RS232 IN interface 6. RS232 OUT interface 7. Network Interface (update only) www.avonic.eu...
  • Page 9 8. HDMI Interface 9. 3G-SDI Interface (SMPTE 424M) 10. USB2.0 (update only) 11. DC 12V jack 12. Power switch www.avonic.eu...

  • Page 10: Ir Remote Controller

    Setting a corresponding numeric key preset position 5. Pan-Tilt control Buttons Pressing the Pan-Tilt back to the middle position 6. Back buttons Press the OSD menu return to the superior. 7. Zoom Buttons Slow Zoom: Zoom In [+] or Zoom Out [-] slowly www.avonic.eu...
  • Page 11 [*]+[＃]+[F1]: The camera is set to IR channel 1. [*]+[＃]+[F2]: The camera is set to IR channel 2. [*]+[＃]+[F3]: The camera is set to IR channel 3. [*]+[＃]+[F4]: The camera is set to IR channel 4. 13. Clear Preset Buttons www.avonic.eu...

  • Page 12: Remote Control Shortcuts

    ON / OFF button. To cancel this function, press the backlight ON / OFF button. 17. Pan/Tilt reset Preset Pan/Tilt self-test. Remote Control Shortcuts [*]+[＃]+[1]: OSD menu default in English [*]+[＃]+[4]: Show IP address and network settings [*]+[＃]+[6]: recover the defaults [*]+[＃]+[8]: Show the camera version [*]+[＃]+[9]: set up inversion www.avonic.eu...

  • Page 13: Remote Control Ir Channel Settings

    Remote Control IR channel Settings [*]+[＃]+[F1]: The camera is set to IR channel 1. [*]+[＃]+[F2]: The camera is set to IR channel 2. [*]+[＃]+[F3]: The camera is set to IR channel 3. [*]+[＃]+[F4]: The camera is set to IR channel 4. www.avonic.eu...

  • Page 14: Installation

    Installation Connection Diagram System Select Switch Setting of the system select switch. The option of video format: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080i60 www.avonic.eu...

  • Page 15: Power Adapter

    After changing the switch, you need to restart the camera to take effect. b. 720 p30 and 720 p25 only under the HDMI output. Power adapter This equipment is equipped with a 12V/2A DC power supply. Insert the power supply according to the requirements, turn on the power switch. www.avonic.eu...

  • Page 16: Rs232 Interface

    RS232-IN of the first camera in the serial circuit. The RS232-OUT of the first camera is connected to the RS232-IN of the second camera and so on. In the OSD menu under Communication Setup, the Protocol is Auto / VISCA, and Net mode is set to Serial. www.avonic.eu...

  • Page 17: Rs485 Network Connection Diagram

    The maximum length of the bus is 1200m. The maximum distance from the bus to the camera or controller is 5 meters. The cameras are connected with the 2-pin Phoenix connector. In the OSD menu under Communication Setup, Net mode is set to Paral. www.avonic.eu...
  • Page 18 www.avonic.eu...

  • Page 19: Operation

    Operation OSD Menu The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller. In the following pages, the navigating is described for using the IR Remote Control. Menu Tree www.avonic.eu...
  • Page 20 www.avonic.eu...

  • Page 21: Menu

    Press [MENU] button to display the main menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu. MENU Exposure Color Image P/T/Z Noise Reduction Setup Communication Setup Restore Default [Home] Enter [Menu] Exit www.avonic.eu...

  • Page 22: Exposure

    Set the backlight compensation, Change Value Optional items: On, Off (Effective only in Auto mode ) [Menu] Back Gain Limit Maximum gain limit. Optional items: 0 ~ 15 (Effective only in Auto, AAE ,Bright mode) Meter Optional Items: Average, Center, Smart, Top www.avonic.eu...
  • Page 23 F8.0, F9.6, F11.0, Close（Effective only in Manual, AAE mode） Shutter Shutter value. Optional items: 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (Effective only in Manual, SAE mode) Gain Optional items: 0 ~ 7 (Effective only in Manual) www.avonic.eu...

  • Page 24: Color

    Optional items: 0~255（Effective only in Manual mode） RG Tuning Red gain fine-tuning Optional items: -10 ~ +10（Effective only in Auto, One Push, VAR Mode） BG Tuning Blue gain fine-tuning Optional items: -10 ~ +10（Effective only in Auto, One Push, VAR Mode） www.avonic.eu...

  • Page 25: Image

    Sharpness Flip-H Flip-V B&W-Mode Gamma Default Luminance Brightness adjustment. Style Norm Optional items: 0 ~ 14 Contrast Contrast adjustment Optional items: 0 ~ 14 Select Item Sharpness Sharpness adjustment. Change Value Optional items: Auto, 0 ~ 15 [Menu] Back www.avonic.eu...

  • Page 26: P/T/Z

    Optional items: On, Off. 1080p60 / 1080p50 not support the lens distortion. 5. P/T/Z P/T/Z SpeedByZoom AF-Zone Center AF-Sense High L/R Set Display info Image Freeze Digital Zoom SpeedByZoom The depth of field scale switch, Call Preset Speed Optional items: On, Off Fast Zoom www.avonic.eu Select Item...

  • Page 27: Noise Reduction

    Optional items: On, Off 6. NOISE REDUCTION NOISE REDUCTION NR2D-Level NR3D-Level D-HotPixel NR2D-Level 2D noise reduction. Optional items: Off, Auto, 1 ~ 5 Select Item NR3D-Level 3D noise reduction. Change Value Optional items: Off, 1 ~ 8 [Menu] Back www.avonic.eu...

  • Page 28: Setup

    DVI Mode Lens Type1 Auto scan shoot Off Language menu language, Select Item Optional items: EN, Chinese, Russian Change Value DVI Mode Optional items: DVI, HDMI [Menu] Back Lens Optional Items: Type1, Type2 Auto Scan Shoot Optional Items: On, Off www.avonic.eu...

  • Page 29: Communication Setup

    Serial, for RS232 daisy chaining wiring (VISCA only) Paral, for RS485 parallel wiring P_D_Address PELCO-D protocol Optional items: 0 ~ 254 P_P_Address PELCO-P protocol Optional items: 0 ~ 31 Baudrate Serial port baud rate. Optional items: 2400, 4800, 9600, 38400 www.avonic.eu...

  • Page 30: Restore Default

    RS232 Communication Control: The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600/38400 bit/s. • Start bit: 1 bit. • Data bit: 8 bits. • Stop bit: 1bit. • Parity bit: none. • www.avonic.eu...

  • Page 31: Command List

    (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) Then the users can control the camera with commands in the command list. Command List See Appendix A www.avonic.eu...

  • Page 32: Maintenance

    No operating in unstable lighting conditions, otherwise image will be flickering. ⚫ No operating close to powerful electromagnetic radiation, such as TV or radio ⚫ transmitters, etc. Troubleshooting Image No image ⚫ 1. Check whether the power cord is connected, voltage is OK, POWER lamp is light. www.avonic.eu...

  • Page 33: Control

    Serial communication cannot control the camera ⚫ 1. Check the camera working mode. 2. Check control cable is connected correctly. Contact For any questions or suggestions, contact the reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. www.avonic.eu...
  • Page 34 For the recent manual or datasheet, look at the Avonic website. www.avonic.eu www.avonic.eu...

  • Page 35: Visca Camera Return Command List

    8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF p = 0(low) - 7(high) www.avonic.eu...
  • Page 36 Command Buffer z0 60 03 FF Indicates that two sockets Full are already being used(executing two commands) and the command could not be accepted when received. www.avonic.eu...
  • Page 37 Command Not z0 6y 41 FF Returned when a command Executable (y: Execution command cannot be executed due to Socket current conditions. For No. Inquiry command: example, when commands controlling the focus manually are received during auto focus. www.avonic.eu...

  • Page 38: Visca Camera Control Command List

    0q FF CAM_Bgain Reset 8x 01 04 04 00 FF Manual Control of B Gain 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p pq: B Gain www.avonic.eu...
  • Page 39 Manual 8x 01 04 50 03 FF CAM_NR(2D)Level 8x 01 04 53 0p FF p: NR Setting (0: Off, level 1 to 5) CAM_NR(3D)Level 8x 01 04 54 0p FF p: NR Setting (0: Off, level 1 to 8) www.avonic.eu...
  • Page 40 8x 01 06 01 pp qq 01 01 FF Upright 8x 01 06 01 pp qq 02 01 FF DownLeft 8x 01 06 01 pp qq 01 02 FF DownRight 8x 01 06 01 pp qq 02 02 FF www.avonic.eu...
  • Page 41 AF Zone weight select Center 8x 01 04 AA 01 FF Bottom 8x 01 04 AA 02 FF CAM_ColorHue Direct 8x 01 04 4F 00 00 00 p: Color Hue setting 0h 0p FF (− 14 dgrees) to Eh www.avonic.eu...

  • Page 42: Visca Parameter Values

    Pan Angle 0r 0r 0r 0r -170 F670 -135 F868 FAF0 FD78 0000 0288 0510 0798 0990 VISCA tilt absolute position values Tilt Angle 0s 0s 0s 0s FE50 0000 01B0 0360 VISCA pan speed values pp Pan speed (degrees/second) www.avonic.eu...
  • Page 43 18 38 19 45 20 58 21 75 22 88 23 105 24 120 VISCA tilt speed values qq Tilt Speed (degrees/second) 10 15 11 18 12 23 13 30 14 39 15 48 16 59 17 69 18 80 www.avonic.eu...
  • Page 44 1/4000 1/3000 1/2000 1/1500 1/1000 1/725 1/500 1/350 1/250 1/180 1/125 1/100 1/90 1/60 1/30 1/15 VISCA zoom values Zoom level Value x1(wide) 0000 x1.2 08D0 x1.5 1194 1A58 2610 31D4 x5.8 34BC x6.9 37A4 x8.2 3A98 x9.9 3D8C www.avonic.eu...
  • Page 45 4000 VISCA iris values Value Iris close f9.6 f6.8 f5.6 f4.8 f4.0 f3.4 f2.8 f2.4 f2.0 f1.8 www.avonic.eu...

  • Page 46: Visca Query Command List

    = Camera Address + 8 All parameter values are in HEX Command Command Package Return Package Note CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) y0 50 04 FF Internal power circuit www.avonic.eu...
  • Page 47 50 00 00 0p 0q FF pq: Iris Position CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position CAM_ExpCompMod 8x 09 04 3E FF y0 50 02 FF eInq y0 50 03 FF www.avonic.eu...
  • Page 48 8x 09 04 63 FF y0 50 02 FF odeInq y0 50 04 FF B&W CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF p: Memory number last operated. SYS_MenuModeInq 8x 09 06 06 FF y0 50 02 FF www.avonic.eu...
  • Page 49 Hardware Version rr rr: ARM Version ss ss: FPGA Version tt: Camera model 01: C Type 02: M Type 03: S Type VideoSystemInq 8x 09 06 23 FF y0 50 00 FF 1920x1080i60 y0 50 01 FF 1920x1080p30 www.avonic.eu...
  • Page 50 50 01 FF C Type y0 50 02 FF M Type y0 50 03 FF S Type CAM_DateInq 8x 09 00 04 FF y0 50 0p qq yy yy mm Version date dd 0D FF p: Big Version Number www.avonic.eu...
  • Page 51 50 01 FF Flip-H y0 50 02 FF Flip-V y0 50 03 FF Flip-HV CAM_IridixInq 8x 09 04 A7 FF y0 50 00 00 0p 0p FF pp: Iridix Position CAM_AFZone 8x 09 04 AA FF y0 50 00 FF www.avonic.eu...
  • Page 52 50 0p 0p 0q 0q 0r pp: R_Gain 0s tt 0u vv ww 00 xx qq: B_Gain 0z FF r: WB Mode s: Aperture tt: AE Mode u: BackLight vv: Shutter Position ww: Iris Position xx Bright Position www.avonic.eu...
  • Page 53 50 00 00 00 00 00 p: AF sensitivity ockInq 00 00 0p 0q rr 0s 0t q: Picture flip 1:On, 0u FF 0:Off rr.6~3: Color Gain (0(60%) to E(200%)) s: Flip 0: Off, 1:Flip-H, 2:Flip-V, 3:Flip-HV t: 2~0: NR2D level u: Gain limit www.avonic.eu...

  • Page 54: Pelco-D Protocol Command List

    Iris Open Address Iris Close Address Set Preset Address Preset ID Clear Preset Address Preset ID Call Preset Address Preset ID Auto Focus Address Manual Focus Address Auto Iris Address Manual Iris Address Auto AGC Address Manual AGC Address www.avonic.eu...
  • Page 55 Query Tilt Position Address Value High Value Low Response Byte Byte Query Zoom Position Address Query Zoom Position Address Value High Value Low Response Byte Byte The camera that receives a PELCO-D command, does not return any response value. www.avonic.eu...

  • Page 56: Pelco-P Protocol Command List

    Zoom Out Address Focus Far Address Focus Near Address Set Preset Address Preset ID Clear Preset Address Preset ID Call Preset Address Preset ID Auto Focus Address Manual Focus Address Query Pan Position Address Query Pan Position Address Value Value www.avonic.eu...

  • Page 57: Appendix B Quick Start

    Address Query Tilt Position Address Value Value Response High Byte Low Byte Query Zoom Address Position Query Zoom Address Value Value Position Response High Byte Low Byte Appendix B Quick Start Step1. Please check connections are correct before starting www.avonic.eu...
  • Page 58 Step4. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) www.avonic.eu...

  • Page 59: Appendix C Dimensions

    Appendix C Dimensions All sizes are in mm Weight: 2.4 kg www.avonic.eu...
