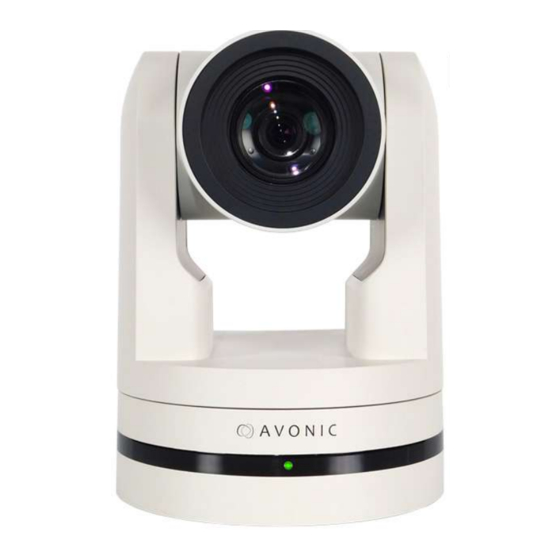

Avonic CM70-NDI User Manual

Ptz camera 20x zoom
Hide thumbs Also See for CM70-NDI:

Advertisement

Quick Links

Download this manual
USER MANUAL
Avonic PTZ Camera 20x zoom
CM70-NDI
www.avonic.com
•
© July 2023
•
Version 1.5.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM70-NDI and is the answer not in the manual?

Questions and answers

Related Manuals for Avonic CM70-NDI

Summary of Contents for Avonic CM70-NDI

  • Page 1 USER MANUAL Avonic PTZ Camera 20x zoom CM70-NDI www.avonic.com • © July 2023 • Version 1.5.1...
  • Page 2 “look and feel” and arrangement of such Content, contained in this Manual is owned, controlled or licensed by or to Avonic, and is protected by trade dress, copyright, patent and trademark laws, and various other intellectual property rights and unfair competition laws.
  • Page 3 Certificate Number UL-US-2225849-1 Report Reference E528476-20220613 Date 30-Jun-2022 Issued to: Avonic B.V. Exportweg 11a Delfgauw 2645 ED Netherlands This is to certify that AZOT - Audio/Video, Information and Communication representative samples of Technology Equipment See Addendum Page for Product Designation(s).
  • Page 4 Certificate Number UL-CA-2225356-1 Report Reference E528476-20220613 Date 30-Jun-2022 Issued to: Avonic B.V. Exportweg 11a Delfgauw 2645 ED Netherlands This is to certify that AZOT7 - Audio/Video, Information and Communication representative samples of Technology Equipment Certified for Canada See Addendum Page for Product Designation(s).
  • Page 5 Look also for the FCC logo on the Product. Declaration on Conformity The submitted sample of the following equipment has been tested according to the following FCC rules. Applicant name & address : Avonic Distributieweg 60, 2645 EJ Delfgauw, The Netherlands Manufacturer name & address : Avonic...
  • Page 6 IMPORTANT INFORMATION Liability Avonic will NOT be held responsible for any damage or injury caused by unqualified persons carrying out these tasks, or by not following the instructions in this Manual. Intended Use and Non-Intended Use Installation The following applies to the installation of the camera: •...
  • Page 7 Be sure that you have COMPLETELY READ and UNDERSTOOD ALL information in this Manual before unpacking, installing and using this Product. Keep the Manual safe for future reference or download it from www.avonic.com. Symbols Used in This Manual Table 1: English...
  • Page 8 Acronyms The following acronyms are used in this Manual: Aperture Auto Exposure Aperture White Balance Black Light Control Customizable Color Matrix CMOS Complementary Metal Oxide Semiconductor Dynamic Range Compression Exposure Value High Definition HDMI High-Definition Multimedia Interface Internet Protocol MJPEG Motion-JPEG Network Device Interface Noise Reduction...
  • Page 9 Contents Disclaimer, Contact, IP Rating and Markings..................ii Certificates............................iii Certificate of Compliance US......................iii Certificate of Compliance Canada....................iv FCC Declaration of Conformity......................v IMPORTANT INFORMATION........................vi Liability..............................vi Intended Use and Non-Intended Use....................vi Installation............................. vi Operation..............................vi Important Precautions......................... vi Symbols Used in This Manual......................vii Acronyms.............................viii INTRODUCTION............................
  • Page 10 Serial Connecting via RS-232 or RS-485.................... 24 Connecting via NDI®| HX/ LAN....................... 26 OPERATION............................27 WebGUI..............................27 Optional Features..........................27 Login..............................27 First time usage........................... 28 Preview (LOCAL)..........................31 AUDIO..............................32 VIDEO..............................33 Using the Remote Control......................... 54 a. Power.............................. 54 b. Set..............................54 c.
  • Page 11 Dithering or flickering image......................67 Color issues............................67 Autofocus Issues..........................67 Control..............................68 No self-test (PTZ cameras only) and no power LED................ 68 Remote Controller does not work.....................68 Camera does not respond to commands send over IP..............68 WebGUI..............................68 Cannot enter WebGUI........................68 Firmware update failed........................
  • Page 12 APPENDIX E - DATASHEET (SPECIFICATIONS)...................100 SPECIFICATIONS CM70-NDI......................100 APPENDIX F - LIST OF SUPPORT ARTICLES..................101 Support articles NDI.......................... 102 Index........................... 103...
  • Page 13 This Manual describes the safety precautions and the instructions for safe unpackaging, installation, operation, maintenance and disposal of the Avonic CM70-NDI camera. In this Manual, the Avonic CM70-NDI camera is referred to as the 'Product'. Target Audience This Manual is developed for installation technicians who install the Product at client sites, and for IT professionals who are responsible for operating the Product.
  • Page 14 Be sure that you have COMPLETELY READ and UNDERSTOOD ALL information in this Manual before unpacking, installing and using this Product. Keep the Manual safe for future reference or download it from www.avonic.com. Handling To prevent the risk of injury, take the following precautions when handling this Product: •...
  • Page 15 Don’t open this Product and don’t attempt to repair it yourself. Disassembling the Product may damage it or may cause injury to you. • If this Product is damaged, malfunctioning, or if it comes into contact with liquid, contact Avonic or an Avonic Authorized Service Provider. •...
  • Page 16 Assurez-vous d'avoir ENTIÈREMENT LU et COMPRIS TOUTES les informations contenues dans ce manuel avant de déballer, d'installer et d'utiliser ce produit. Conservez le manuel dans un endroit sûr pour référence ultérieure ou téléchargez-le sur www.avonic.com. Traitement Pour éviter tout risque de blessure, prenez les précautions suivantes lors de la traitement de ce produit: •...
  • Page 17 • N'ouvrez pas ce produit et n'essayez pas de le réparer vous-même. Le démontage du produit peut l'endommager ou vous blesser. • Si ce produit est endommagé, fonctionne mal ou s'il entre en contact avec un liquide, contactez Avonic ou un fournisseur de services agréé Avonic.
  • Page 18 Conditions atmosphériques Pour prévenir le risque de blessures ou de dommages au produit ou à d'autres biens causés par une atmosphère potentiellement explosive: • N'utilisez PAS ce produit dans une zone présentant une atmosphère potentiellement explosive, telle que des zones où l'air contient des niveaux élevés de produits chimiques inflammables, de vapeurs ou de particules (telles que des céréales, de la poussière ou des poudres métalliques), ce qui peut être dangereux.
  • Page 19 The CM70-NDI is equipped with NewTek’s high-efficient IP technology called NDI®| HX. This all-in-one PTZ camera from Avonic allows the move to an all IP infrastructure even for mobile applications. With IP deployment on existing networks all cameras detected within your network become directly available for use without complex configuration.
  • Page 20 Package Contents The following tables contains an overview of the package contents of the Product. Quantity Description Avonic SKU 1 pc PTZ Camera AV-CM70-NDI-W/B 1 pc Remote Control...
  • Page 21 • If the contents of the box matches exactly the items as described in Package Contents. • If this is NOT the case, contact Avonic and stop here. See also the picture below: Figure 6: Camera in plastic bag and protective foam 2. Break the seal of the sealed camera bag.
  • Page 22 Mounting on Wall or Ceiling The following accessories (AV-MT200 and AV-MT250) are separately available if the client wants to mount the camera to the wall or ceiling. Contact your Avonic reseller or local distributor for purchasing details. Wall mount (AV-MT200)
  • Page 23 Connecting the Components to the Camera Execute the following steps to connect the components to the camera: 1. Connect all provided components (see Package Contents) to the ports at the rear of the camera. The figure below shows the applicable ports. 1.
  • Page 24 Connecting a Controller to a Camera You can connect one or more cameras to a VISCA (serial) controller. https://avonic.com/en/product-categorie/controllers/ for an overview of the available controllers. A controller gives you direct control over the most important camera settings (e.g., Pan, Tilt, Zoom, Focus, White Balance).
  • Page 25 RS-232 Interface Connect the controller to the back of the camera via the RS-232 cables as shown below: Figure 8: RS-232 Interface (Mini Figure 9: RS-232 Cable and Interface DIN-8) Connection (Mini DIN-8 and Windows DB-9) RS-232 Network Connection Execute the following step to connect the controller to the back of the camera(s) via RS-232: 1.
  • Page 26 Connecting via NDI®| HX/ LAN The NDI®| HX connection allows you to connect and control your Avonic NDI®| HX camera through compatible hardware or software on your local network (LAN). Once the camera is installed on the local network (LAN) it is possible to use the NDI®| HX connection.
  • Page 27 OPERATION This chapter describes all the camera features to help you to understand how the camera can be used. This is subdivided into the following sections: WebGUI Using the Remote Control Other Key Combinations OSD Menu Using the System Select If you want to read more about the functionality of the camera than is documented in this chapter, it is recommend to read the support articles...
  • Page 28 First time usage If you are using the camera for the first time, it is helpful for you first to setup the basic camera settings before explaining the functionalities of the camera in detail. According to the light conditions in your room or on stage, you can follow instructions at: Basic Camera Setup Basic Camera Setup using (semi)manual settings...
  • Page 29 3. Color Navigate to the Color tab and set the WB Mode to Auto. 4. Image Navigate to Image tab and set the sharpness. The higher the number, the more sharp the picture will become. 5. Noise Reduction Navigate to Noise Reduction tab and set the NR-2D...
  • Page 30 1. Focus • Navigate to Video > Camera Settings > Focus • If you have difficulties to focus, choose Focus Mode > Manual. Otherwise set the Focus Mode to Auto and choose at AF-Zone > Moving Objects if the filmed person or object is moving a lot, or Meeting for general meeting purposes.
  • Page 31 Preview (LOCAL) In this tab, you can see a preview of the camera IP video output. Figure 15: WebGUI > Preview Next to the preview you see: 1. PTZ keys to move the lens of the camera and Focus keys (works only when the focus is set to manual). You can adjust the PTZ speed (the speed when the camera moves) by using the bar below the PTZ keys.
  • Page 32 AUDIO Connect first an audio cable with XLR connectors to the 5 pins Phoenix connector and connect the cable to the camera. See Balanced Audio Connection on page 23 Figure 16: WebGUI > Audio Make your settings as follows: 1. Enable (checked) or disable (blank) embedding of audio input (camera rear). 2.
  • Page 33 VIDEO You can use the VIDEO tabs to define your settings for the video output, including the main settings of the camera's OSD. VIDEO - Video Encoder Figure 17: WebGUI > VIDEO > Video Encoder The Video Encoder settings are listed below. Video Encoder Option Main Stream Sub Stream...
  • Page 34 VIDEO - Streaming Video Figure 18: WebGUI > VIDEO > Streaming Video The recommended Streaming Video settings are listed below. See for more Streaming on the website. Stream Option Main Stream Sub Stream Enable Mark checkbox to enable Mark checkbox to enable Protocol Type RTMP, SRT RTMP, SRT...
  • Page 35 Figure 19: WebGUI > VIDEO > Multicast Streaming The recommended Multicast Streaming settings are listed below. Stream Option Main Stream Sub Stream Enable Mark checkbox to enable/ disable Mark checkbox to enable/ disable Protocol Type RTP Multicast/ TS Multicast/ TS Unicast RTP/ TS Multicast/ TS Unicast Address (multicast) 224.0.0.0~ 239.255.255.255...
  • Page 36 Focus Figure 21: WebGUI > VIDEO > Camera Settings > Focus The Focus settings are explained below. Focus Mode Auto The camera automatically adjusts the focus position based on the contents of the captured object. Manual The user is able to set a fixed focus position manually. This can be useful when the contents of the filmed object are not clear towards the background and the autofocus has difficulty finding the correct focusing.
  • Page 37 Exposure If you click in the field after the option ‘mode’, you will see that you have the following Exposure options: Auto, Manual, SAE, AAE and Bright. These options are outlined below. Auto Exposure Mode In Automatic exposure mode, the camera determines the iris and shutter settings. See the settings below: EV (Exposure Value): ON/OFF and Level If the light conditions require this, you can create a quick adjustment to your current exposure settings without actually changing the fundamental values like iris and shutter.
  • Page 38 Manual Exposure Mode Figure 24: WebGUI > VIDEO > Camera Settings > Manual Exposure Mode In Manual exposure mode, you can manually set the shutter, Iris and DRC options. Shutter The shutter setting determines the amount of time per second that the sensor is exposed. The range of the shutter speed setting is 1/25th of a second (40 milliseconds) to 1/10000th of a second (0.1 milliseconds).
  • Page 39 SAE Mode (Shutter Auto Exposure) The shutter speed is user-adjustable in this mode. The camera automatically determines the best Iris F-stop value for an optimal exposure setting. This setting will come with a cost. The higher the shutter speed, the more sharp the picture become, but also the more dark the picture will be.
  • Page 40 Bright Mode This mode is to try and create a decent image when the light conditions are exceptionally poor. Figure 28: WebGUI > VIDEO > Camera Settings > Bright Exposure Mode In this mode, you should keep the Bright level, Gain limit and DRC as low as possibly acceptable to avoid getting too much noise in the picture.
  • Page 41 Image Figure 30: WebGUI > VIDEO > Camera Settings > Image These are settings that have an effect on the image post-processing. Basically, these settings are all artificial: they don’t affect the optical parts of the camera itself. The settings are listed below. Bright The amount of detail that is visible in darker areas of the image.
  • Page 42 CCM. With this feature you can match the colors from the Avonic CM70 series cameras with cameras from other manufacturers. The colormatrix is a 3x3 "table" that affects red, green and blue in the filmed picture and their relation to it.
  • Page 43 1. Channels: Horizontal RGB row. This corresponds with red, green and blue parts in the picture, but changes also secondary colors, because these colors are having some red, green and blue in them. 2. Signals: Vertical RGB column. This subtracts or adds red, green, blue from or to the filmed picture. Matching and finetuning colors Matching and finetuning colors is not so simple as it looks, because changing colors in a camera works different if you compare it with painting.
  • Page 44 Adding colors You can add colors by changing the balance between the red, green and blue signals. A color will be added if a number above zero is used in one cell and a number below zero is used in another cell of the same channel, or if the cells of different signals and channels are filled with a number.
  • Page 45 VIDEO - OSD Figure 33: WebGUI > VIDEO > OSD In this area, you can put a camera name and time as overlay on the IP stream (the overlay feature is exclusively available on the IP stream, not on other outputs). Only the output of the camera will be shown with the main stream set to H264.
  • Page 46 VIDEO - Output Format Figure 34: WebGUI > VIDEO > Output Format This setting is related to the output resolution and frame rate on the HDMI and SDI connectors. The WebGUI can be used to set the resolution of the main and sub IP streams. The resolution of the USB output is determined by the computer that is connected to it.
  • Page 47 Figure 36: WebGUI > VIDEO > Streaming Video (Caller Mode) NETWORK Use the tabs on the NETWORK screen to define the appropriate Port, Ethernet and DNS settings. Port Settings Figure 37: WebGUI > NETWORK > Port Settings You can define specific ports for the different streaming outputs and protocols the camera supports. Make sure these settings don’t interfere with other uses and services on the same network.
  • Page 48 NDI®| HX Settings This part concerns the NDI®| HX functionality of your Avonic NDI®| HX camera. With the NDI enabled and NDI control enabled, you can easily control every device with NDI®| HX functionality in your IP network. See also Studio Tools on the website .
  • Page 49 You can acquire a license through your local sales channel or directly at Avonic. Execute the following steps to enter your license key: 1. Enter your license key in the License field. 2. Click SAVE to apply your settings. A small confirmation dialogue appears in the bottom right corner.
  • Page 50 Either click SAVE to apply your manual settings, or SYNC to synchronize the time and date. User Figure 43: WebGUI > SYSTEM > User You can define different users with specific permission levels and different username / passwords combinations. There are 2 levels of users: administrators with access to all features, and user-1 and user-2 with access to the preview and PTZ controls.
  • Page 51 Default If necessary, you can perform a factory reset. This restores all default settings. See also How can I reset my CM40/ CM70 camera from the WebGUI? for more information. If you want only to reset the IP configuration (IP address, Gateway and DNS server) read How to reset the IP Configuration in a CM40/ CM70 camera.
  • Page 52 Import/Export Parameters Figure 48: WebGUI > SYSTEM > Import/Export The CM70 series cameras have the ability to import or export a configuration. Execute the following steps to import or export your configuration parameters: 1. Select the appropriate button to import or export your configuration parameters. 2.
  • Page 53 MJPEG Snapshot The Avonic CM70 series cameras are equipped with a MJPEG snapshot feature to, for example, implement into third party software. Every time the page is refreshed, the picture will be updated.
  • Page 54 Using the Remote Control The Product is provided with an IR Remote Control for full control of the camera and use of the OSD menu. Figure 50: Remote Control The various options (a. through n.) are outlined below. a. Power 1.
  • Page 55 c. Camera Select Up to 4 different cameras can be controlled with one IR remote Control. You can use the camera select buttons [1,2,3,4] to select the IR channel that is used by the remote control. The default camera IR channel is 1. 1.
  • Page 56 h. Set & Clear Preset A preset is a specific position of a camera that you can save in the camera. A preset is assigned to a number from 0-9. 1. To set a preset, first point the camera in a specific direction and a specific zoom position. 2.
  • Page 57 VISCA commands appendix A in this manual. Enable tally light To use the tally light functionality in the CM70-NDI camera, you need first to enable the tally light functionality. Follow the instructions below: 1. Navigate to Network > NDI in the WebGUI 2.
  • Page 58 The OSD Menu is visible on the HDMI and SDI outputs. The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller. See also How can I open the OSD menu of my camera on the website.
  • Page 59 1. MENU Figure 53: OSD - MENU 1. Press the MENU button to display the main menu on the screen. 2. Use the arrow buttons to move the cursor to the item to be set. Press the HOME button to enter the corresponding sub-menu.
  • Page 60 3.1 EXPOSURE Figure 56: OSD - EXPOSURE 3.2 COLOR Figure 57: OSD - COLOR 3.3 IMAGE The Flip function can be set, although the camera has an automatic flip function. Figure 58: OSD - IMAGE...
  • Page 61 3.4 FOCUS Figure 59: OSD - FOCUS 3.5 NOISE REDUCTION Figure 60: OSD - NOISE REDUCTION 3.6 STYLE Figure 61: OSD - STYLE 4. PTZ Figure 62: OSD - PTZ...
  • Page 62 5. VIDEO FORMAT Figure 63: OSD - VIDEO FORMAT 6. NETWORK SETTINGS Figure 64: OSD - NETWORK SETTINGS Read for more CM40 & CM70 series network setup guide on the website. 7. VERSION Figure 65: OSD - VERSION 8. RESTORE DEFAULT Figure 66: OSD - RESTORE DEFAULT...
  • Page 63 Using the System Select The rear of the Product is provided with a System Select that can be used to manually select a video format. This System Select is important for the video quality during video recording or streaming. See the table below for a description of the possible settings and the associated video output quality. 1080p60 720p30 1080p50...
  • Page 64 MAINTENANCE Camera Maintenance Take the following actions to maintain the camera: • Turn the power switch off and disconnect the AC powercord of the AC adaptor to the outlet, if you will not use the camera for a long time. •...
  • Page 65 Ensure also that the box is properly sealed. 2. Avonic's address and/or the address of the local distributor should be clearly visible on the package. 3. Keep the transportation vehicle dry and maintain the temperature and humidity when transporting the camera.
  • Page 66 See the symbol below that can be found on the product and package label: Avonic is NOT responsible for personal data left in the settings of the camera as far as this is possible (like camera names, IP Addresses, user names, passwords etc.) Delete personal data BEFORE you send the camera back to to your local distributor or Avonic! or your local distributor.
  • Page 67 TROUBLESHOOTING General 1. Turn the camera off and on again and check if the problem persists. 2. If it does, restore to factory default. Power Issues If the camera does NOT perform a self-test and / or if the power LED is OFF: 1.
  • Page 68 • Faces: partly hidden faces, sideways filmed faces, diagonal or up side down • When the camera itself moves, or when the iris is narrowed down When you experience one or more of the above mentioned problems check also our Appendix - CMOS characteristics Control...
  • Page 69 You can use Hercules SETUP Utility application and a serial connection to make this work. VISCA over IP Avonic IP cameras are implemented with a TCP and an UDP server. The TCP as well as the UDP port are by default set to port 1259.
  • Page 70 To control the camera, you need an TCP or UDP supported application, like Hercules SETUP utility or Packet Sender for example. Follow the instructions below: 1. Open the TCP/ UDP supported application. 2. Fill in the camera's IP Address, TCP/UDP port number and connect the application to your camera. Once the connection between client and server is set up, the client will be able to send PTZ commands to the server.
  • Page 71 VISCA over IP using the full Sony VISCA protocol All Avonic cameras are capable of being controlled using the UDP Sony version of VISCA consisting of long VISCA commands, including headers and message counters. The advantage of using this version of VISCA is the fact that the camera responds with the same header counter as was used in the command.
  • Page 72 = Camera Address + 8 • This is one list for all Avonic PTZ Cameras (CM40 series, CM70 and CM90 series). Some features are CM70 and/or CM90 series specific and will not work in the CM40 series cameras. Return/complete Command...
  • Page 73 Camera Control Commands All parameter values are in HEX x = Camera Address • y = Socket Number • z = Camera Address + 8 • Camera Control Commands Command Function Command Packet Comments Address Set Broadcast 88 30 01 FF Address setting CAM_Power 8x 01 04 00 02 FF...
  • Page 74 Camera Control Commands Command Function Command Packet Comments CAM_Bgain Reset 8x 01 04 04 00 FF Manual Control of BGain 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain CAM_Rgain Reset...
  • Page 75 Camera Control Commands Command Function Command Packet Comments CAM_NR(3D)Level 8x 01 04 54 0p FF p: NR Setting (0: Off, level 1 to 8) CAM_Flicker 8x 01 04 23 0p FF p: Flicker Settings (0: Off, 1: 50Hz, 2: 60Hz) CAM_DHotPixel 8x 01 04 56 0p FF p: Dynamic Hot Pixel Setting (0: 0ff,...
  • Page 76 Camera Control Commands Command Function Command Packet Comments Pan_tiltDrive 8x 01 06 01 VV WW 03 01 FF VV: Pan speed 0x01(low speed) to 0x18 (high speed) Down 8x 01 06 01 VV WW 03 02 FF WW: Tilt speed 0x01(low speed) to 0x14 (high speed) Left 8x 01 06 01 VV WW 01 03 FF...
  • Page 77 Camera Control Commands Command Function Command Packet Comments CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF p: Color Hue setting0h (− 14 degrees) to Eh (+14 degrees Pan-tilt_MaxSpeed High SpeedPan/Tilt ON 8x 0A 01 31 03 FF High Speed PTON High SpeedPan/Tilt OFF 8x 0A 01 31 02 FF...
  • Page 78 Inquiry Commands all parameter values are in hex x = camera address • y = socket number • z = camera address + 8 • Inquiry Commands Command Function Command Packet Comments CAM_ZoomPosInq 8x 09 04 47 FF 90 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_FocusAFModeInq 8x 09 04 38 FF...
  • Page 79 Inquiry Commands Command Function Command Packet Comments CAM_MemoryInq 8x 09 04 3F FF 90 50 0p FF p: Memory (Preset) number last operated. SYS_MenuModeInq 8x 09 06 06 FF 90 50 02 FF 90 50 03 FF CAM_LR_ReverseInq 8x 09 04 61 FF 90 50 02 FF 90 50 03 FF CAM_PictureFlipInq...
  • Page 80 Inquiry Commands Command Function Command Packet Comments CAM_FlipInq 8x 09 04 A4 FF 90 50 00 FF 90 50 01 FF Flip-H 90 50 02 FF Flip-V 90 50 03 FF Flip-HV CAM_IridixInq 8x 09 04 A7 FF 90 50 00 00 0p 0q FF pq: Iridix Position CAM_AFZone 8x 09 04 AA FF...
  • Page 81 APPENDIX B - DIMENSIONS...
  • Page 82 APPENDIX C - HTTP API With the HTTP API you can control the camera by using a web browser like Microsoft Edge or Google Chrome. It is possible to change multiple settings at once using this feature. This document is available as an Appendix in the CM70 series manual and as a separate document that can be downloaded on the product website.
  • Page 83 Curl It is also possible to change the camera settings at once by using the Command Prompt from Windows. Follow instructions below: 1. Click on Start in the left corner of your screen in Windows. 2. Type Notepad and open this application. 3.
  • Page 84 HTTP API code list PTZControl Code: http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"left_start","byValue":50}}} Command Setting Function Command nChanel byValue 0,100 used to control the speed of ptz szPtzCmd left start left_start left stop left_stop leftup start leftup_start leftup stop leftup_stop leftdown start leftdown_start leftdown stop leftdown_stop rightstart right_start rightstop...
  • Page 85 Speed by Zoom Set Speed By Zoom Command Code Command Setting szCmd http://192.168.5.126/ajaxcom?szCmd={"SetEnv": bSpeedByZoom 1: on 0: off {"ArmPtz":{"bSpeedByZoom":0}}} Image Freezing Set Image Freezing Command Code Command Setting szCmd http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"ArmPtz": bImageFreezing 1: on {"bImageFreezing":0}}} 0: off Low power mode Set Low Power Mode Command Code Command...
  • Page 86 Focus Mode Commands emAFMode 2: Auto 3: Manual 4 OnePush Zoom and focus Code http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl": {"nChanel":0,"szPtzCmd":"zoomdec_start","byValue":0}}} Command Setting Function Command nChanel byValue szPtzCmd Zoom add start zoomadd_start Zoom add stop zoomadd_stop Zoom decrease stop zoomdec_start Zoom decrease stop zoomdec_stop Focus add start focusadd_start Focus add stop focusadd_stop...
  • Page 87 Audio Configure Encode http://192.168.5.126/ajaxcom? nAEncType 6: Mp3AAC Type szCmd={"SetEnv":{"Audio": 7: G.711A {"nAEncType":7}}} Sample http://192.168.5.126/ajaxcom? nSampleRate (Only 16000 Rate szCmd={"SetEnv":{"Audio": supporting these sample 32000 {"nSampleRate":32000}}} rates and gy11a can only 44100 be 8000.) 48000 Sample Bits http://192.168.5.126/ajaxcom? nSampleBits szCmd={"SetEnv":{"Audio": {"nSampleBits":16}}} Bit Rate http://192.168.5.126/ajaxcom? nBitRate szCmd={"SetEnv":{"Audio":...
  • Page 88 Video Encode Settings Rate Control http://192.168.5.126/ajaxcom? emBitRateCtrl 0: CBR szCmd={"SetEnv":{"VideoEncode":[{"stMaster": 1: VBR {"emBitRateCtrl":1},"nChannel":0}]}} Video Encode Settings Function Code Command Setting Image Quality http://192.168.5.126/ajaxcom? byImageQuality 0: worst quality szCmd={"SetEnv":{"VideoEncode":[{"stMaster": 1: between {"byImageQuality":5},"nChannel":0}]}} 2: between 3: between 4: between 5: Best quality Bit Rate http://192.168.5.126/ajaxcom? dwMaxBitRate...
  • Page 89 Stream Publish User Name http://192.168.5.126/ajaxcom? szUserName user-defined szCmd={"SetEnv":{"StreamPublish":[{"stMaster": {"wHostPort":19355,"nProtolType":3,"szUserName":"123"},"nChannel":0}]}} Password http://192.168.5.126/ajaxcom? szPassword user-defined szCmd={"SetEnv":{"StreamPublish":[{"stMaster": {"wHostPort":19355,"nProtolType":3,"szPassword":"123"},"nChannel":0}]}} SrtKey (SRT Effectie) http://192.168.5.126/ajaxcom? szSrtKey user-defined szCmd={"SetEnv":{"StreamPublish":[{"stMaster": {"wHostPort":19355,"nProtolType":3,"szSrtKey":"0123456789"},"nChannel":0}]}} SrtKeyLen http://192.168.5.126/ajaxcom? wSrtKeyLen [0-32] (SRTEffectie) szCmd={"SetEnv":{"StreamPublish":[{"stMaster": {"wHostPort":19355,"nProtolType":3,"wSrtKeyLen":"0"},"nChannel":0}]}} (RTP) Multicast Streaming RTP Multicast Get rtp multicast parameters Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"StreamRTPMulticast": {"nChannel":-1}}} Set rtp multicast parameters...
  • Page 90 Video Parameters AF-Zone http://192.168.5.126/ emAFZone Front Focus ajaxcom?szCmd={"SetEnv": Back Focus {"VideoParam":[{"stAF": Meeting {"emAFZone":1},"nChannel":0}]}} Moving Objects Center Focus AF-Sensitivity http://192.168.5.126/ nSensitivity High ajaxcom?szCmd={"SetEnv": Middle {"VideoParam":[{"stAF": {"nSensitivity":1},"nChannel":0}]}} Exposure Camera Settings Exposure Mode http://192.168.5.126/ajaxcom?szCmd={"SetEnv": emExpMode Auto {"VideoParam":[{"stExp":{"stExpMode": Manual {"emExpMode":0}}"nChannel":0}]}} Bright Exposure: Auto http://192.168.5.126/ajaxcom? expcomp_mode szCmd={"SetEnv":{"VideoParam":[{"stExp": {"expcomp_mode":2},"nChannel":0}]}}...
  • Page 91 Camera Settings shutter http://192.168.5.126/ajaxcom?szCmd={"SetEnv": nShutter [0, 16] {"VideoParam":[{"stExp":{"stShutter": {"nShutter":16}},"nChannel":0}]}} http://192.168.5.126/ajaxcom?szCmd={"SetEnv": [0, 8] {"VideoParam":[{"stExp":{"drc":7},"nChannel":0}]}} Camera Settings Exposure: AEE Flicker http://192.168.5.126/ajaxcom? Antiflicker szCmd={"SetEnv":{"VideoParam":[{"stExp": 50HZ {"antiflicker":0},"nChannel":0}]}} 60HZ G.Limit http://192.168.5.126/ajaxcom? gainLimit [0, 15] szCmd={"SetEnv":{"VideoParam":[{"stExp": {"gainLimit":5},"nChannel":0}]}} Iris http://192.168.5.126/ajaxcom? nIris [0, 12] szCmd={"SetEnv":{"VideoParam":[{"stExp": {"stIris":{"nIris":12}},"nChannel":0}]}} http://192.168.5.126/ajaxcom? [0, 8] szCmd={"SetEnv":{"VideoParam":[{"stExp": {"drc":6},"nChannel":0}]}} Exposure: Bright...
  • Page 92 Camera Settings http://192.168.5.126/ajaxcom?szCmd={"SetEnv": [0, 14] {"VideoParam":[{"stColor":{"hue":14},"nChannel":0}]}} http://192.168.5.126/ajaxcom?szCmd={"SetEnv": awbsens Sensitivity {"VideoParam":[{"stColor":{"awbsens":0},"nChannel":0}]}} Middle High Camera Settings Image Bright http://192.168.5.126/ajaxcom?szCmd={"SetEnv": luminance [0, 4] {"VideoParam":[{"stImg":{"luminance":0},"nChannel":0}]}} Contrast http://192.168.5.126/ajaxcom?szCmd={"SetEnv": contrast [0, 14] {"VideoParam":[{"stImg":{"contrast":0},"nChannel":0}]}} Sharpness http://192.168.5.126/ajaxcom?szCmd={"SetEnv": sharpness [0, 15] {"VideoParam":[{"stImg":{"sharpness":1},"nChannel":0}]}} Gamma http://192.168.5.126/ajaxcom?szCmd={"SetEnv": gamma [0, 4] 0: Default 3: 0.55 {"VideoParam":[{"stImg":{"gamma":0},"nChannel":0}]}} 1: 0.45...
  • Page 93 Video OSD Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"VideoOsd":{"nChannel":-1}}} Set set video parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTime": {"bEnable":1,"nIndex":0,"nXPos":0,"szText":"","nYPos":10000, "stFtColor": {"byAlpha":128,"byRed":255,"byGreen":255,"byBlue":255},"stBkColor": {"byAlpha":0,"byRed":0,"byGreen":0,"byBlue":0}},"stTitle": {"bEnable":0,"nIndex":0,"nXPos":0,"szText":"","nYPos":0,"stFtColor": {"byAlpha":128,"byRed":255,"byGreen":255,"byBlue":255},"stBkColor": {"byAlpha":0,"byRed":0,"byGreen":0,"byBlue":0}},"nChannel":0}]}} NOTE: All params can be saved by this command and also you can set one param alone. Function Code Command Setting Show Time http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd": bEnable 0: Not show...
  • Page 94 OSD Font Size nFontSize [8,200] Output Format (Video) Output Format Get video out parameters Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"VideoOut":{"nChannel":-1}}} Set video out parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOut": {"nNetMode":2,"emVoutFormat":9,"byFormatList":[10,9,4,3,8,7,6,5,26,25,20,21,22,23,24]}}} Function Code Command Setting nNetMode: – HD output default value 2, do not – HD output + SD network modify it –...
  • Page 95 Network Network configure and port settings Network Configure Get network port parameters Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"NetWork":{"nChannel":-1}}} Set network port parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort": {"wPortSoap":1936,"wPortData":3000,"wPortWeb":80,"wPortRtsp":554,"wPortVisca": 1259,"wPortOnvif":2000,"wPortRtmp":1935}}}} You can also set one of these parameters like this: http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortSoap":1936}}}} Port Settings Function Code Command Setting Port Data wPortData [0, 65535] Port Web...
  • Page 96 Command Setting Preferred DNS Server http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns": {"szDns1":"8.8.8.8"}}}} Alternative DNS Server http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns": {"szDns2":"8.8.8.8"}}}} Get NDI parameters Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"NetWork":{"nChannel":-1}}} Set NDI parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNdi": {"szNdiName":"Avonic-82342","bNdiControlEnable":1,"bNdiEnable":1,"szNdiGroup":"public"}} Function code command setting Ndi Enable http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork": bNdiEnable 0: off 1: on {"stNdi":{"bNdiEnable":1}}}} Ndi Control http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork": bNdiControlEnable 0: off 1: on {"stNdi":{"bNdiControlEnable":1}}}}...
  • Page 97 Time SysTime Get system time parameters Code http://192.168.5.126/ajaxcom?szCmd={"QueryState":{"QuerySysTime":{}}} Set system time parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime": {"nDateSprtr":2,"nDateFormat":0,"nZone":1,"nHourType":0,"stNtp": {"bEnable":1,"nHostPort":123,"nUpdateInterval":2,"szHostUrl":"ntp4.aliyun.com"}}}} Function Code Command Setting Date Format http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime": nDateFormat 0: YYYY-MM-DD {"nDateFormat":0}}} 1: MM-DD-YYYY 2: DD-MM-YYYY Date Sprtr http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime": nDateSprtr 0: . {"nDateSprtr":0}}} 1: - 2: / Zone http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":...
  • Page 98 SysUser Set sysuser parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysUser":{"stUsers": [{"nUserType":0,"szUserName":"admin","szPassword":"admin"},{"nUserType":1,"szUserName":"user1","szPassword":"user1"}, {"nUserType":1,"szUserName":"user2","szPassword":"user2"}]}}} Function Code Command Setting Authority nUserType 0: admin 1: user1 or user 2 User Name szUserName user-defined: no white space Password szPassword user-defined, no white space. This command must set three users at the same time. Update Update Get update parameters...
  • Page 99 APPENDIX D - CMOS SENSOR CHARACTERISTICS The following occurrences that may appear in images are specific to CMOS (Complementary Metal Oxide Semiconductor) image sensors. They do not indicate malfunctions. White Flecks Although the CMOS image sensors are produced with high-precision technologies, fine white flecks may be generated on the screen in rare cases.
  • Page 100 APPENDIX E - DATASHEET (SPECIFICATIONS) SPECIFICATIONS CM70-NDI Camera Input / Output Interface Resolution HDMI output Up to 1080p60 Video Systems SDI output 1920x1080/ 1280x720 3G-SDI, SMPTE 425M level A, 10-bit YCbCr 4:2:2 p60/ 50/ 30/ 25/ 59.94/ 29.97 Sensor USB Output 1/3”...
  • Page 101 What settings are stored in Avonic camera presets? • How to give a DHCP IP address to a CM4x/CM7x • What ONVIF version and profile are used by Avonic? camera? • How to give a static IP Address to a CM4x/CM7x camera? Streaming •...
  • Page 102 Support articles NDI NDI Settings NDI Studio Tools • • NDI settings in CM70-NDI NDI tools overview • • NDI - Network Device Interface NDI KVM feature with NDI Screen Capture • • Do I need an additional license to enable NDI on my...
  • Page 103 Index AAE Mode (Aperture Auto Exposure) G.Limit (Gain Limit) 37, 60, AF Sensitivity 36, 61, 76, Gamma 41, AF Version 50, 62, AF Zone 36, 61, 76, Audio 32, Auto Exposure Mode H264 31, 33, 35, AWB Mode H265 AWB Sensitivity 40, 60, HDMI 23, 24, 46, 56, HTTP API HTTP Basic Authentication...
  • Page 104 PELCO-P 51, PoE 23, Zoom 55, Port Zoom Speed 52, 61, Power Preset 52, 56, 61, 77, 85, PTZ 31, 52, 56, 61, 76, Reboot 51, Reboot Schedule Reset IP configuration (IP Address, Gateway, DNS server) RG Tuning 40, 60, 67, 74, RJ45 RS-232 23, 24, 68, RS-485 23, 24, 25,...
