Installing Load
Sense Lines

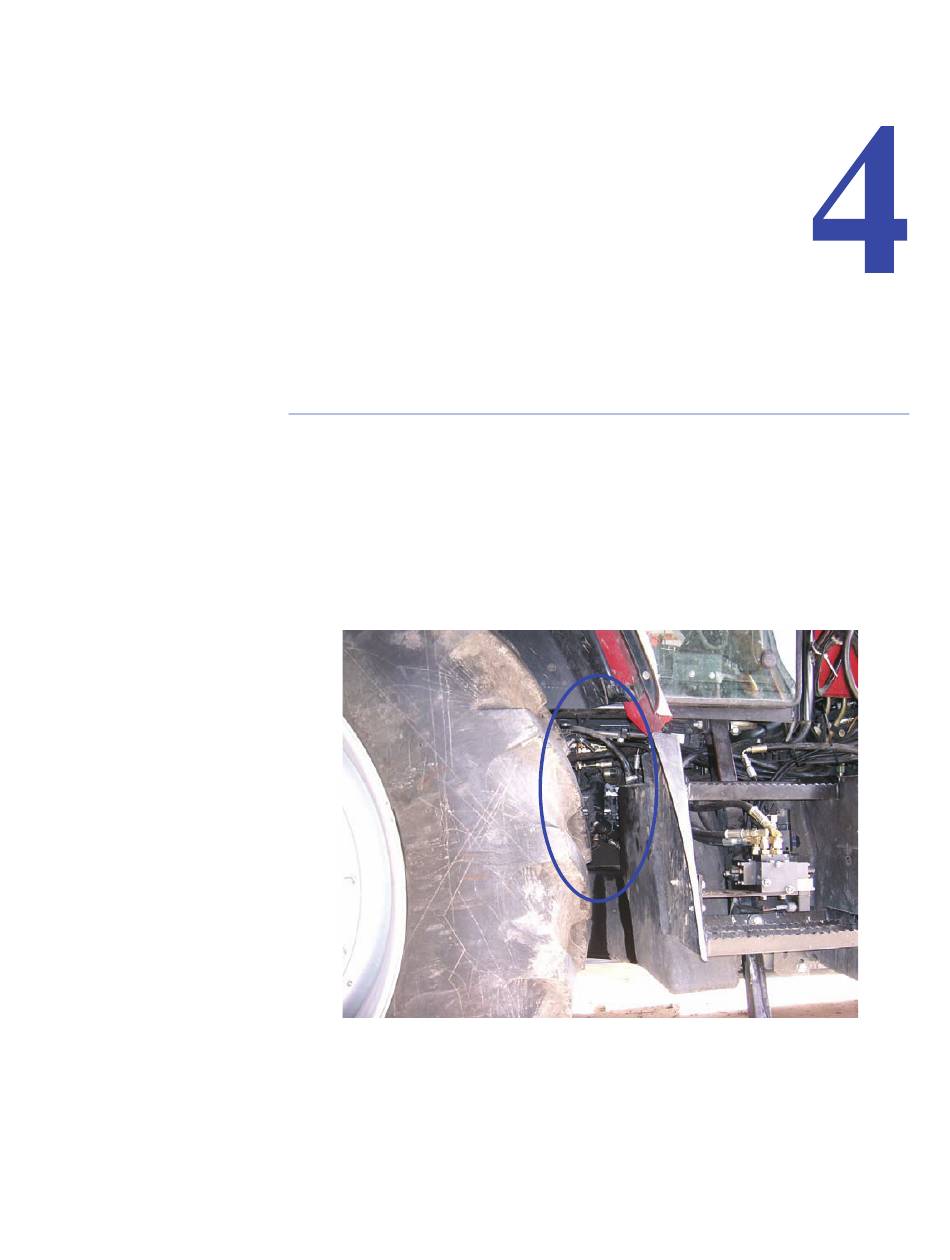

1. Remove the steering load sense line from the pump located on the right
side of the tractor, in front of the rear tire.
2. Trace the load sense line from the orbital back to be sure you have the
correct line. The orbital load sense line is the smallest of the 5 fittings
that are on the orbital and is located between two of the larger fittings.
