Raven SmarTrax Supplement Installation Manual page 12

CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual

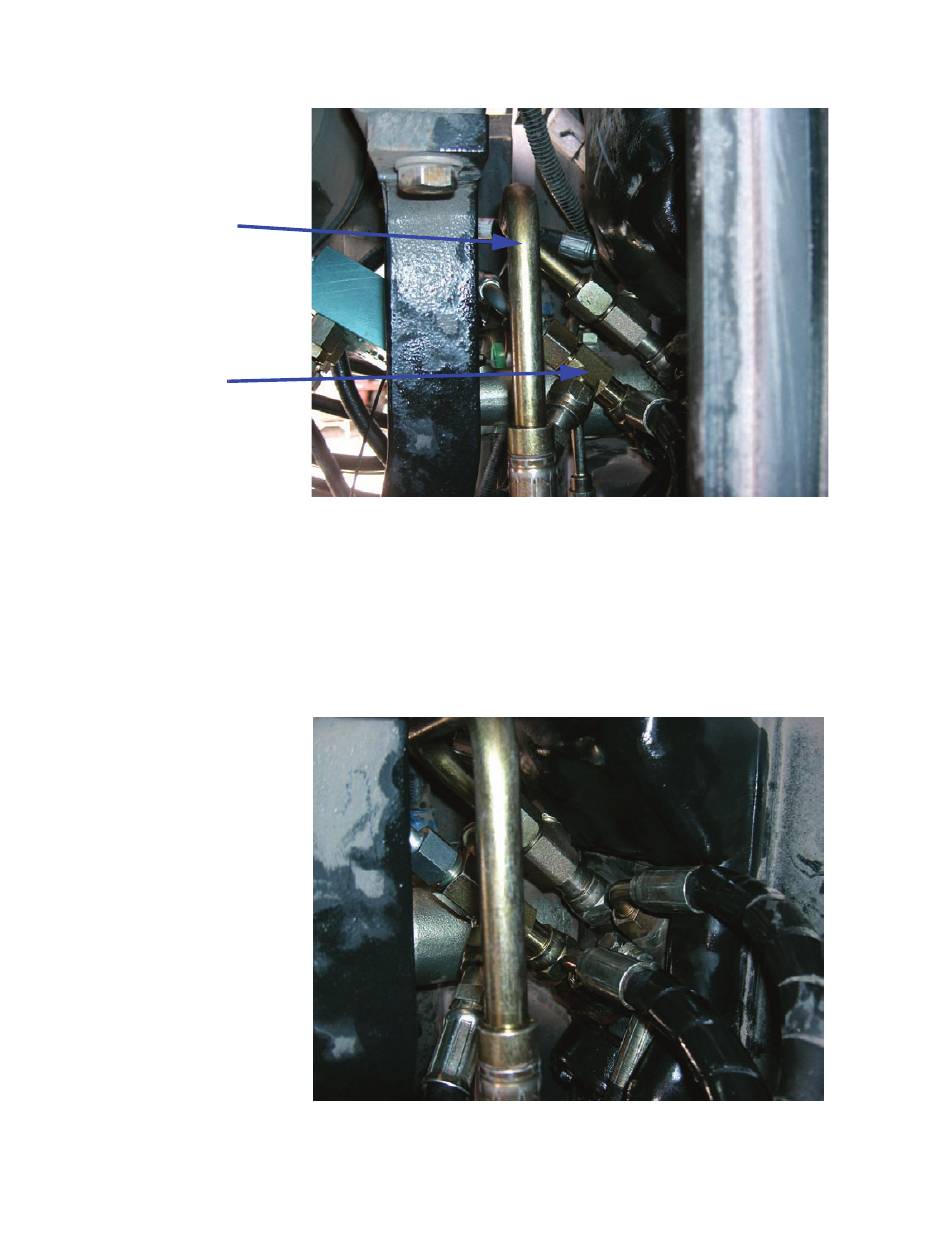

Tank Line
Pressure Line
1 0
7. Attach a supplied tee to the pressure port on the orbital.
8. Attach the original machine pressure line to the top of the tee fitting.
9. Using a supplied reducer and 90 degree fitting (if needed), attach the
hose (P/N 214-1000-445) to the tee.
10. Route the hose to the SmarTrax block and attach it to the "P" port using
a 90 degree fitting (if needed).
