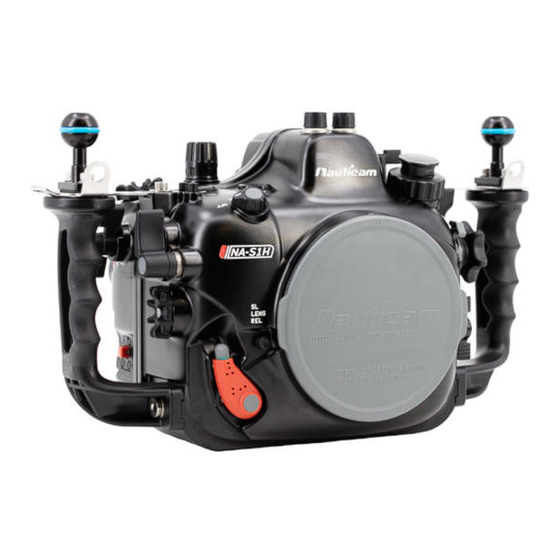

Summary of Contents for Nauticam NA-S1H

  • Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
  • Page 3: Table Of Contents

    ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Mounting the Port ……………………………………………………………………………………………… Changing the Viewfinder ……………………………………………………………………………………. Care and Maintenance ………………………………………………………………………………………. Optional Accessories …………………………………………………………………………………………..
  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
  • Page 5: Precautions

    O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage.
  • Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
  • Page 7: Package Contents

    ACKAGE ONTENTS • NA-S1H housing • M16 Vacuum Valve II (Pre-installed) • 2x Handles and Brackets • Spare 90222 Housing O-ring • O-ring Remover • 2x Optical Bulkhead Caps • CR2032 Battery (for vacuum system) • Lubricant • Set of Allen keys •...
  • Page 8: Specifications

    PECIFICATIONS Housing body: Aluminum alloy Construction Surface treatment: Hard anodized Display window: Abrasion resistant polycarbonate Width: 369mm Dimensions Height: 218mm Depth: 170mm Weight in air Approx. 3.9kg Weight in water -0.3kg (includes camera, battery AND DMW-FL70 flash) Depth rating 100 m Port mount N120 Compatible...
  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS Optical Bulkhead Port Alignment Index SL Lens Release Button EF Lens Release Button Fn1 Lever Port Lock Safety Button Fn2 Lever Port Lock Lever *Handles are not displayed...
  • Page 10 M28 Accessory Port Drive Lever Mode Dial Mounting Holes for Handle Brackets /M5&M10 Accessory Port DISP Lever Zoom/ Focus Gear Disengagement Lever Playback Lever Zoom/Focus Knob *Handles are not displayed...
  • Page 11 M14 Accessory Port M16 Vacuum Valve II On/Off Dial Exposure Button WB Button Mounting Holes for Handle Brackets /M5&M10 Accessory Port Main Command Dial Shutter Release Lever AF-ON Lever ISO Lever Movie-Record Lever Front Dial *Handles are not displayed...
  • Page 12 0.66x Viewfinder V.MODE Lever Focus Lever Flash Lever Focus Button LVF Lever Q Button Unlock Lever Menu/Set Button Multi-Selector Pad Housing Lock Cancel Button Moisture Alarm Window Delete Button *Handles are not displayed...
  • Page 13 Sacrificial Zinc Anode 1/4”-20UNC Tripod Socket x3* *The maximum length of screws that can be used with the tripod sockets is 4mm.
  • Page 14: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing: Always open and close the housing with the front facing down, place the housing on a flat surface or in your lap. The housing can be opened and closed by operating the two housing locks; when opening, press the safety buttons, then turn the locks outwards.
  • Page 15 To lock the housing: When closing, make sure there is nothing caught between the closing surfaces of the two halves of the housing. To close, turn the locks towards the housing, and then make sure they are locked in place securely.
  • Page 16: Preparation Of The Housing

    Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 17 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out. *Use only recommended battery with this product...
  • Page 18 2. Switch the alarm on. The LED 3. Test the alarm by connecting the light will flash blue once and turn two wires near the bottom of the blue for five seconds indicating housing with a damp cotton bud; the battery is normal. Then it the alarm should start giving out goes into flashing blue light a repeating “beep”...
  • Page 19 Vacuum valve: Vacuum valve is pre-install to the housing for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status Flash “Blue” light once Indicates a 2nd generation PCB Battery is normal, goes into flashing "Blue"...
  • Page 20 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
  • Page 21: Installing The Camera

    NSTALLING THE AMERA It is required to reset the vacuum system when the vacuum level is dropped from target level to totally lost. i.e. when opening the housing or changing port. To reset when changing port/lens: Release vacuum. Remove the port and lens from the housing and camera.
  • Page 22 To install the camera to the housing: 1. Turn the locking lever on the tray of the Pull out the right assembly (Red housing to the “open” position as circle) as shown. shown. Then remove the camera saddle from the housing by sliding it outwards.
  • Page 23 a. To use EF mount lenses with EF-L adapter, keep the small actuator to horizontal direction as shown. Tilt the LCD monitor of the camera To use L mount lenses, please upwards, then attach the saddle to the rotate the small actuator CCW camera by tightening the screw to the (red circle) as shown, it will let tripod socket of the camera.
  • Page 24 Connect • • When mount EF Lens When mount L Lens a. After mount the EF lens, push the right assembly inwards as shown, and check the actuators are correctly engaged with front lever of the camera and EF-L adapter. To use with EF mount lenses, mount EF-L adapter is required to install on camera prior to attach them on camera tray.
  • Page 25 Connect Lift and inwards the drive Turn on the camera and set it mode lever as show above. drive mode to “timer”...
  • Page 26 Connect Mount the camera by sliding the If installing the camera with lens and gear attached, first pull out attached saddle along the rail in the housing until it cannot go in any the zoom/focus knob and sit on the shallower groove as shown. further.
  • Page 27: Mounting The Port

    Connect OUNTING THE Please refer to the NAUTICAM system port chart for a range of compatible ports: 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove.
  • Page 28 Connect 4. Turn the port locking lever to the release position as shown. Lift housing cap.
  • Page 29 Connect 6. Align the Port mounting indicates of 8. Lock the port into place by turning the the port and the housing. port locking lever to the inward position. To ensure that the port is 7. Gently push the port into the port securely mounted, confirm that the opening of the housing, until it cannot green line on the safety button of the...
  • Page 30: Changing The Viewfinder

    Connect HANGING THE IEWFINDER In order that user can change to a preferred viewfinder easily, the 0.66x viewfinder which comes with the housing is designed so that it can be removed and re-installed by the following simple steps described below. To remove the viewfinder: Push 2.
  • Page 31 Connect To re-install the viewfinder: Lightly coat the O-rings on the outer periphery of the viewfinder body with lubricant. 2. Push the viewfinder from the 1. Align the viewfinder with the sleeve outside of the housing until it in the display window. cannot go in any further.
  • Page 32: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our...
  • Page 33: Optional Accessories

    Nauticam 180˚ straight Nauticam 45˚ viewfinder viewfinder P.N. 25218 P.N. 28130 P.N. 17922 Hand Strap for 28113 Nauticam Atomos Ninja V housing Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3) (HDMI 2.0) for Atomos Ninja V 5” 4Kp60 4:4:2 10-bit Recorder/Monitor/Player...
  • Page 34 P.N. 17909N P.N. 25078 P.N. 17951 Nauticam Atomos Flame Housing M28A1R225-M28A1R170 HDMI Nauticam Atomos Shogun (with HDMI 2.0 input) 2.0 Cable housing mounting system for Atomos Ninja (for NA-BMPCCII/S1R to Flame/Shogun Flame/Shogun Inferno 7'' 10- use with Ninja V housing)
