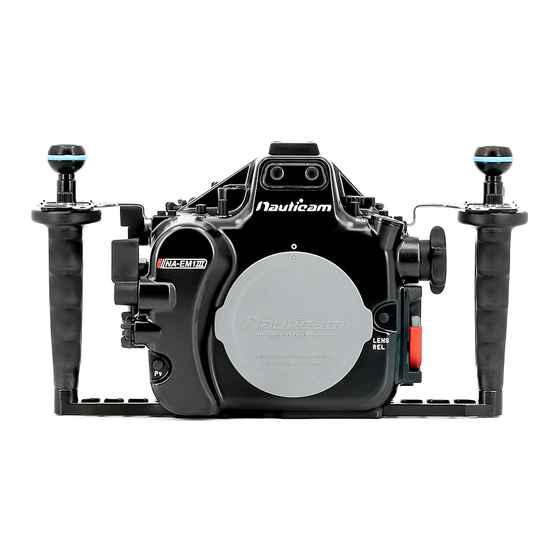

NA - EM1III For Olympus OM-D E-M1III Camera PN 17817 User Manual Housing M4/3-MIL Introduction Package Contents Important Instructions Part Names and Functions Opening the housing Closing the housing Preparation for Use Care/Storage Warranty Specifications... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-EM1III Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Flash on/off lever Menu button LV button 0.66x viewfinder Moisture alarm window REC button ISO button Housing unlock button FN lever Arrow pad - up Arrow pad - right Info button Playback button Arrow pad - down Erase button Arrow pad - left Multi selector... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views Sequential shooting/ M16 Accessory port self-timer/flash) button AF/metering mode button Main switch M14 Accessory port +/- button Mode dial lock release M10 thread hole Rear dial Mode dial Accessory mounting ball Preview button Optical fiber mount Lens release button...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views Zinc Anodes 1/4” Threaded tripod holes Zoom/Focus knob Port lock safety button Port lock lever AE-L/AF-L lever Shutter release lever Housing unlock button Front dial...
-
Page 7: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti- clockwise to open the housing flip open the back housing when lock latch is aligned to ‘open’ position... -
Page 8: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only Housing Lock - Lock before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock... -
Page 9: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * lift up the ON/OFF lever each time before installing the camera, also pull out the zoom/focus knob if installing the camera with lens and... - Page 10 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress port lock safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 11 PREPARATION FOR USE Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 12 PREPARATION FOR USE Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation film click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will flash in dampened cotton bud;...
-
Page 13: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 14: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 15: Specifications
SPECIFICATIONS Construction Wet Lens Compatibility 81301 Compact macro convertor 1 Housing body Hard Anodized Aluminium Alloy Macro (CMC-1, 4.5x magnification) Display window Abrasion Resistant Polycarbonate 81302 Compact macro convertor 2 (CMC-2, 2.8x magnification) 81201 Super macro convertor 1 Dimensions (SMC-1, 2.3x magnification) Width 305 mm 86201... - Page 16 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
