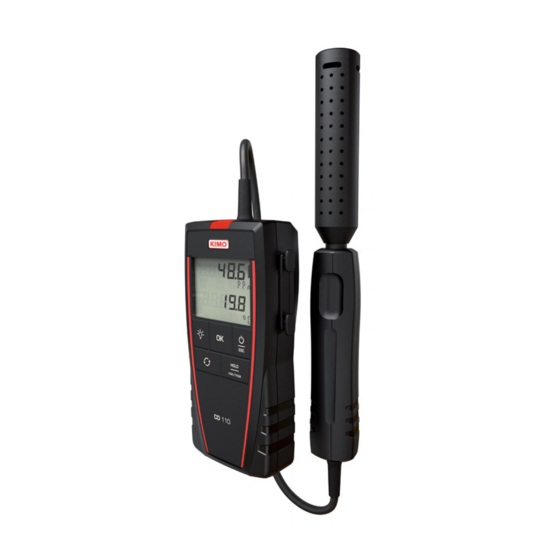

Kimo CO 110 User Manual

DESCRIPTION OF THE DEVICE

Backlight key
Select key

PERFORM A MEASUREMENT

Turn on the device by pressing on "On/Off/Esc".
➢
The device displays its name "CO 110" then performs an autozero during 5 seconds.
The probe must be left to the open-air during this autozero.
Put the probe to the required location.
➢
The device displays the CO and temperature measurements.

FREEZE THE MEASUREMENT

During the measurement:
Press "Hold/min/max" to freeze the measurement.
➢
"Hold" appears on the screen and the measurements are frozen.
Press "On/Off/Esc" to exit the hold function.
➢
The device returns to the measurements display.

DISPLAY THE MINIMUM AND THE MAXIMUM

Once the measurements are frozen:
Press "Hold/min/max".
➢
The device displays the maximum value of CO measured since the last questioning at the top of the screen and the minimum value of CO
measured since the last questioning at the bottom of the screen.
Press again "Hold/min/max".
➢
The device displays the maximum value of temperature measured since the last questioning at the top of the screen and the minimum value
of temperature measured since the last questioning at the bottom of the screen.
Press "On/Off/Esc" to return to the measurements display.
➢
COmeter
CO 110
OK key
On/Off/Esc key
Hold/min/max key
