Reassembly

Check all mating surfaces. Replace any parts that have
scratches or burrs that could cause leakage. Clean all metal
parts in clean solvent. Blow dry with air. Do not wipe dry
with cloth or paper towel because lint or other matter can
get in the hydraulic system and cause damage. Do not use
a coarse grit or try to file or grind these parts. Check around
the keyway and chamfered area of the shaft for burrs, nicks
or sharp edges that can damage the seals when reassem-
bling the bearing housing.
Lubricate all seals (prior to installation) with petro-
N Noee:
leum jelly such as Vaseline. Use new seals when
reassembling this motor. Refer to parts list (6-129) for
proper seal kit number.

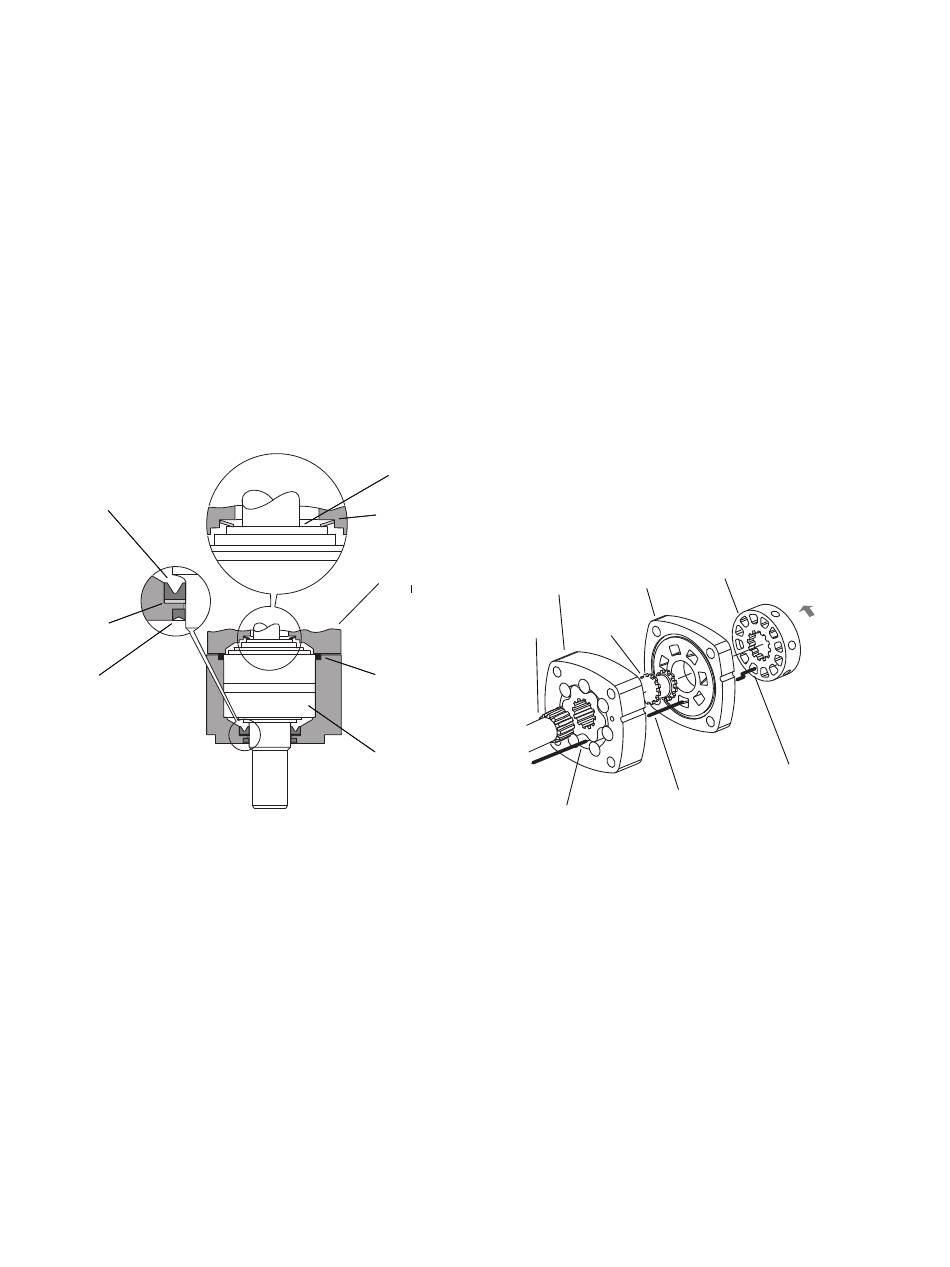

21. Use a press to install exclusion seal in outer bore of
bearing housing. Lip of seal must face outward. See
Figure 11. If a press is not available use a plastic or
rubber hammer, being careful not to damage or cock
seal in the bore.
Shaft Seal
Back-up
Washer
Exclusion
Seal
Figure 11 .
22. Place back-up washer into seal bore. Place shaft seal
onto installation tool (600496) and press seal into
seal bore of the housing.
23. Clamp housing in vise, see Figure 1.
24. Place protective bullet (see note below) over shaft.
Apply petroleum jelly to inside diameter of dust and
shaft seal. You may need a press to install shaft and
bearing assembly. Do not distort shaft seal. Damage
to this seal will cause leakage.
Note: Bullet (600465), for 1inch dia. shafts,
N Noee:
available — by special order. Use tape over other
shafts to prevent cutting the seals.
25. Apply petroleum jelly to the 76,0 [3.00] diameter seal.
Install seal into the bearing housing.
26. Alignment studs can be very helpful in reassembly
of the motor. See special tool listing page 2. If you
use studs, install 2 studs diagonally opposed in the
Shaft Face
Shaft Face
Seal
Wear Plate
Seal
Shaft and
Bearing
Assembly
2000 SerieS diSc valve geroler motor
2000 Series Disc Valve Motors
bearing housing.
27. Install the shaft face seal in the wear plate as shown
in Figure 11. Do not distort seal.
28. Install the wear plate, see Figure 11.
29. Apply a light film of petroleum jelly to the 76,0 [3.00]
diameter seal and install seal in the wear plate.
30. Install the drive into the output shaft.
31. Align the notch on the outside of the Geroler with the
notch on the wear plate. Install the Geroler against
the wear plate. Be sure to retain the rollers in the
outer ring if they are loose.
32. Install the valve drive in the Geroler.
N Noee: Installation at this time involves 3 steps in the timing
of the motor. Timing determines the direction of rota-
tion of the output shaft.
Timing parts include:
1. Geroler
2. Valve Drive
3. Valve Plate
4. Valve
Valve Plate
Geroler
Valve
Drive
Drive
Alignment
Largest
Ref. Only
Open Pocket
Figure 12 . Timing alignmeno
Timing Soep # 1 — Locate the largest open pocket in the
Geroler and mark it on the outside edge of the Geroler.
33. Apply a light film of petroleum jelly to the 76,0 [3.00]
diameter seal. Install seal in groove of valve plate.
C-MOLO-TM010-E1 June 2018 www.eaton.com
Valve
Rotate
Valve
Clockwise
1/2 tooth max.
to Engage Spline
Anyone of
6 Ports Open
to Ouside of Vave
