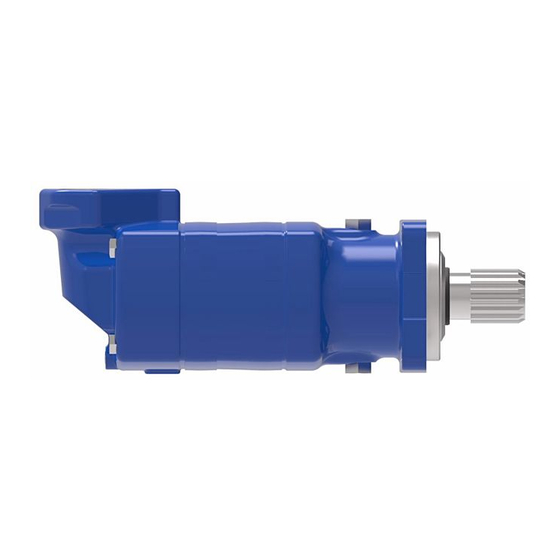

Summary of Contents for Eaton Char-Lynn 10000 Series

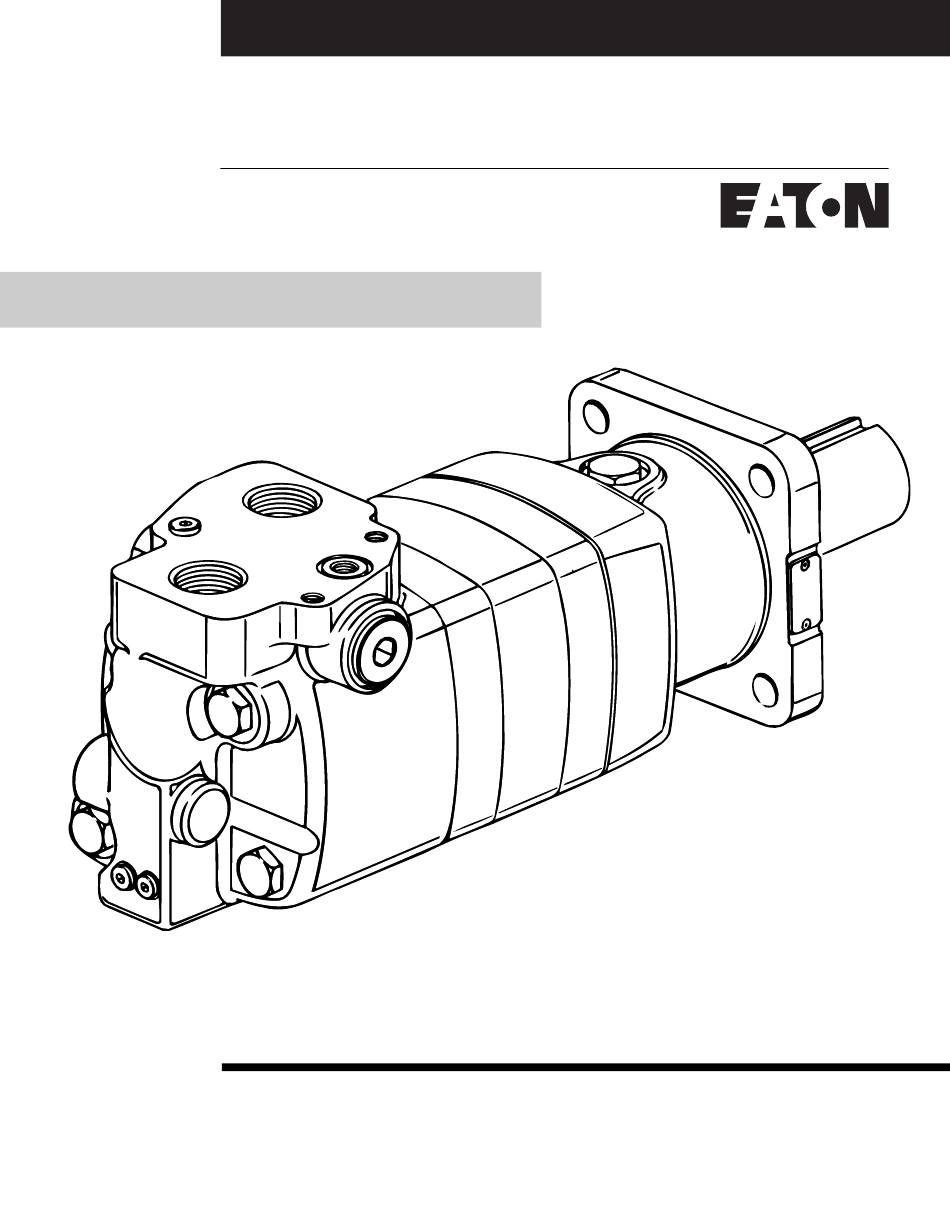

- Page 1 Char-Lynn ® October, 1997 Hydraulic Motor Repair Information 10 000 Series Geroler — ®...
- Page 2 Retainer inside bore of valve plate bearingless motors only Parts Drawing Note 1 1bbb Note 1: Do Not use spacer with current replacement shafts (Ref. No. 1). Motors with this shaft spacer (6171-000) will still have to be reassembled with spacer unless the shaft was damaged and must be replaced.
- Page 3 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Tools Required: - Torque Wrench, 165 Nm [120 lb-ft] * capacity - 15/16, 1, and 1–1/4 inch sockets - 5/32, 3/16, 5/16, and 5/8 inch hex keys - 300 mm to 450 mm [12 to 16 inch] breaker bar - Small blade screwdriver, 150 to 200 mm [6 to 8 inch] long - Plastic or rubber hammer Special Tools:...
- Page 4 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Disassembly Valve Housing Spring (4) Valve Valve Plate Balance Ring/Pins (2) A, C, E, Back-up Ring B, C, F, O-ring Figure 4 6 Remove the balance ring and four balance ring springs. The balance ring fits into the valve housing tightly.
- Page 5 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Disassembly Valve 14 Remove the Geroler. Be sure to keep the Geroler star and rollers within the outer ring if they are loose. 15 Remove the 108 mm [4.25 in.] seal and 9,5 mm [.375 in.] o-ring from each side of the Geroler.
- Page 6 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Disassembly 24 Remove the eight cap screws that hold the retainer to the bearing housing. 19 Remove the 108 mm [4.25 in.] seal and 9,5 mm [.375 in.] o-ring Dust Back-up from the bearing housing.
- Page 7 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Reassembly Dust Seal Back-up Washer O-ring Quad Ring Seal Retainer Check all mating surfaces and replace any parts with scratches or burrs that could cause leakage. Wash all metal parts in clean solvent and blow them dry with compressed air.
- Page 8 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Reassembly Case Drain Drive Spacer Wear O-ring Plate Seal Thrust Washer Thrust Bearing Plug/O-ring Plug/O-ring Case Drain Figure 18 Figure 17 47 Put the rear thrust washer and rear thrust bearing into the recess in the wear plate.
- Page 9 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Timing Step #2 Locate the open slot in the valve plate that is in line Reassembly with the largest open pocket in the Geroler. 49 Install the splined drive. Note: On smaller displacement motors the splined ends of the drive are different lengths.
- Page 10 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Reassembly 64 Apply petroleum jelly to the 108mm [4.25 in.] seal and 9,5 mm [.375 in.] o-ring. Install each in the appropriate groove in the valve 59 Install the case drain plug in the bottom of the valve housing. Use housing.
- Page 11 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed Reassembly Pipe Plug Seal Plug Assembly Ball, Check Spring Ball, Check Seal Ball, Plug Mounting Flange/Wear Plate Figure 29 Bearingless Motor Bearingless motors are the same as standard motors without the shaft/ bearing assembly, and thrust bearings.
- Page 12 Disc Valve Hydraulic Motor 10 000 Series Geroler Motors—Two Speed For Additional Literature Contact Eaton Corp. Hydraulics Date Code Char-Lynn Division 15151 Highway 5 Eden Prairie, MN 55344. ® 00 0 Product number Specifications and performance Data, Catalog No. 11-878...
- Page 13 Shanghai 200021 Tel: +41 (0) 21 811 4600 China Tel: 952-937-9800 Tel: 86-21-6387-9988 Fax: 952-294-7722 Fax: +41 (0) 21 811 4601 Fax: 86-21-6335-3912 www.eaton.com/hydraulics © 2008 Eaton Corporation All Rights Reserved Printed in USA Document No. C-MOLO-TS008-E Supersedes 07-132 November 2008...
