Switching To The Navigation Mode/Docking Mode/Custom Mode - JRC JAN-7202 Instruction Manual

On top screen (1), the mode can be switched to any of the three modes of Navigation mode, Docking
mode, and Custom mode by using the display mode switching tabs (refer to "4.1.1 Switching to the
Navigation mode/Docking mode/Custom mode").

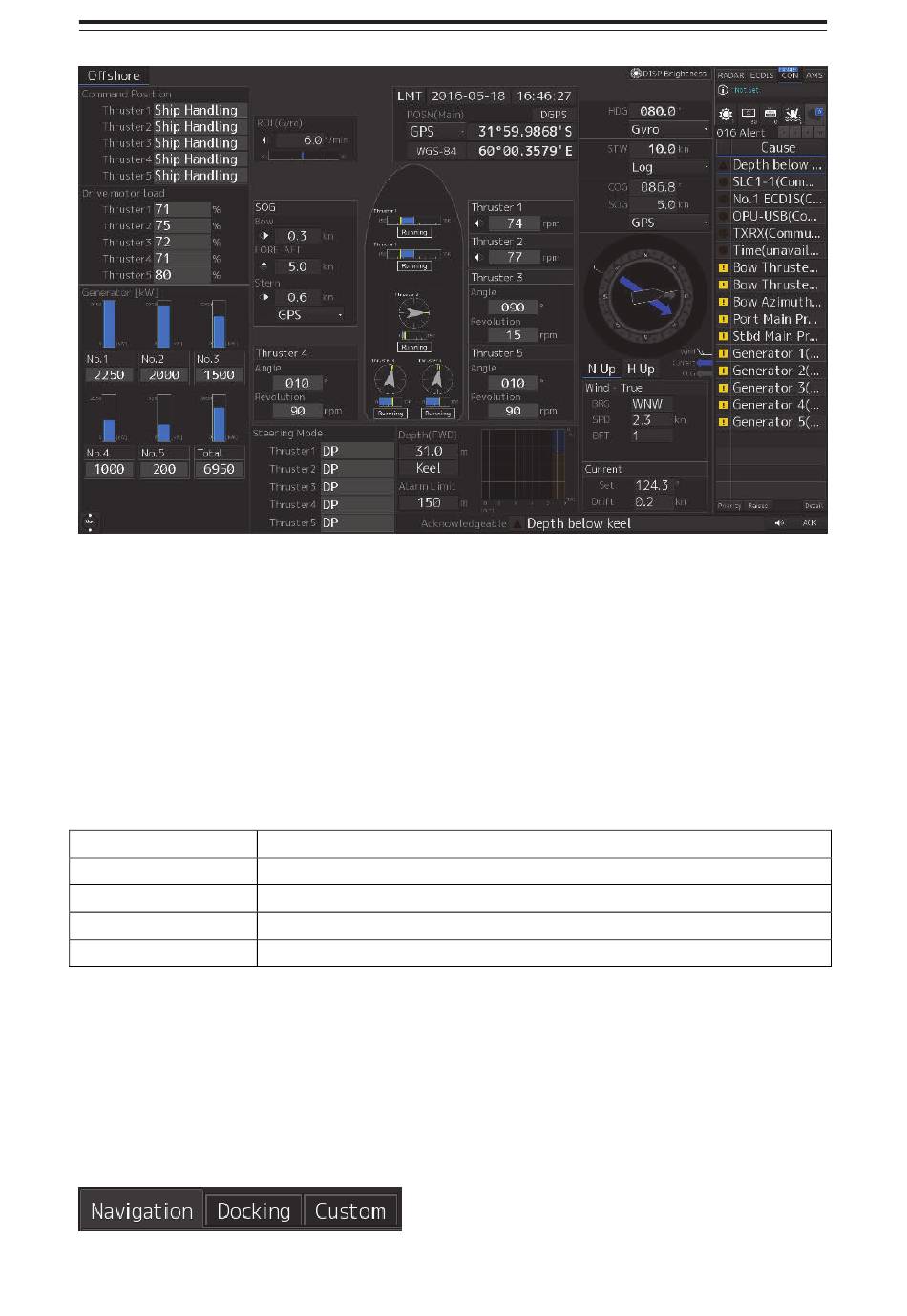

On top screen (2), the mode is fixed to Offshore mode. Unlike top screen (1), a green color that
indicates the starboard/forward direction and a red color that indicates the port/backward direction are
not used.
The following information is displayed in each display mode.
Display mode
Navigation mode
Docking mode
Custom mode
Offshore mode
4.1.1 Switching to the Navigation mode/Docking
mode/Custom mode
By using any of the display mode switching tabs at the top left side of the top screen, switching to any
of the three display modes is enabled.
The selected mode is highlighted.
Chapter 4 Conning Display
Top screen (2)
Information on the status of the ship that is navigating
Information on the status of the ship that is docking
Information that is arbitrarily selected to be displayed on the Custom screen
Information required for offshore working ships
Information that is displayed
