2.4.10 Configure the Sensor Configuration Parameters

The door sensor (pins 5 and 6) on the header can be used to monitor a door's open or closed state.
There is an option on the Sensor page to trigger on an open or short condition on these pins. The
door sensor alarm will be activated when the Door Open Timeout parameter has been met.
The intrusion sensor is an optical sensor installed on the Intercom board and will be activated when
the Intercom is removed from the case.
Each sensor can trigger up to five different actions:
•
•
•
Note
1. Click Sensor menu button to open the Sensor page
Operations Guide
Activate the relay until the sensor is deactivated
Loop an audio file out of the Intercom speaker until the sensor is deactivated
Call an extension and play a pre-recorded audio file
Calling a preset extension can be set up as a point-to-point call, but currently can't send
delayed DTMF tones.

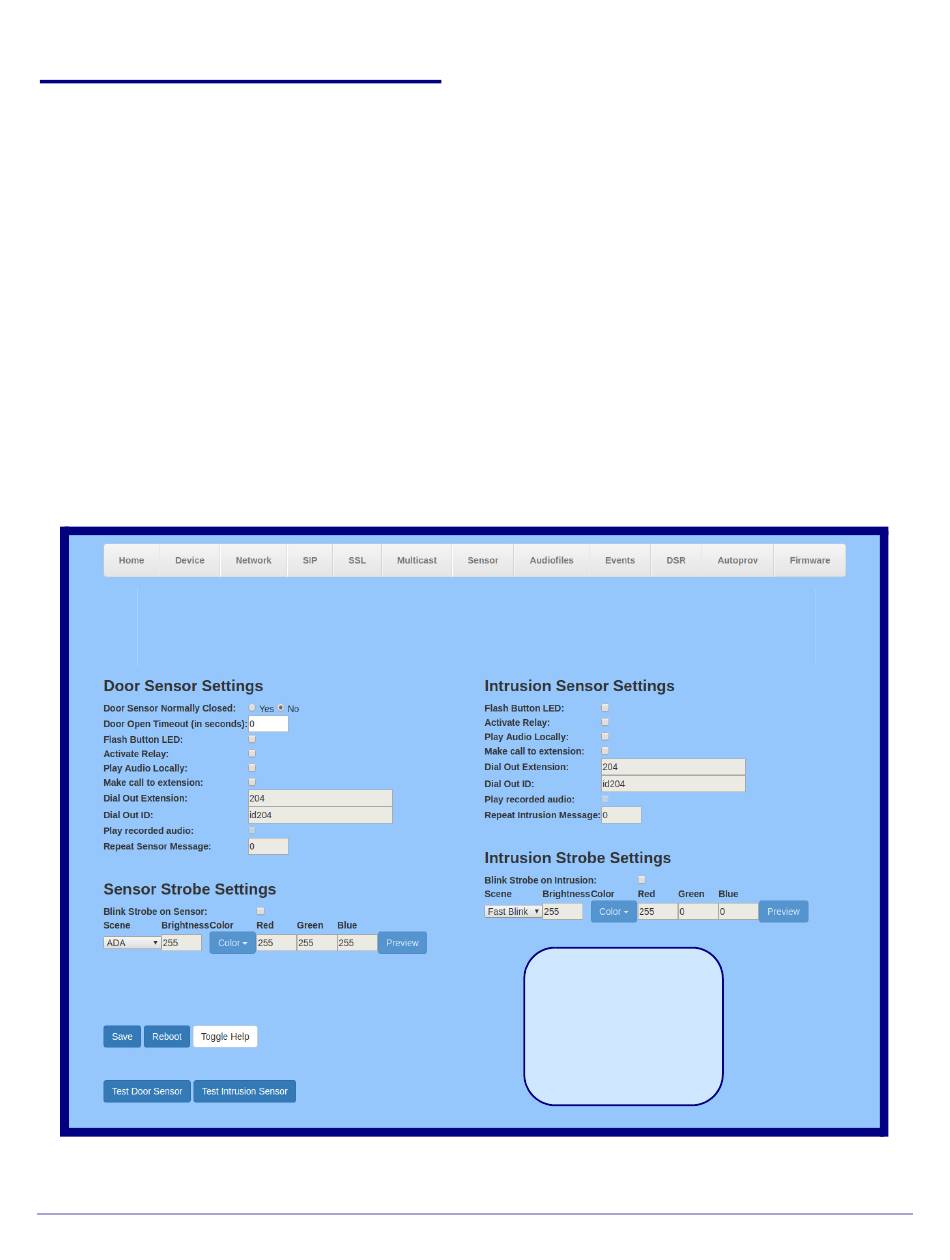

Figure 2-29. Sensor Configuration Page
Singlewire Office Ringer
Installing the Singlewire InformaCast Office Ringer
Connecting an Auxiliary RGB Strobe to the Device
(Figure
The strobe settings will only
appear if a CyberData Strobe
product is connected to your
device.
If a CyberData Strobe product
is not connected to your
device, you will not see the
strobe settings.
931645A
2-29).
