2.2.3.3 Network Dual Door Strike Relay Wiring Diagram Using PoE+

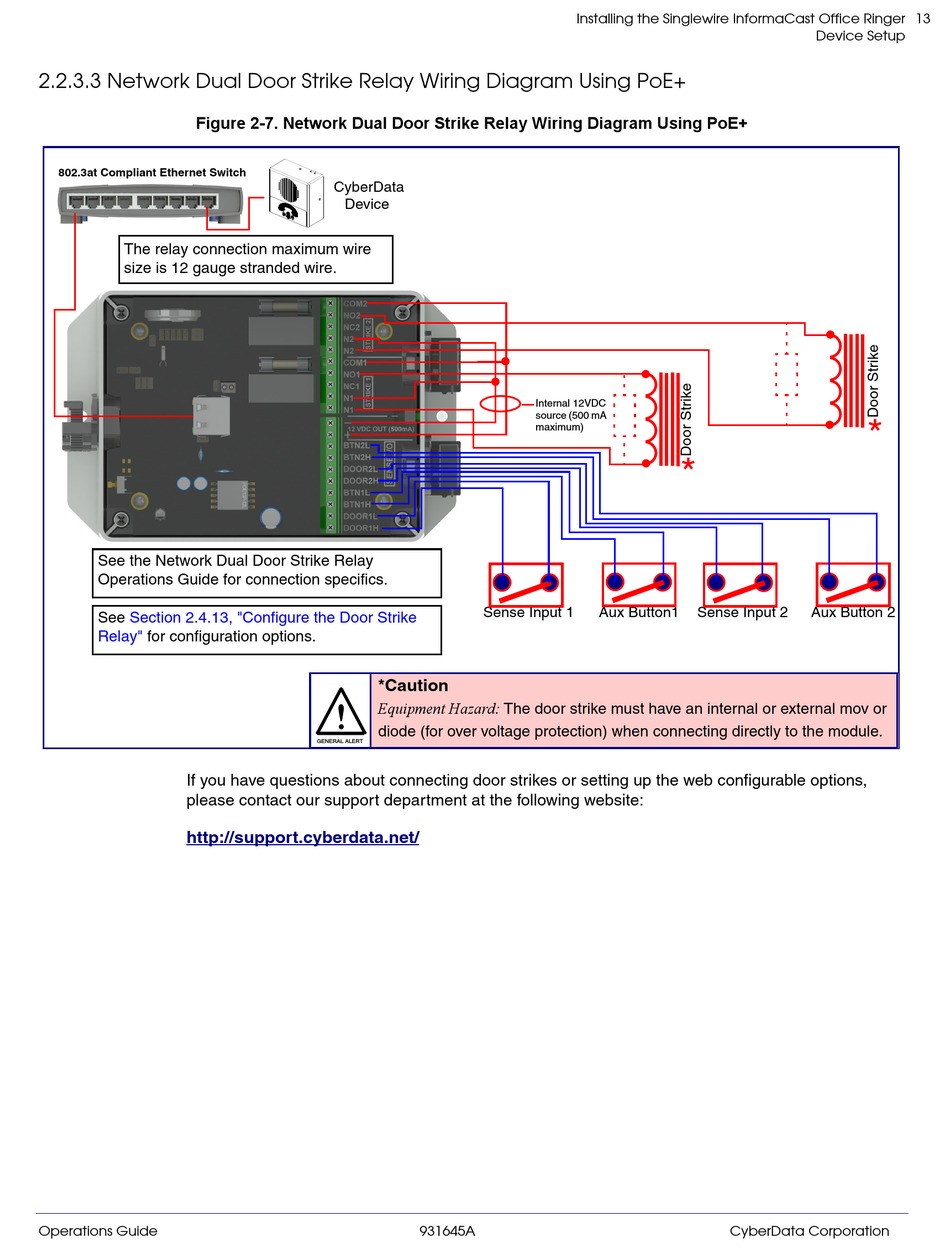

Figure 2-7. Network Dual Door Strike Relay Wiring Diagram Using PoE+
802.3at Compliant Ethernet Switch
The relay connection maximum wire
size is 12 gauge stranded wire.
See the Network Dual Door Strike Relay 
Operations Guide for connection specifics.
See Section 2.4.13, "Configure the Door Strike
Relay" for configuration options.
If you have questions about connecting door strikes or setting up the web configurable options,
please contact our support department at the following website:
http://support.cyberdata.net/
Operations Guide
CyberData
Device
Sense Input 1
*Caution
Equipment Hazard: The door strike must have an internal or external mov or
diode (for over voltage protection) when connecting directly to the module.
GENERAL ALERT
931645A
Installing the Singlewire InformaCast Office Ringer
Internal 12VDC
source (500 mA
maximum)
*
Aux Button1 Sense Input 2
Device Setup
*
Aux Button 2
